"Earnest" Repaint 2022/23
Index | Planning | Fabrication of the steelwork | Fitting out | Paintwork | Launch

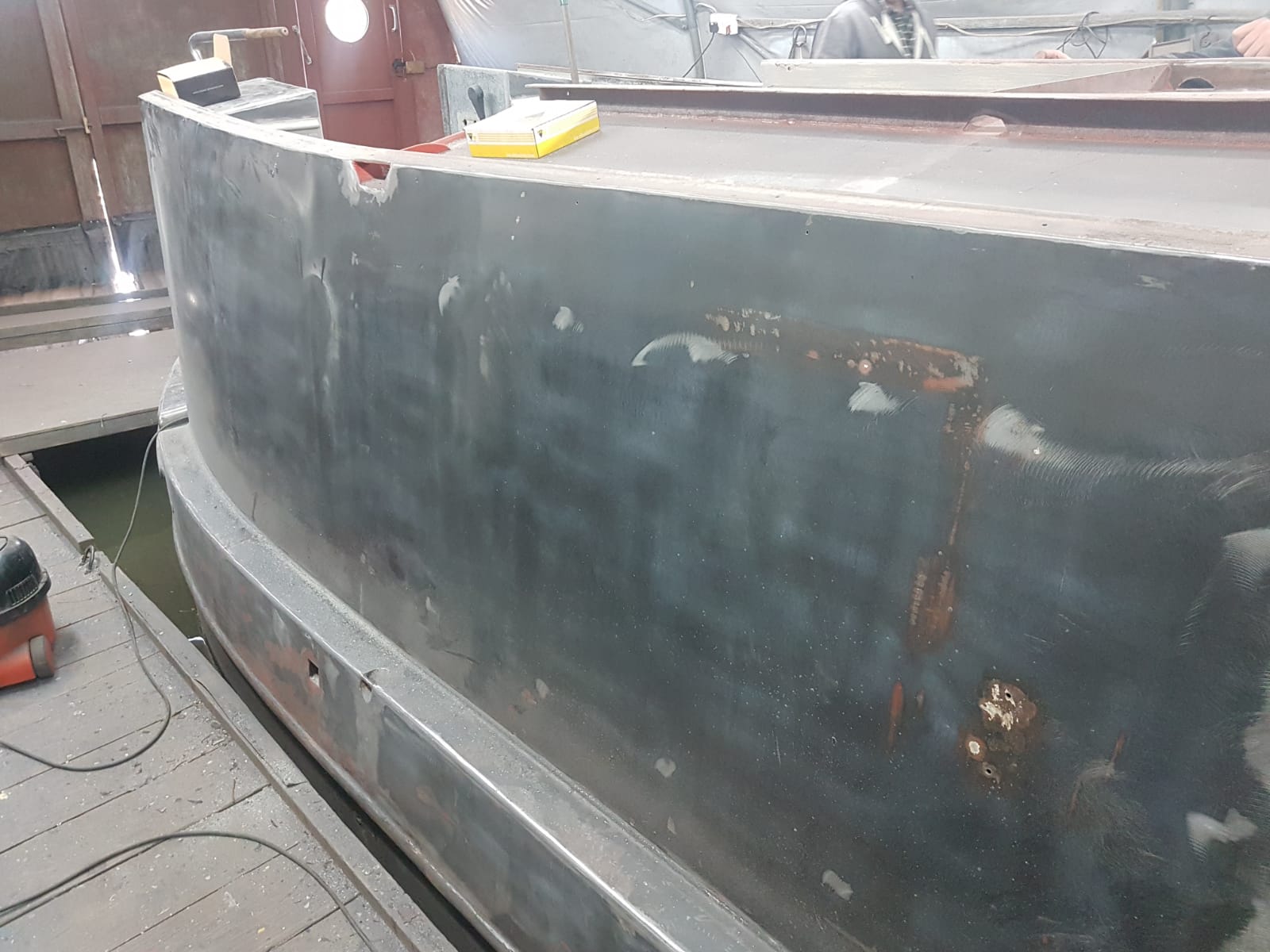

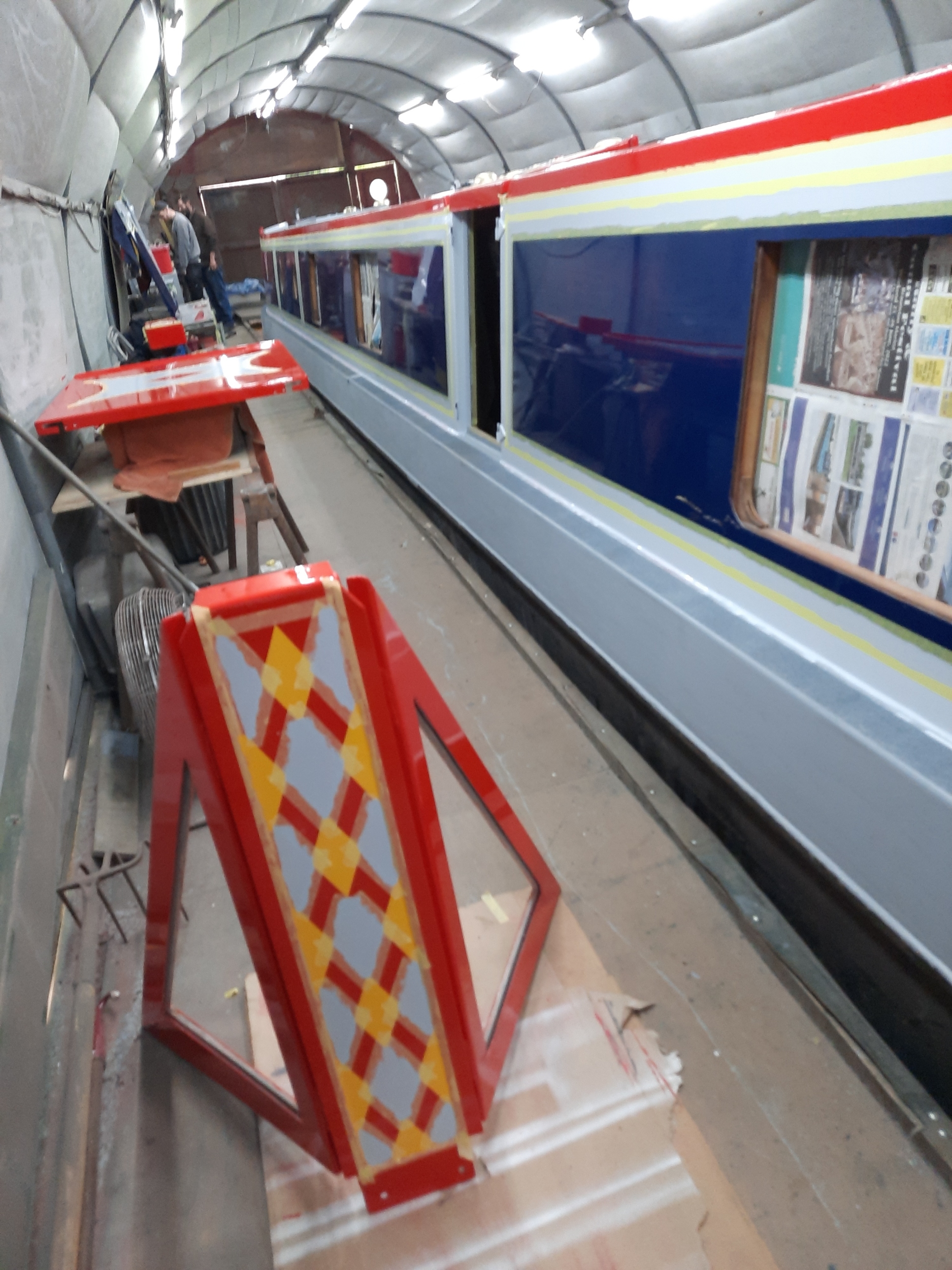

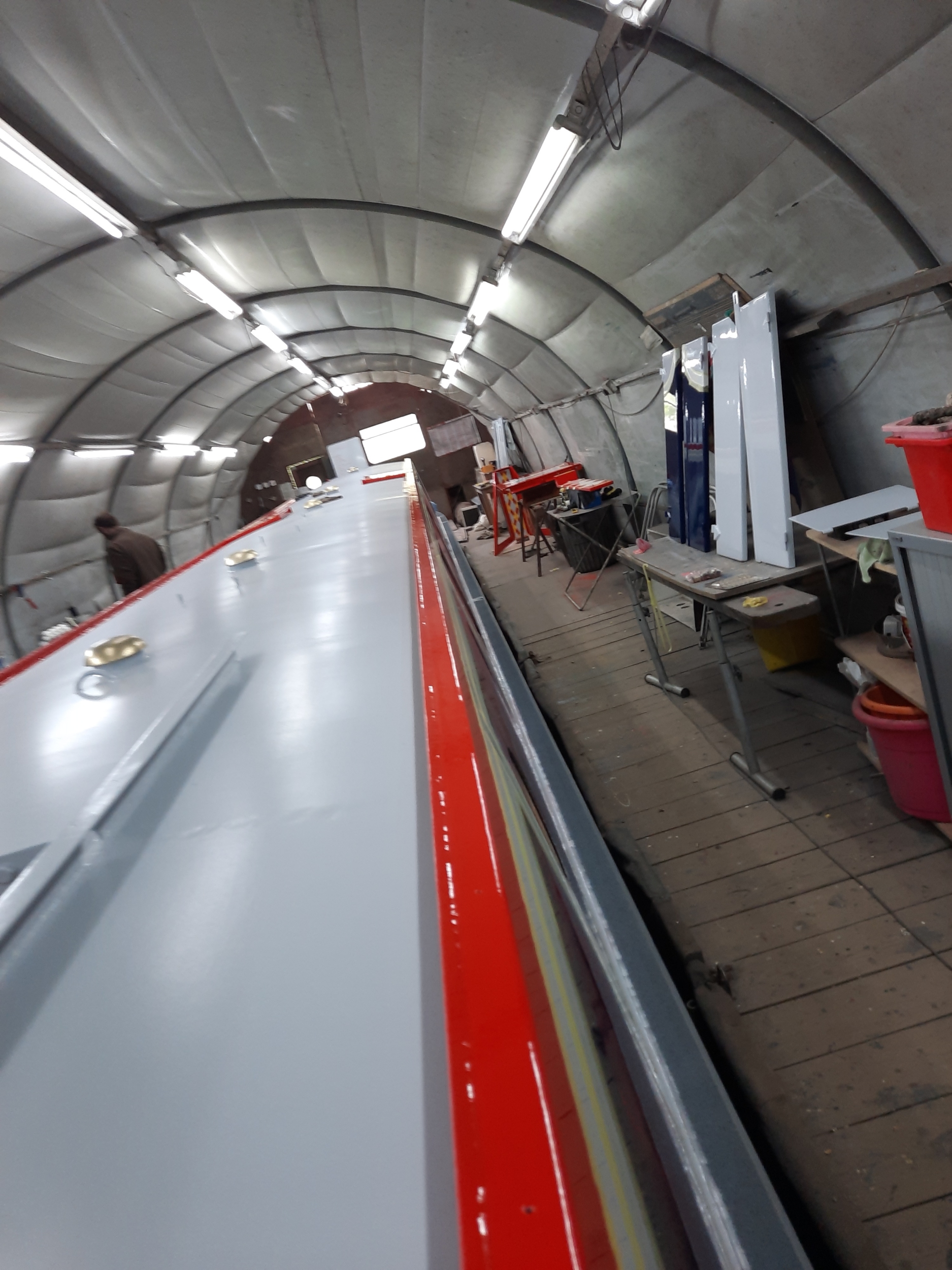

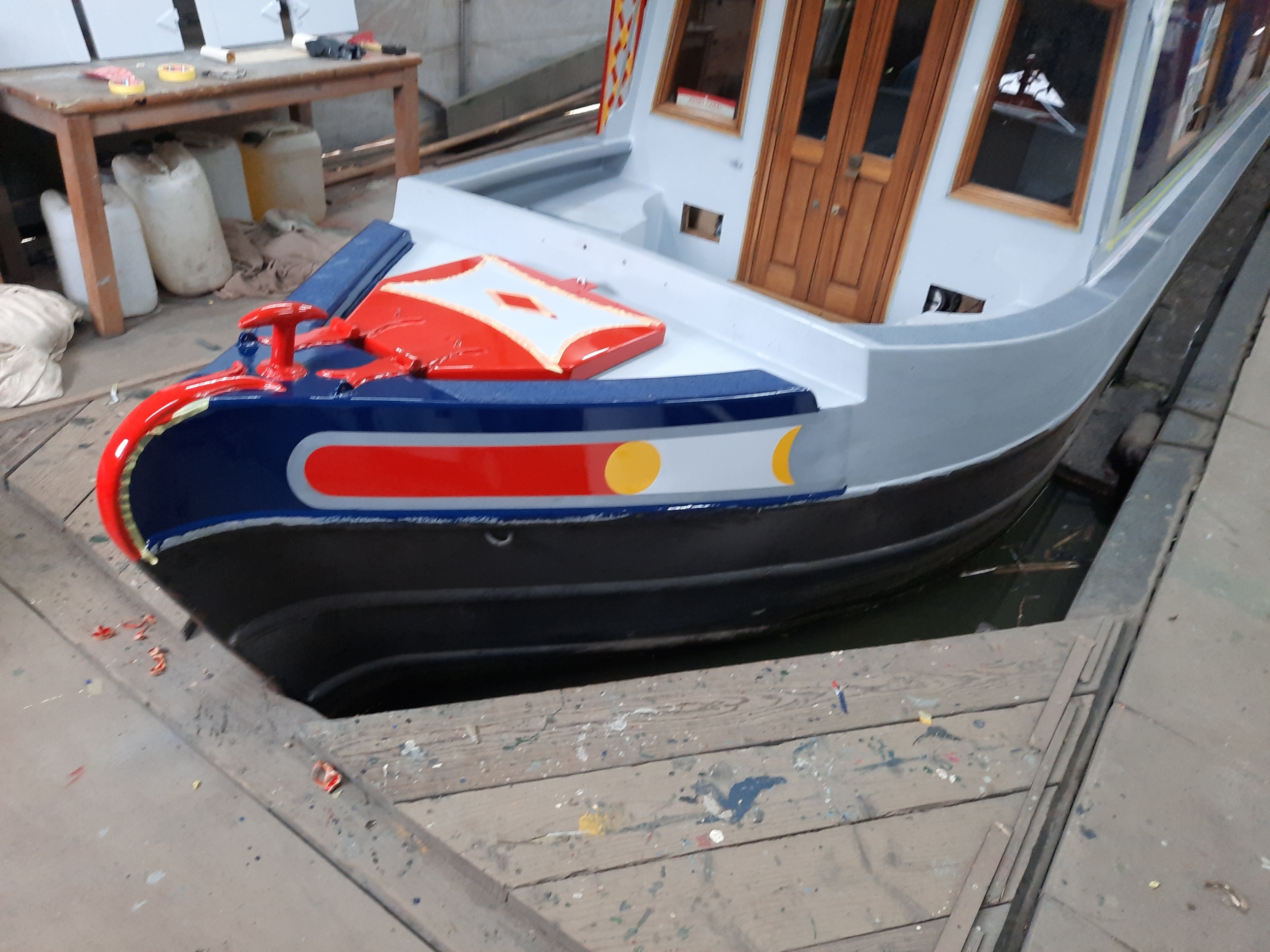

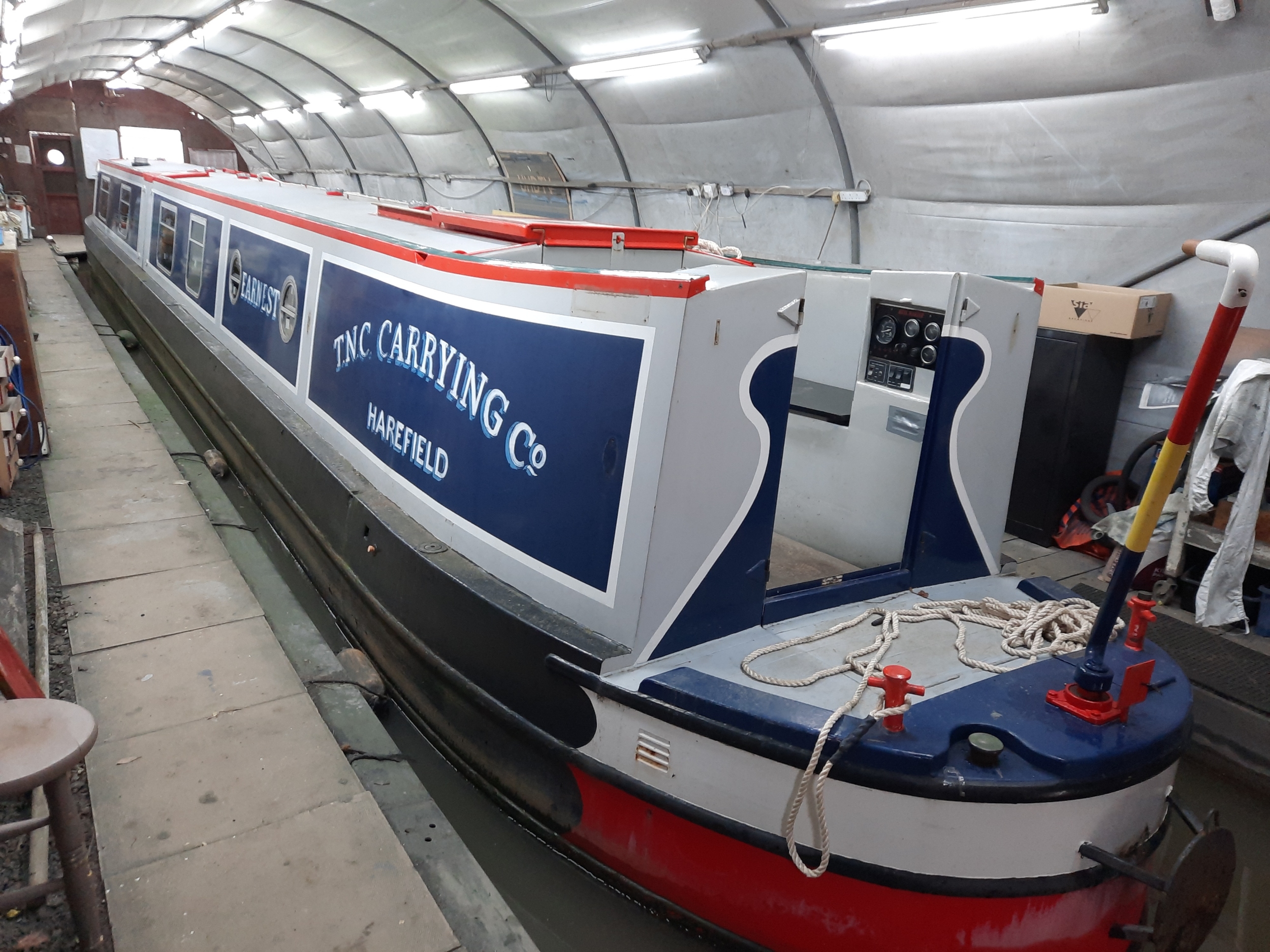

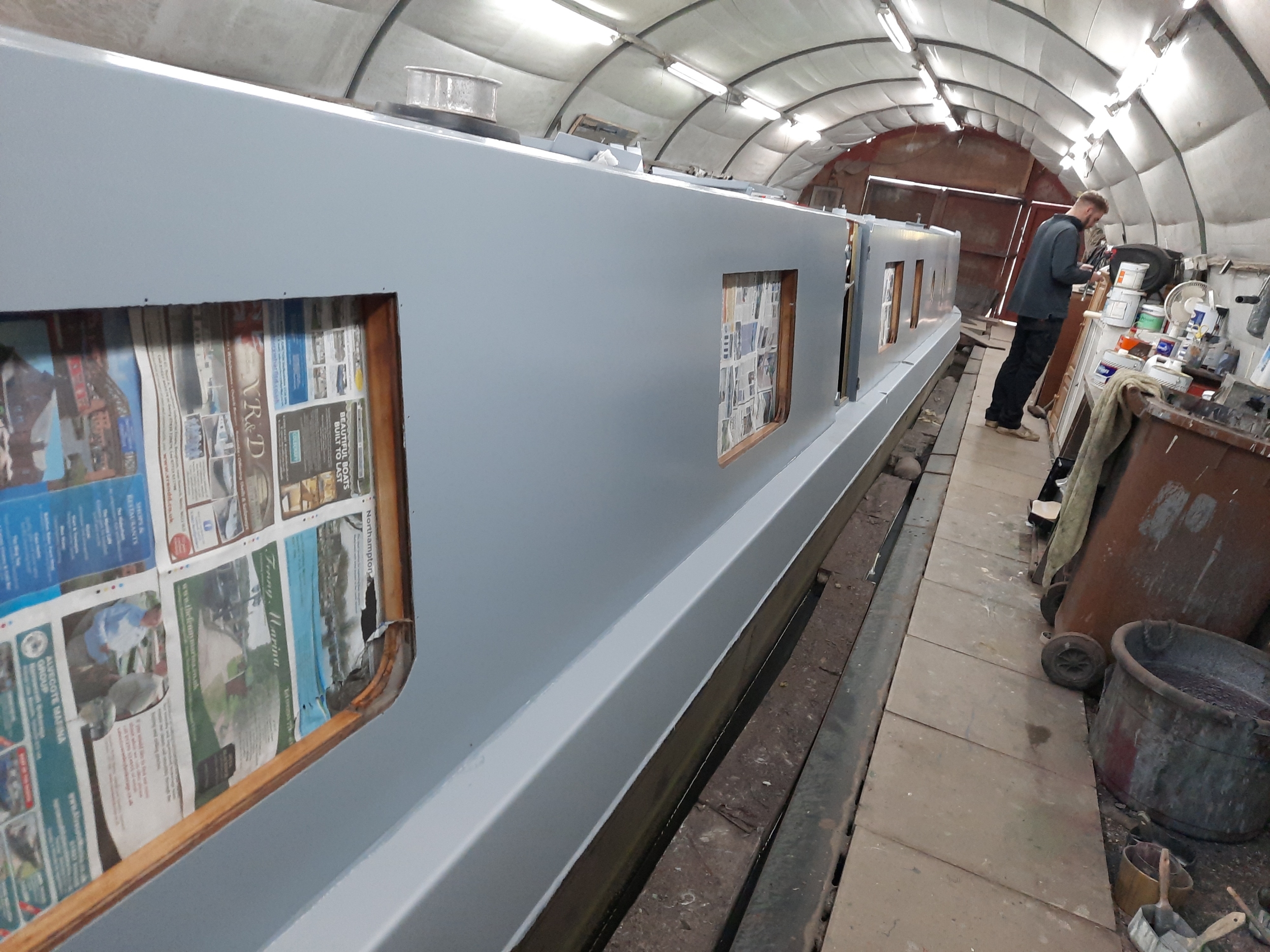

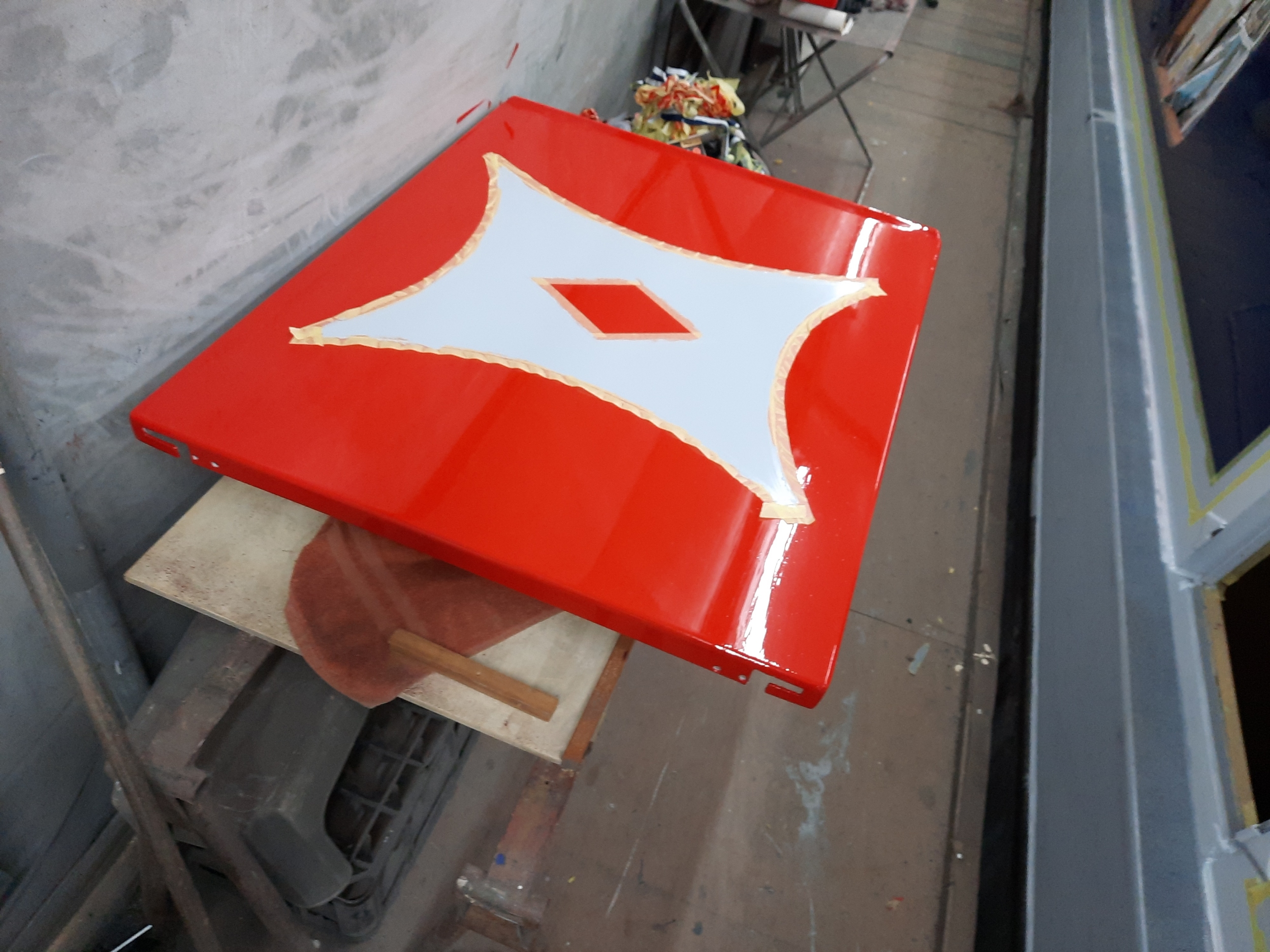

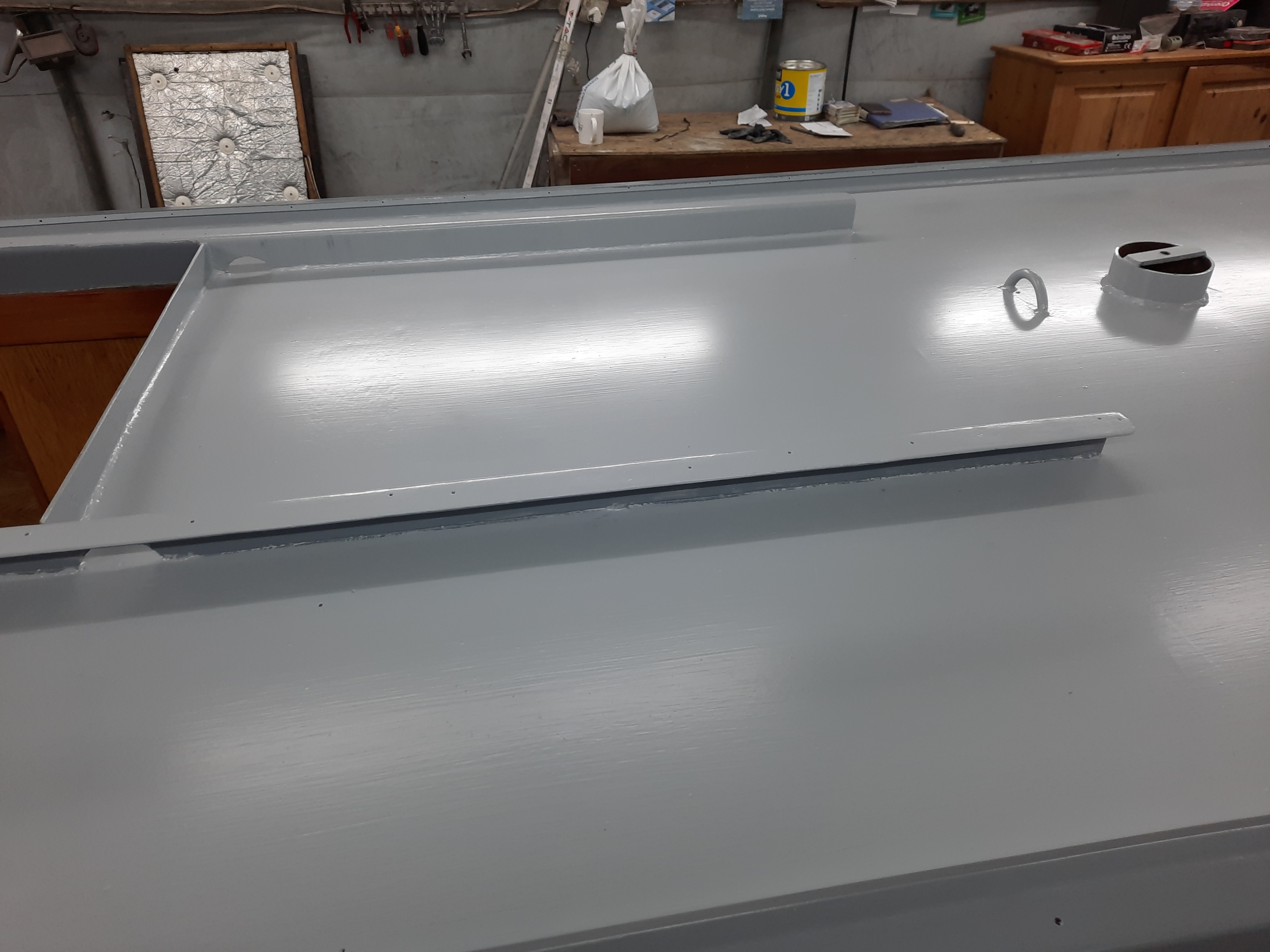

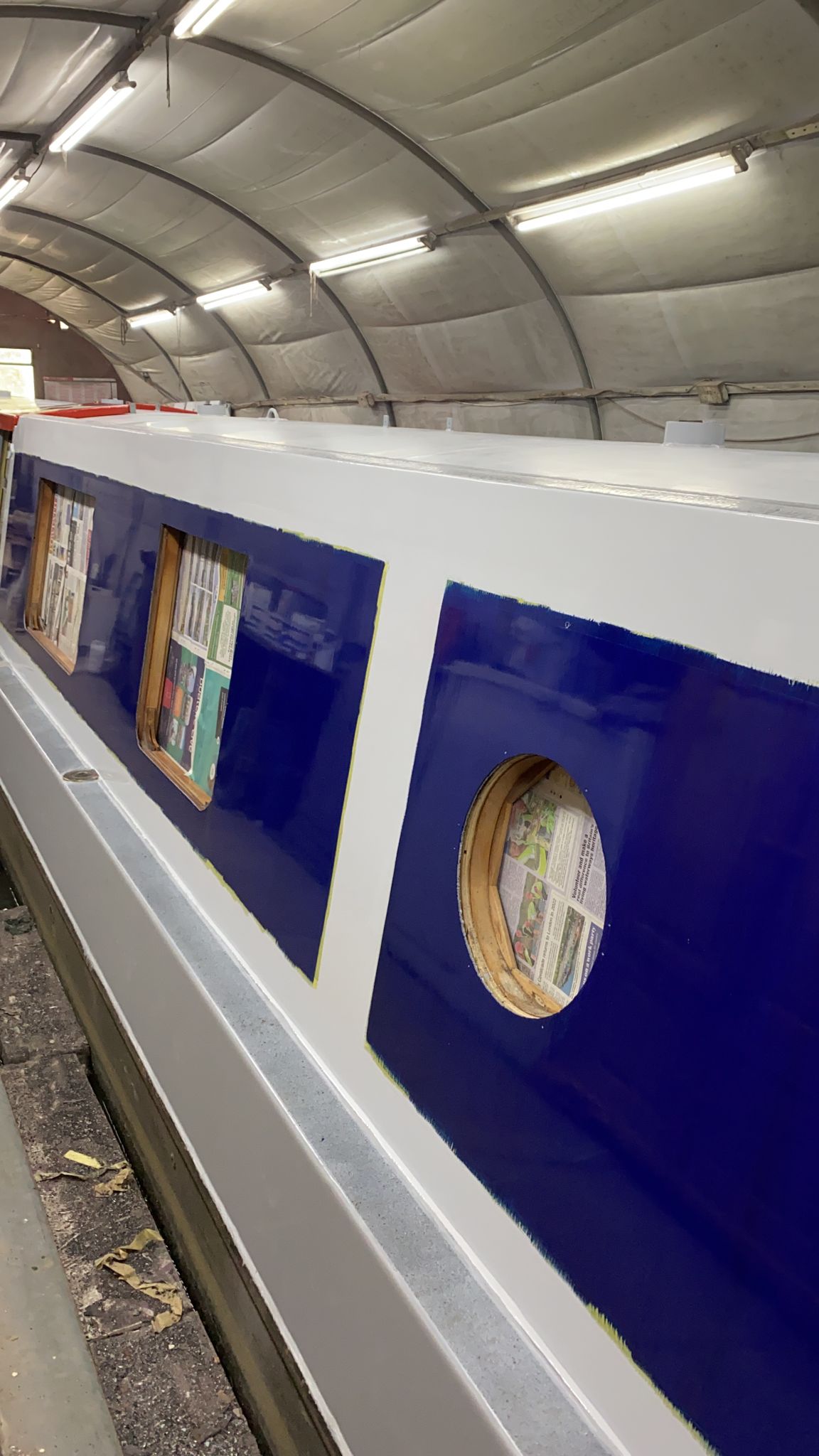

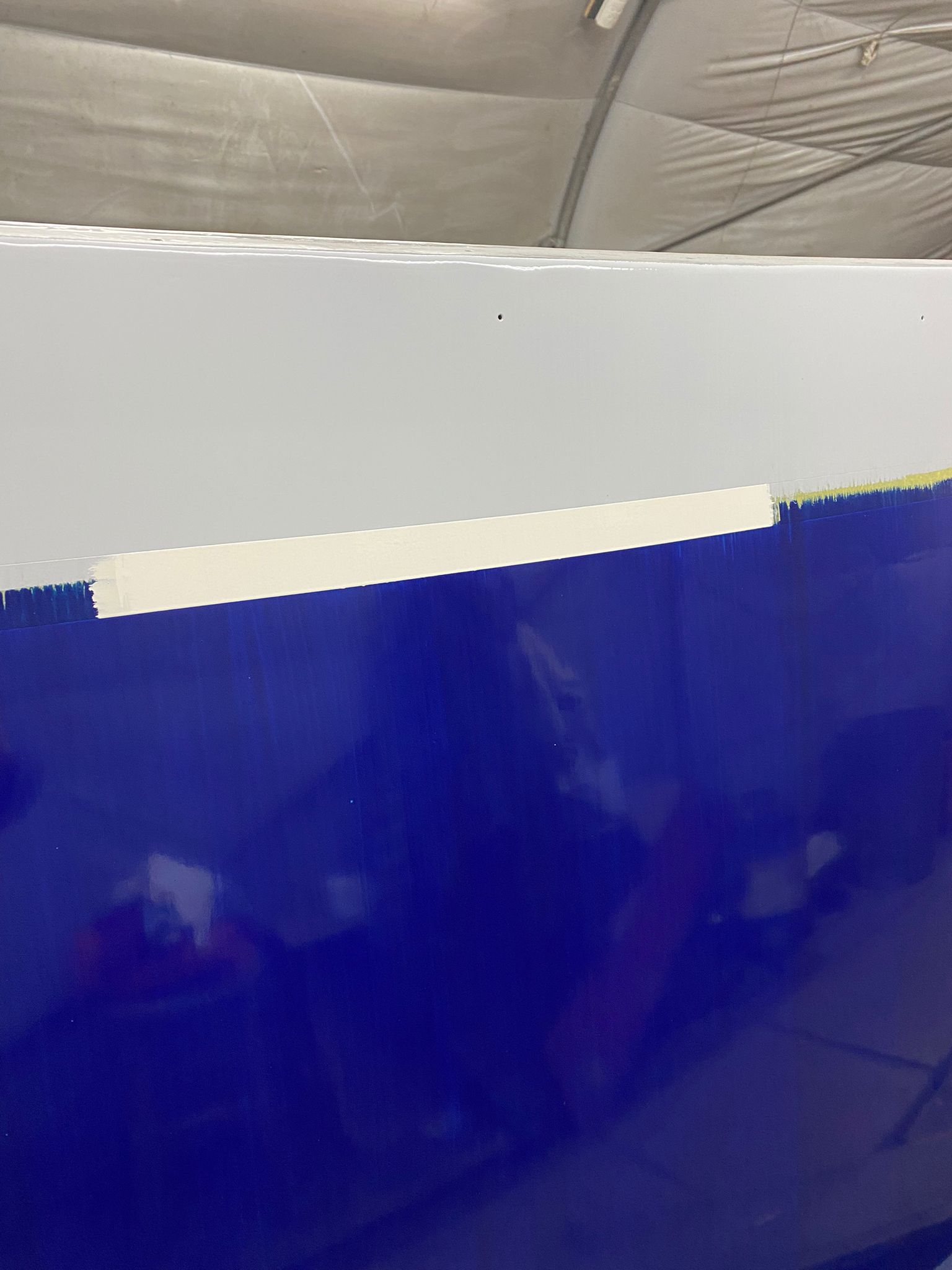

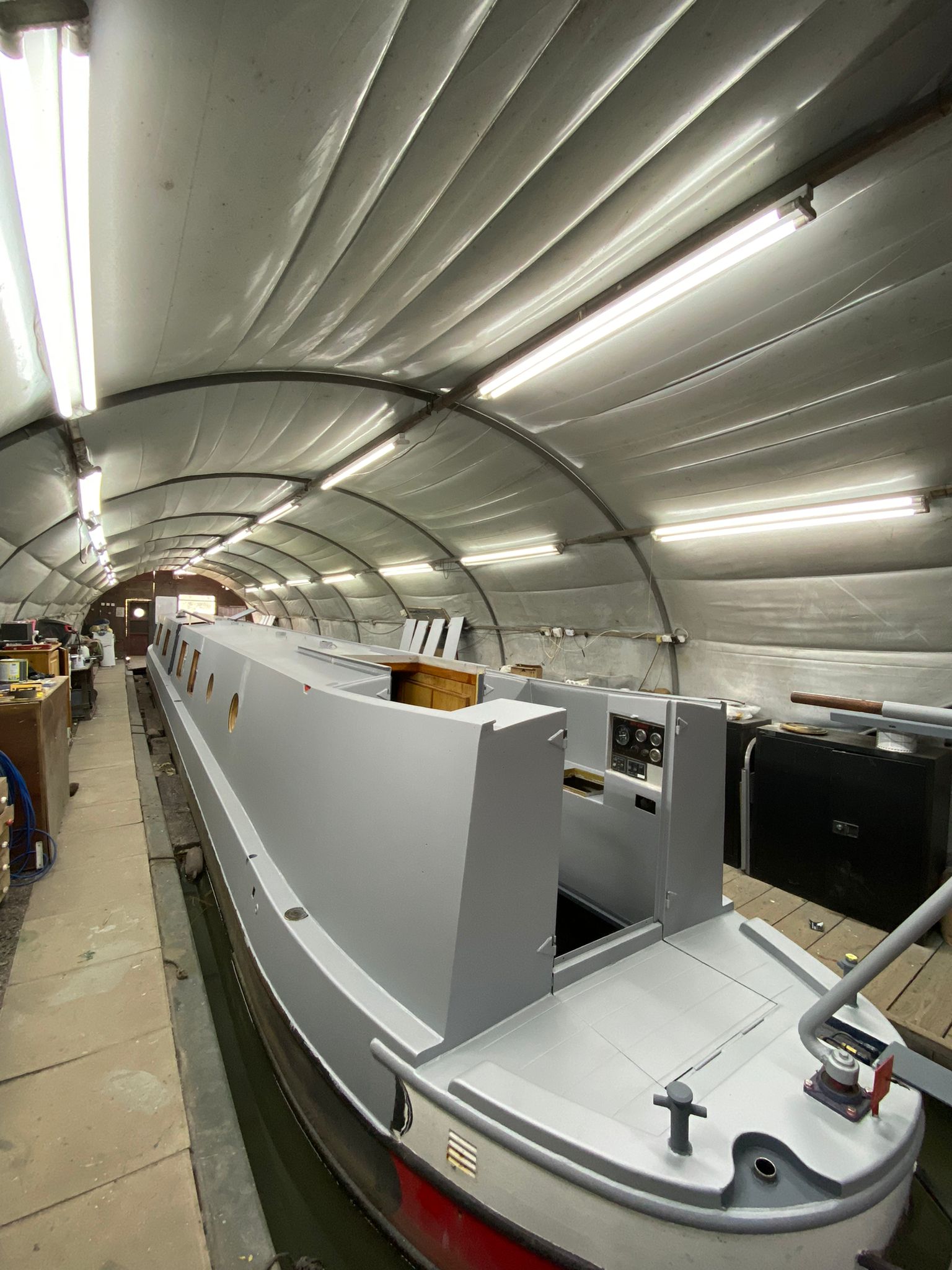

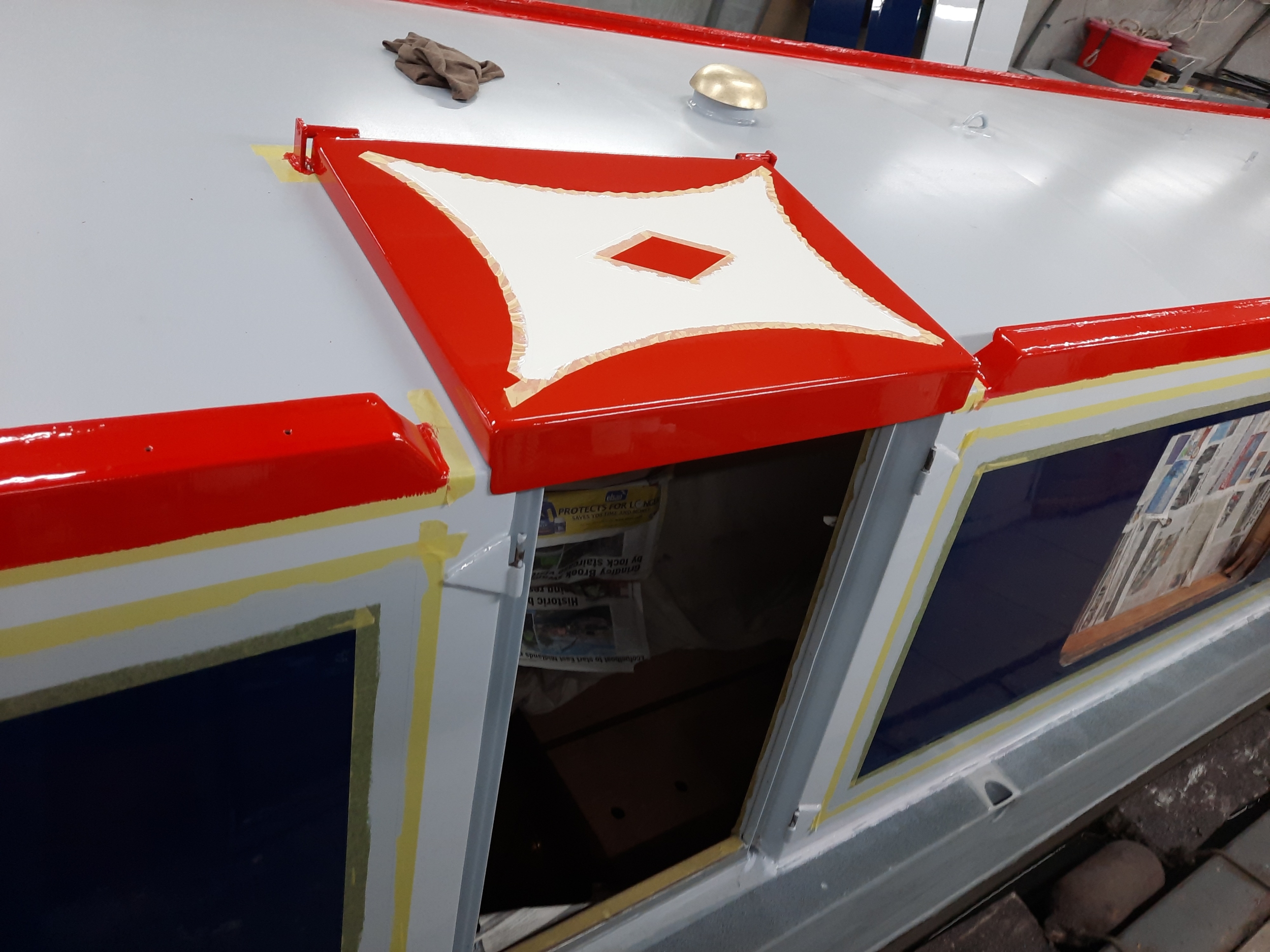

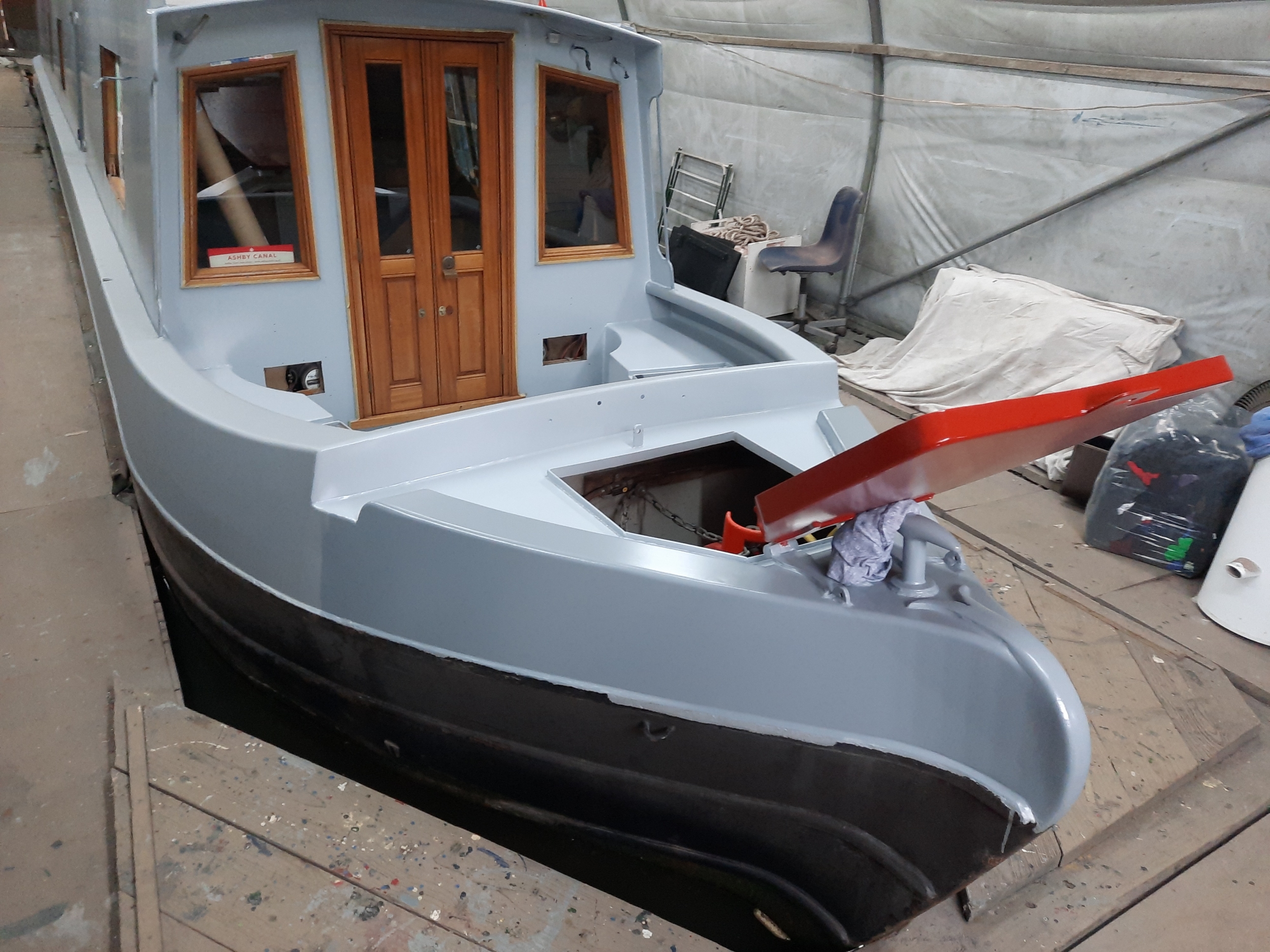

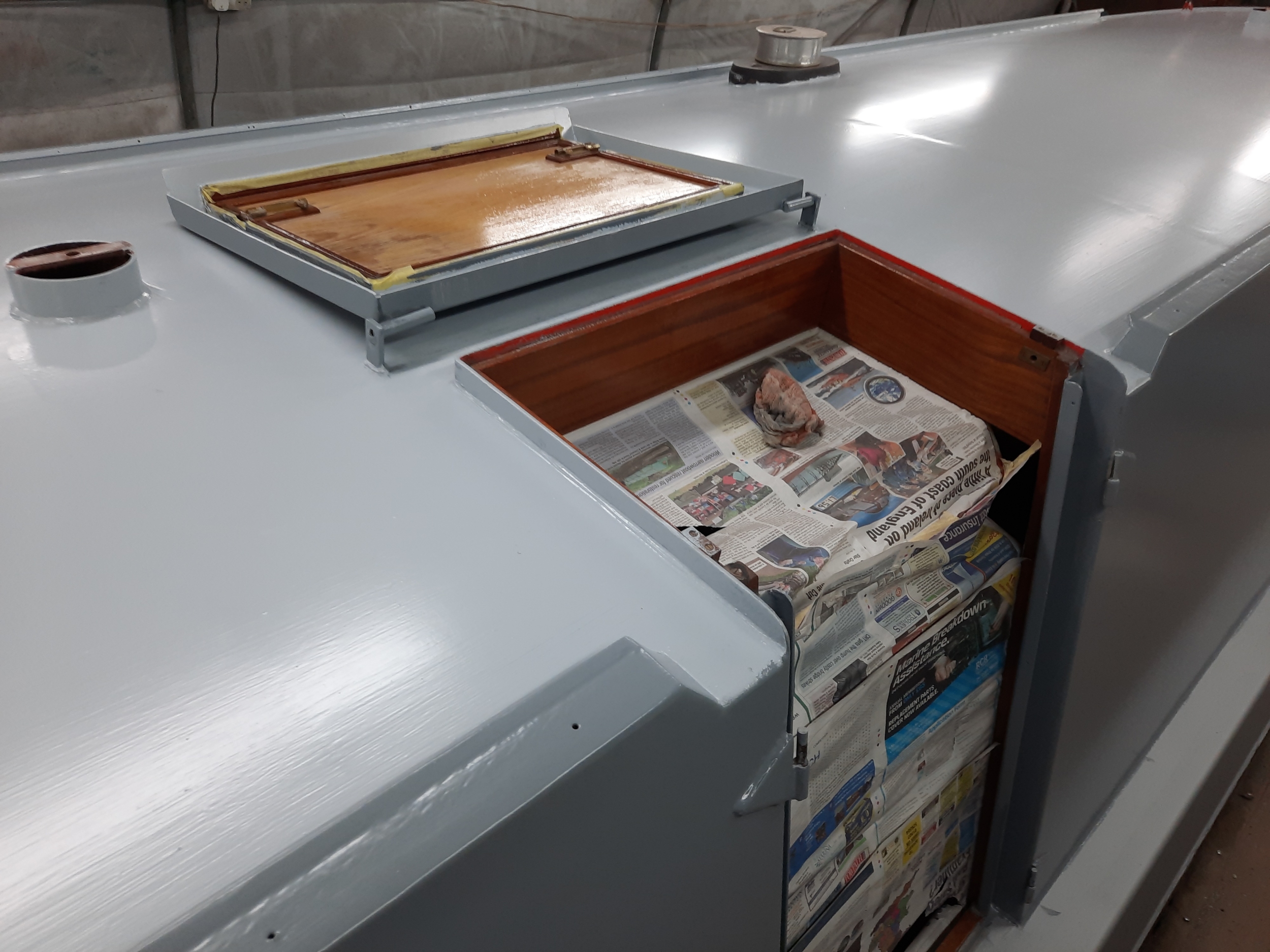

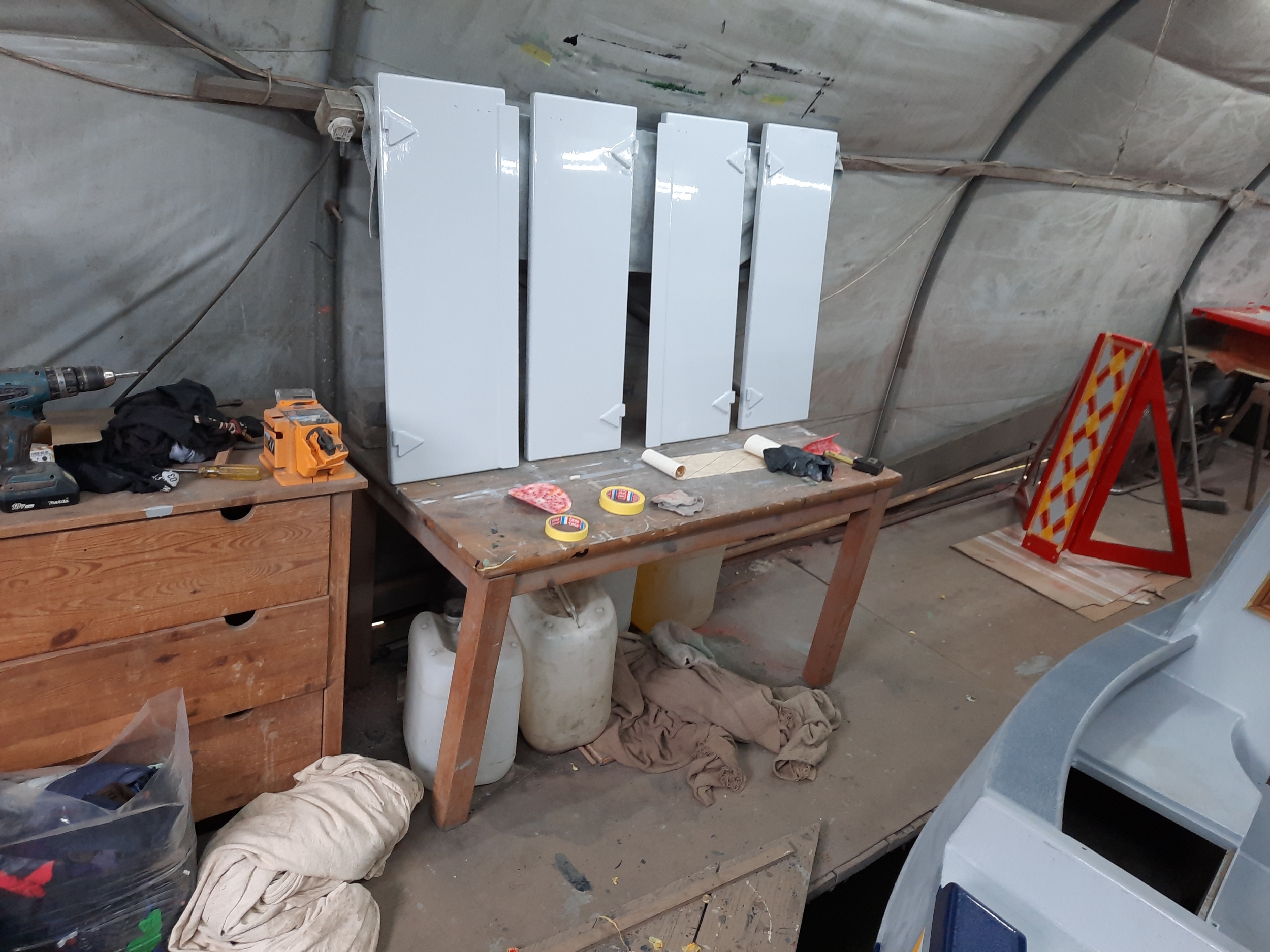

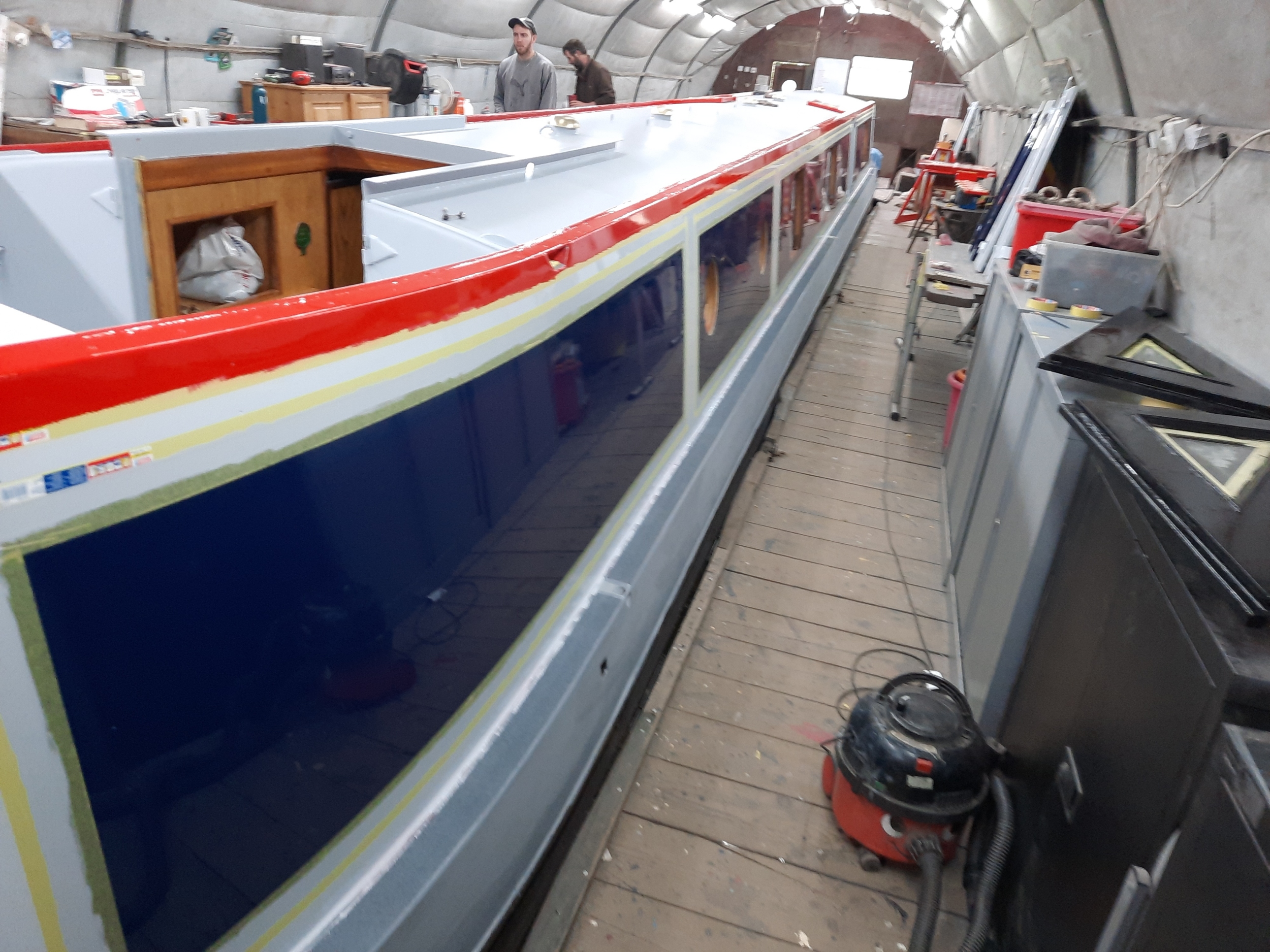

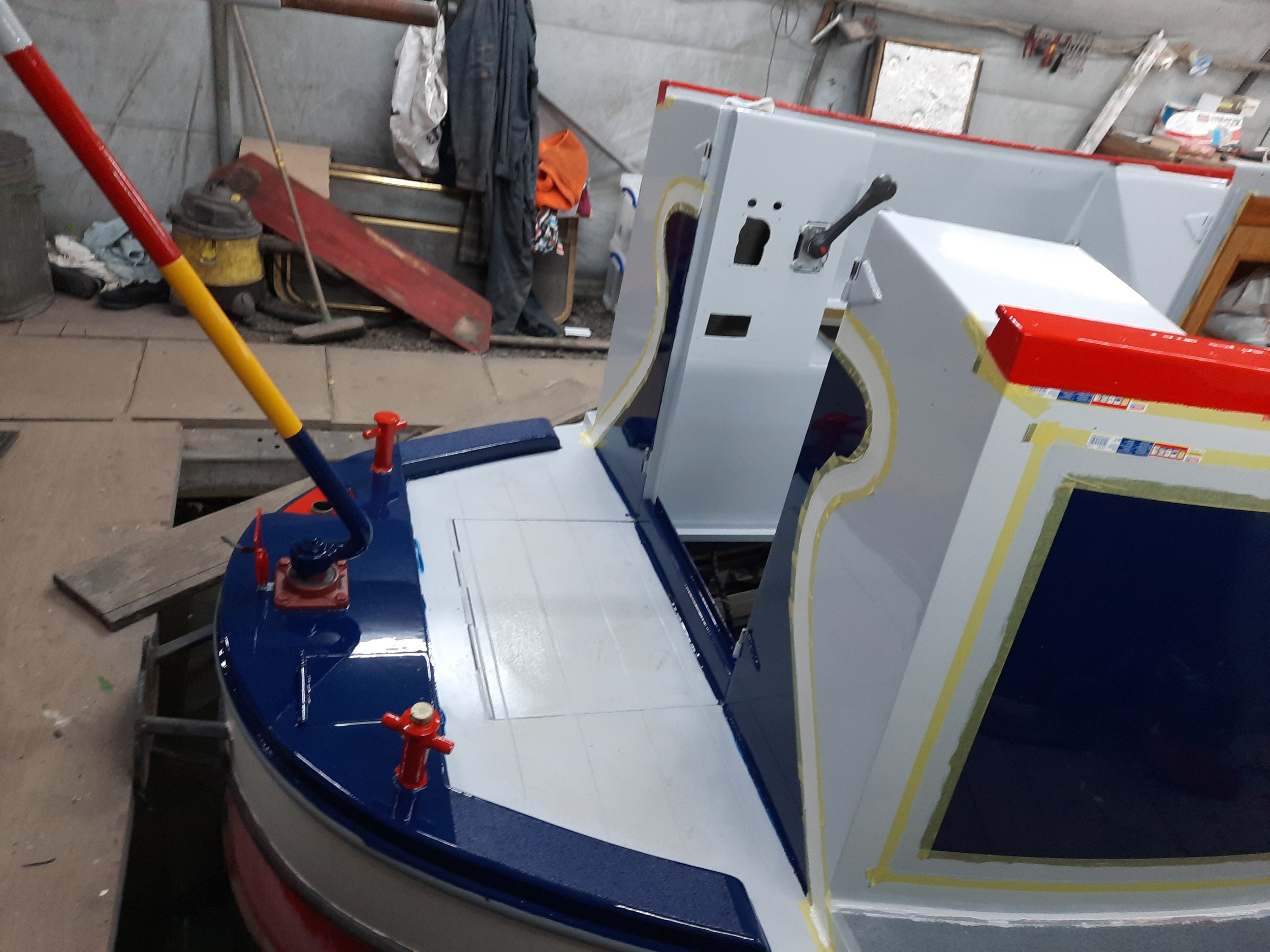

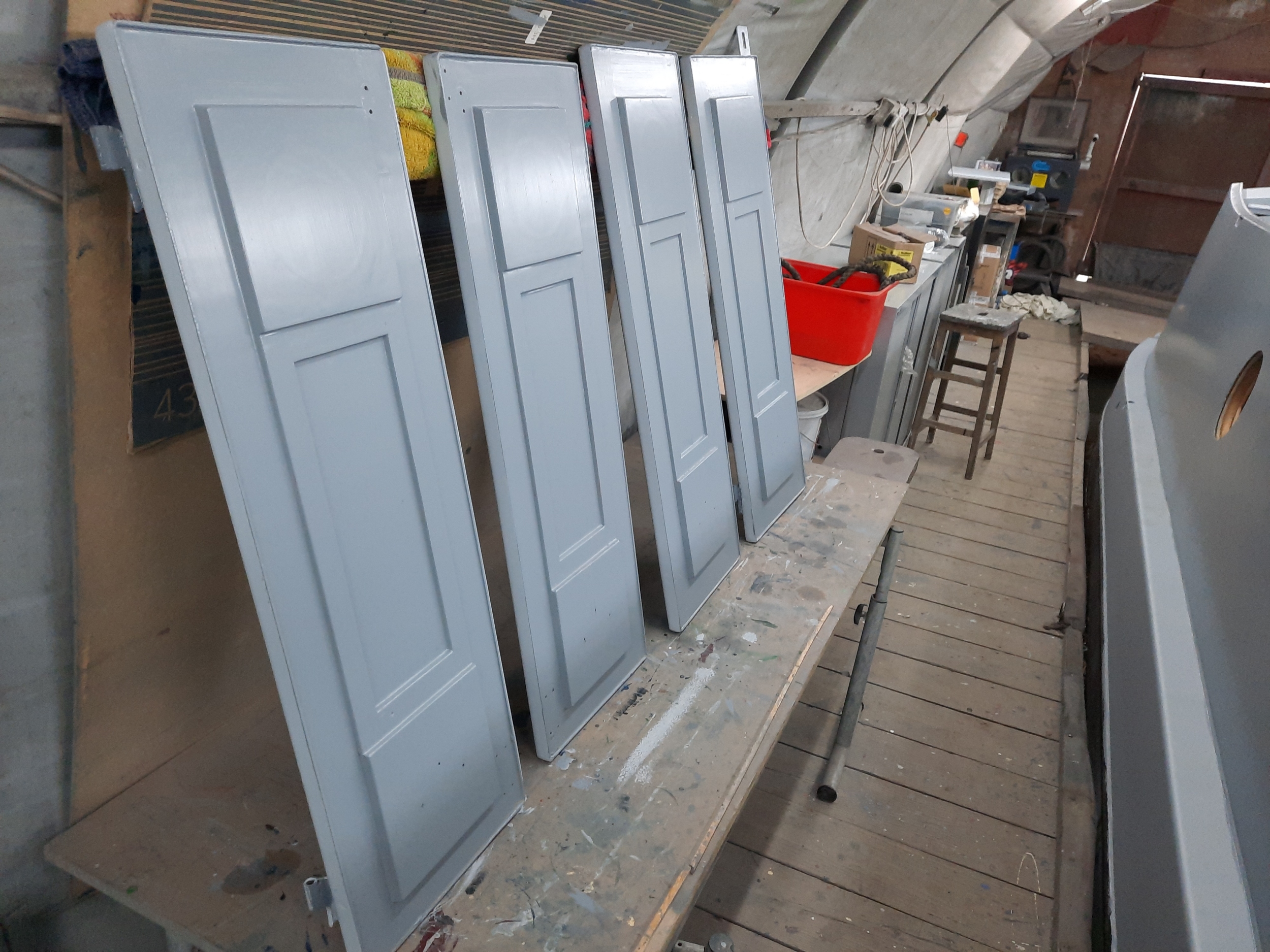

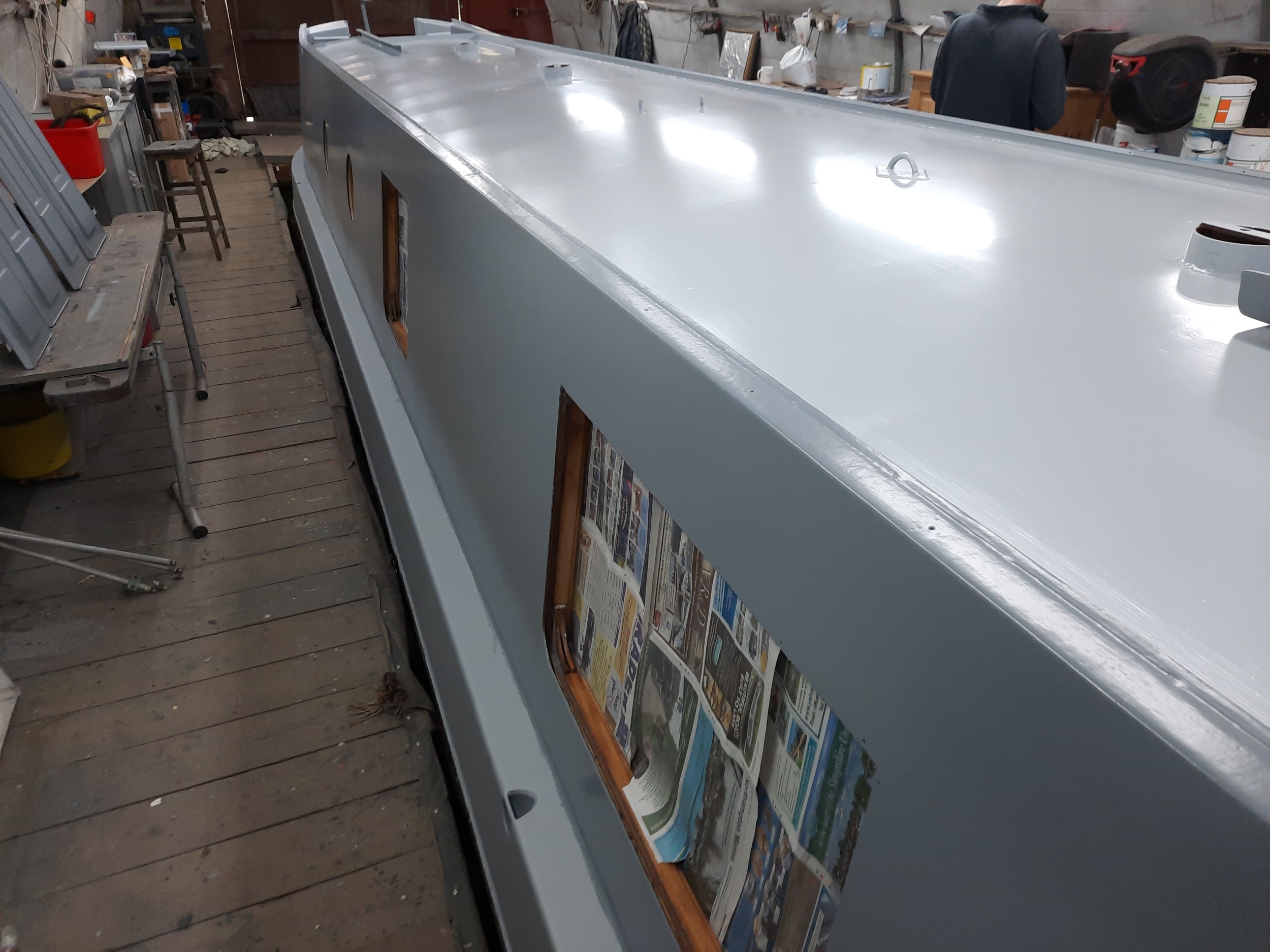

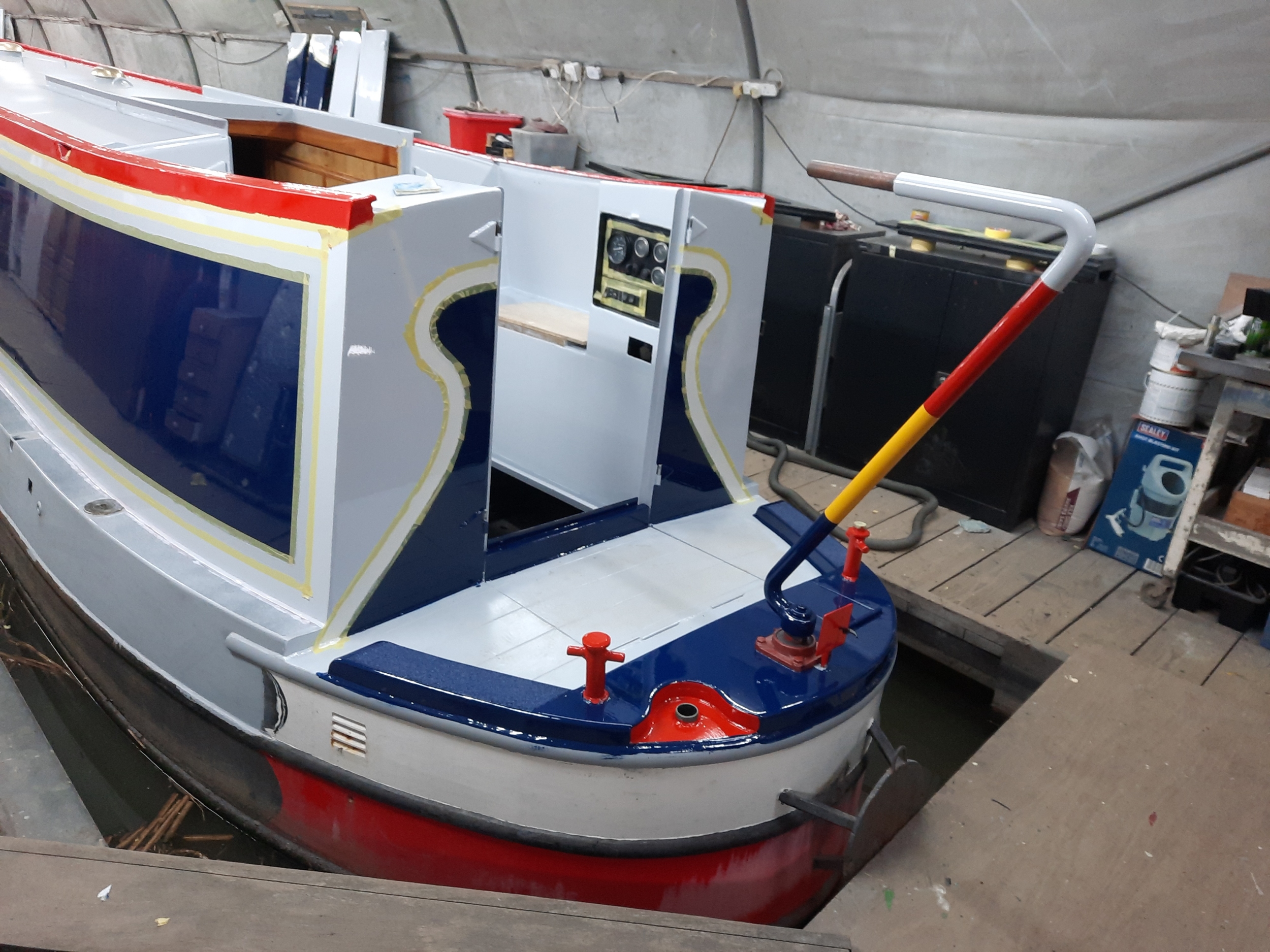

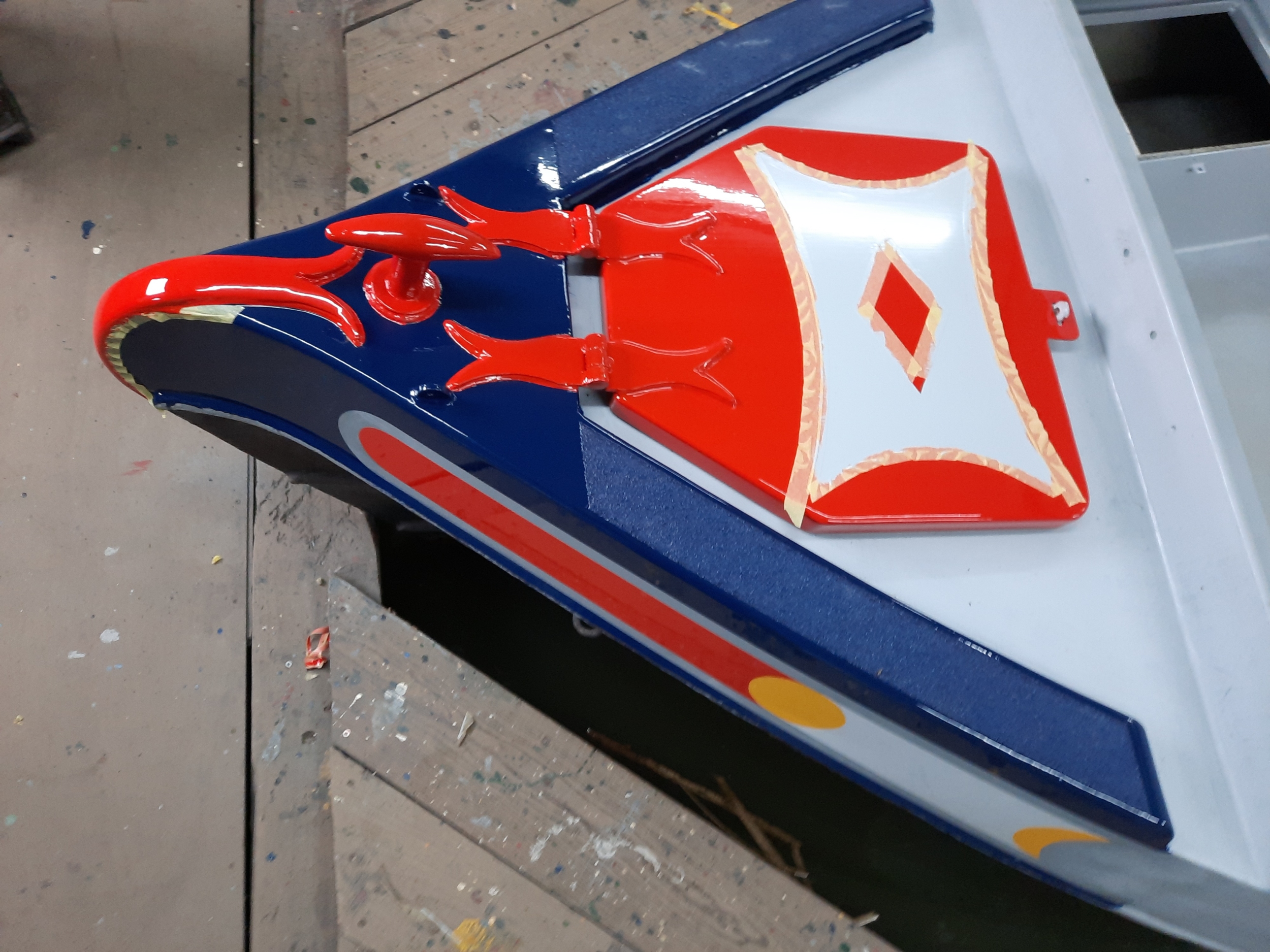

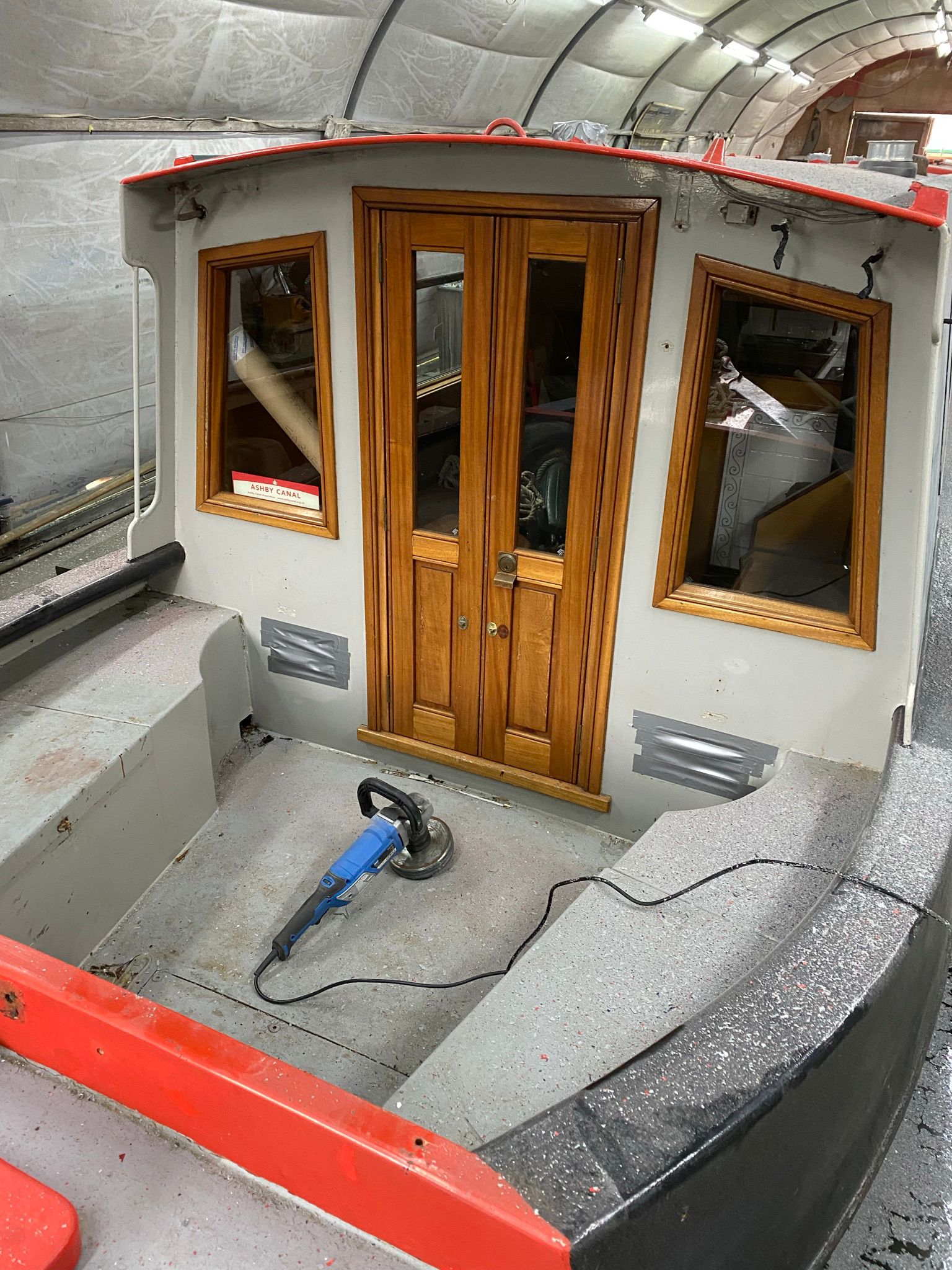

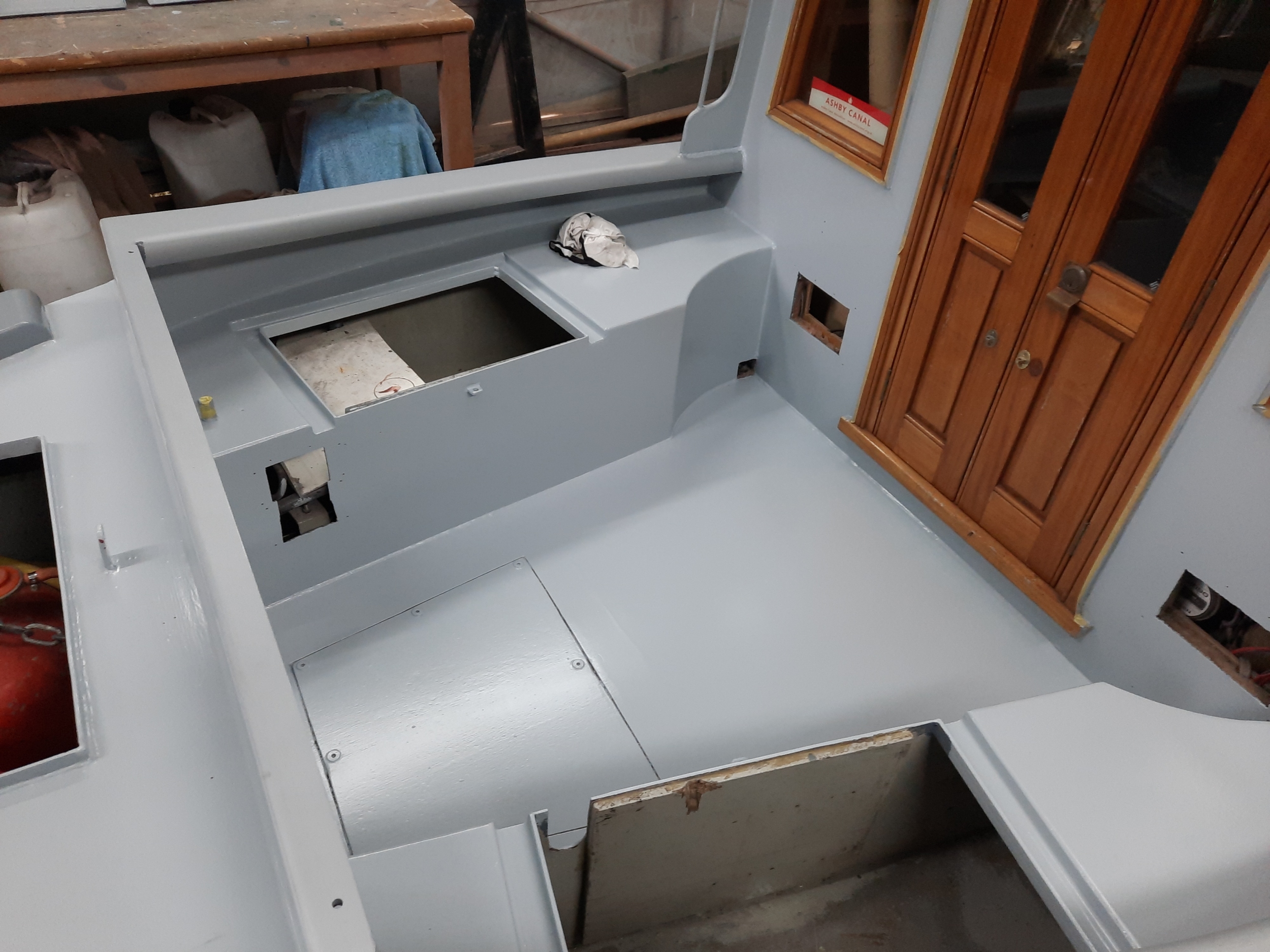

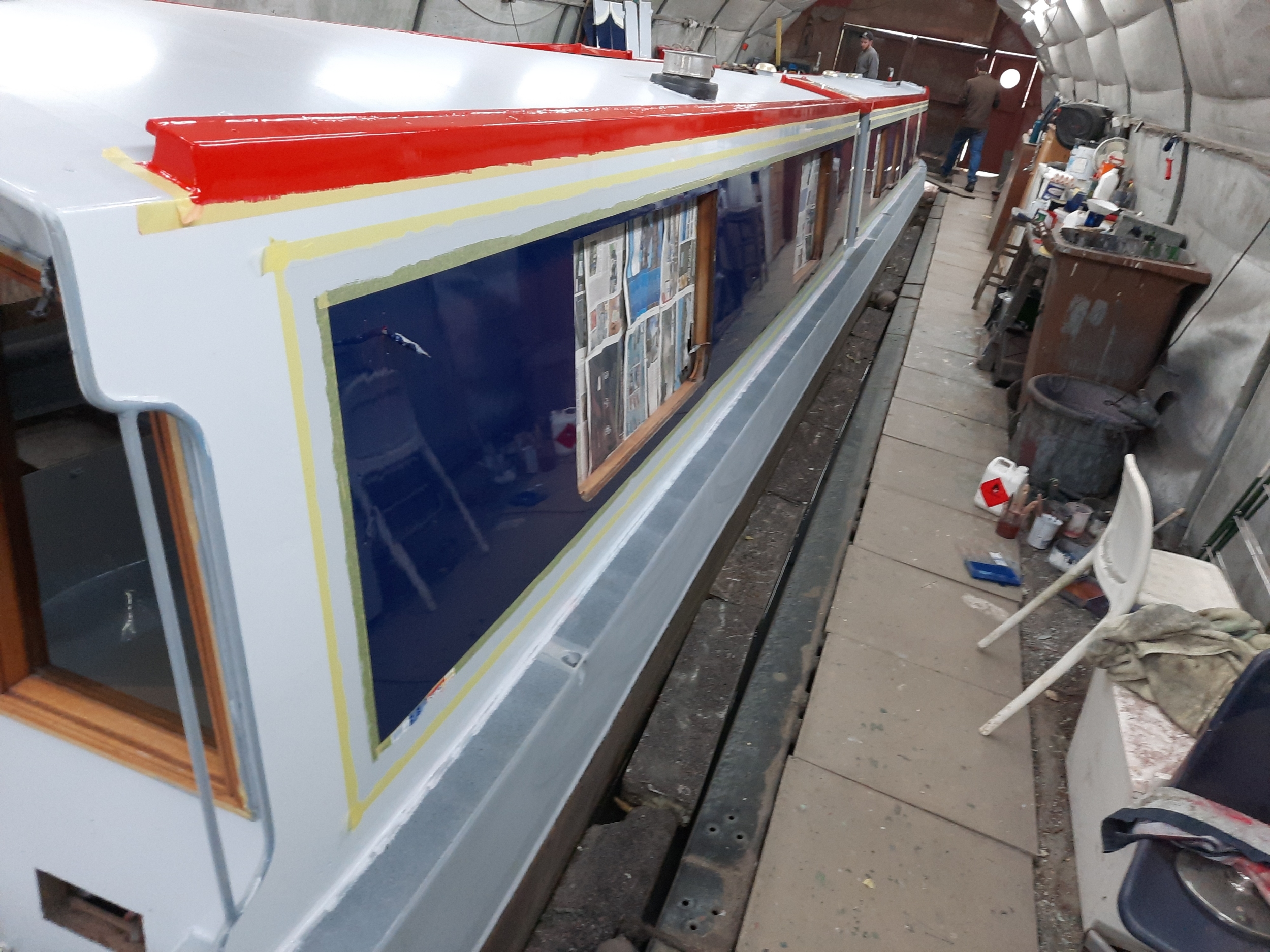

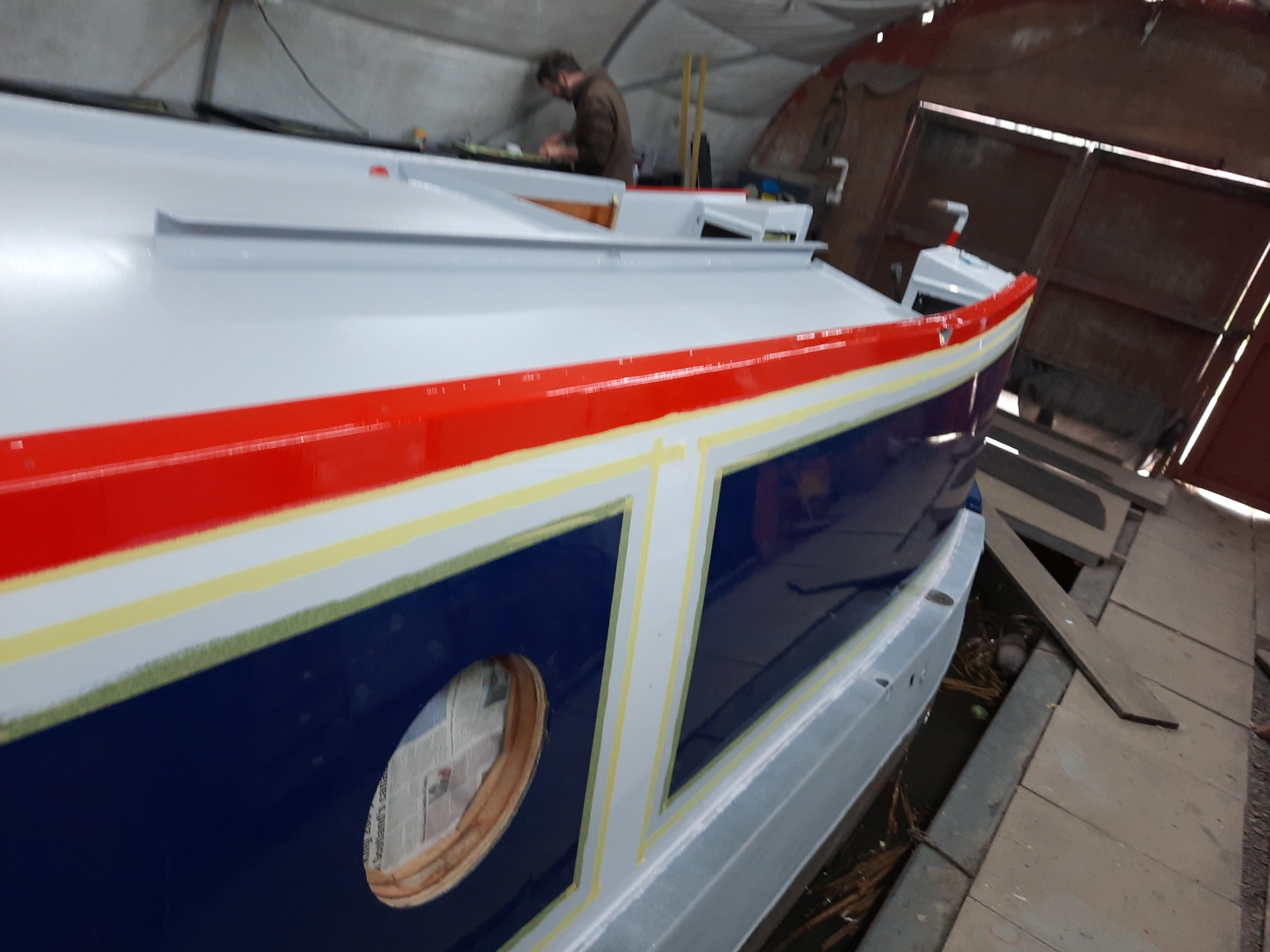

Earnest repaint by Jack Follis at Ashby Boat Centre. Back to metal. International one pack primer, and undercoat. Top coat colours : Grey, silk and gloss - Epifanes, Red - Craftmaster Signal Red, Decks - International grey Interdeck, Blue - Masons Atlantic Blue (my 23 year old strategic reserve!) 60 grit shot blast grit as non slip additive on cants and gunwales. Microbead non slip additive in silk roof grey.

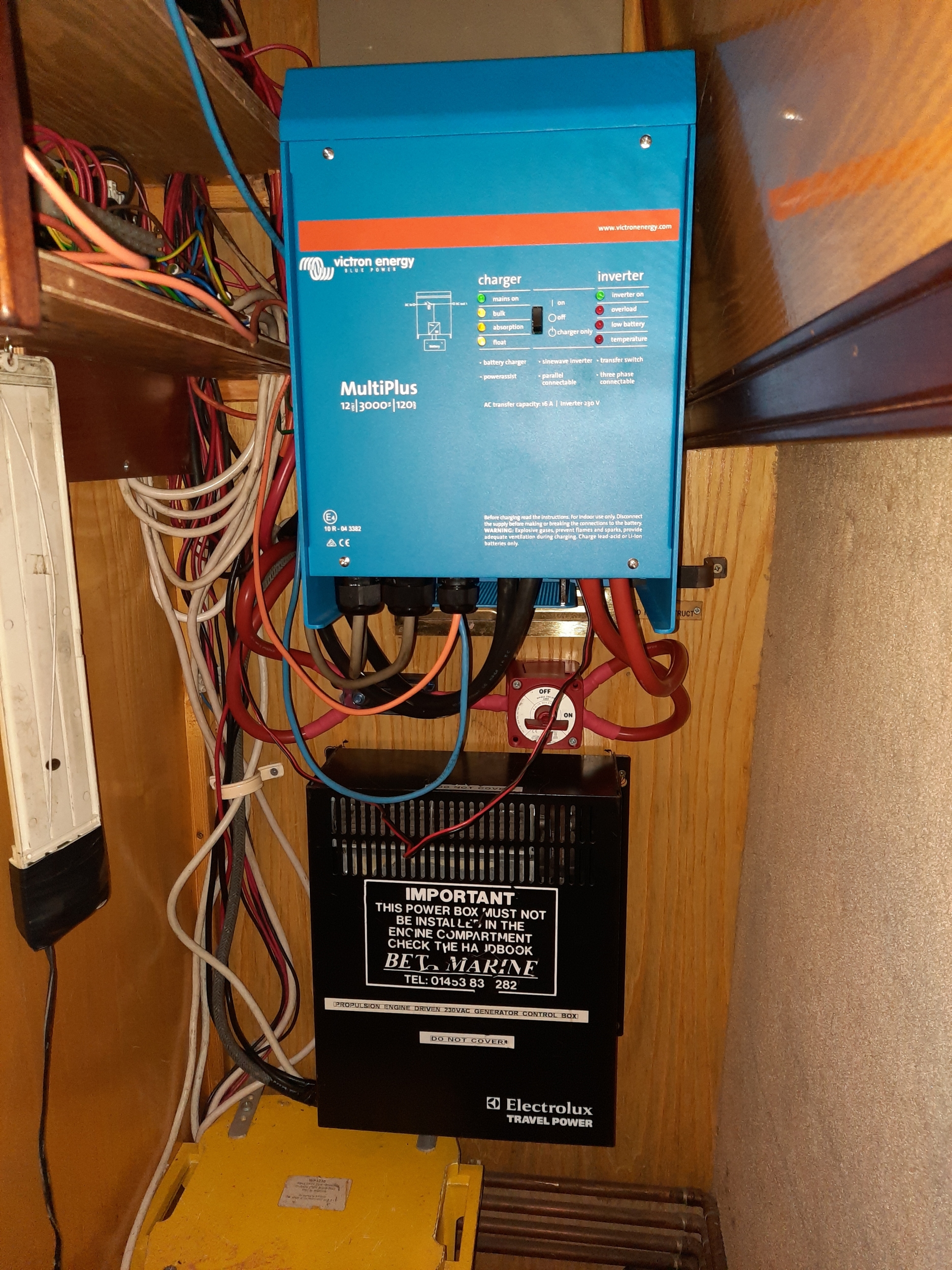

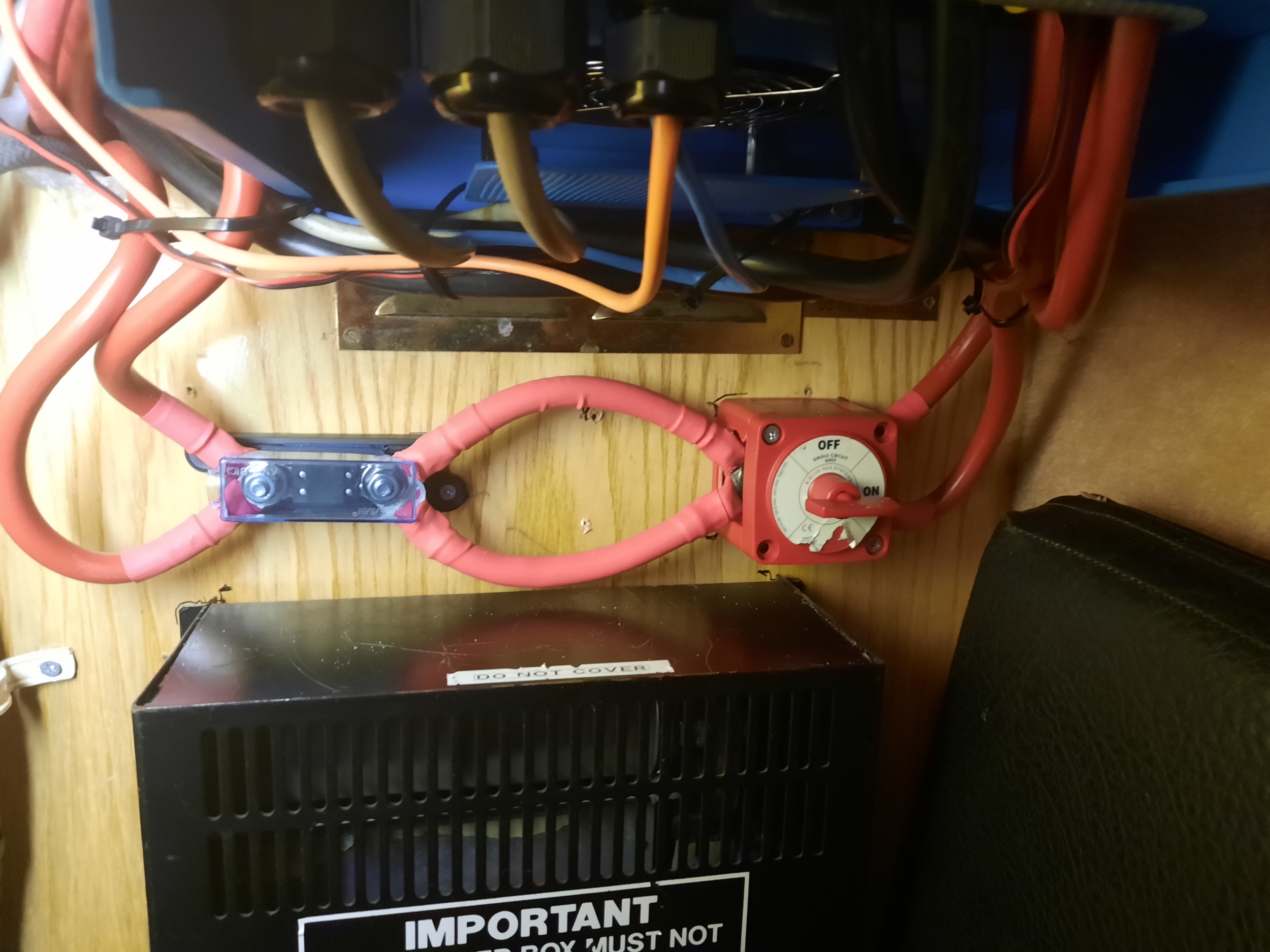

Mark 3 Inverter charger installation - Victron 3000w Multiplus.
Mark 3 Inverter charger installation.

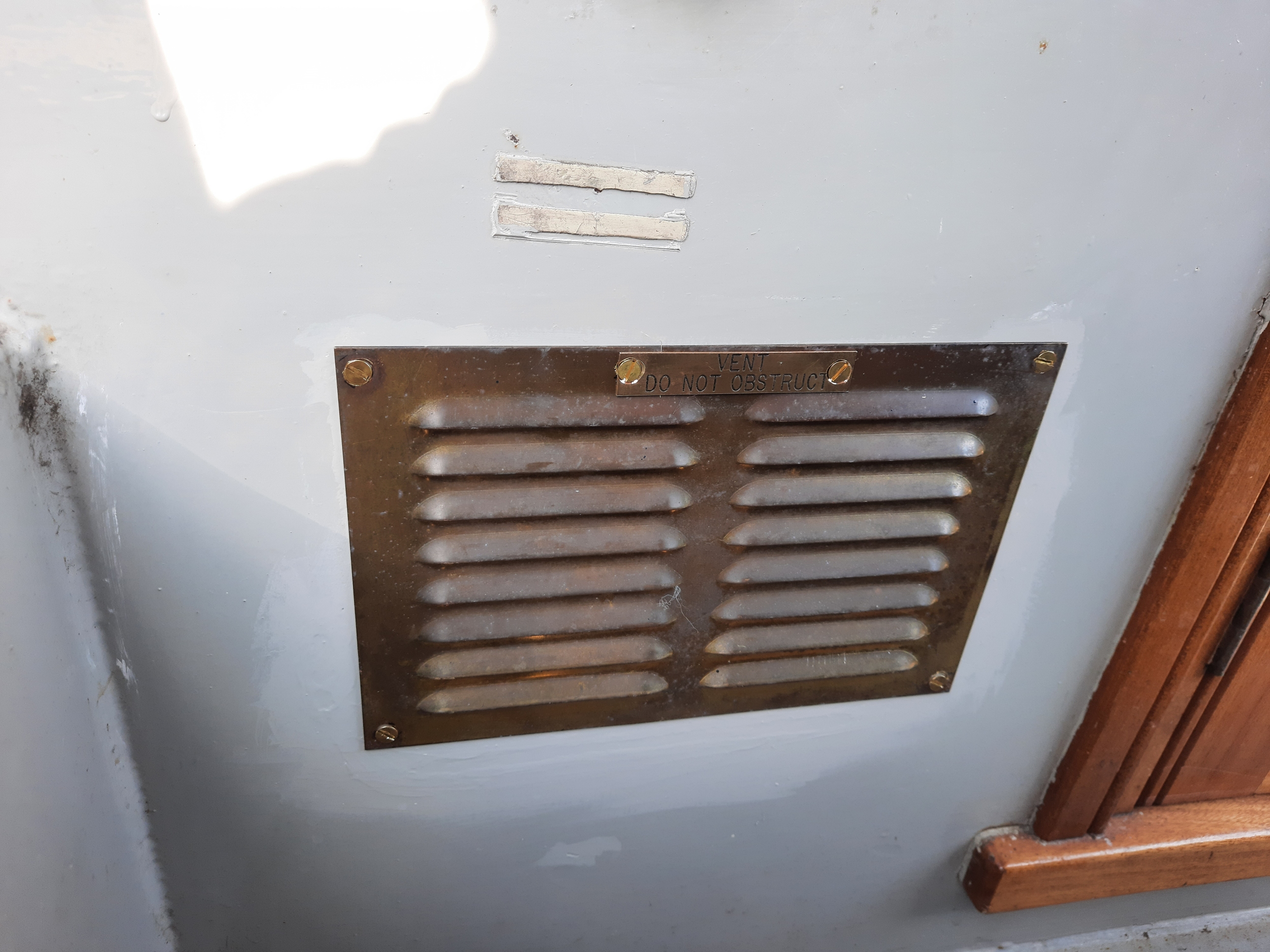

Extra low level ventilation added to front, to cope with larger Villager Puffin
2 stove.

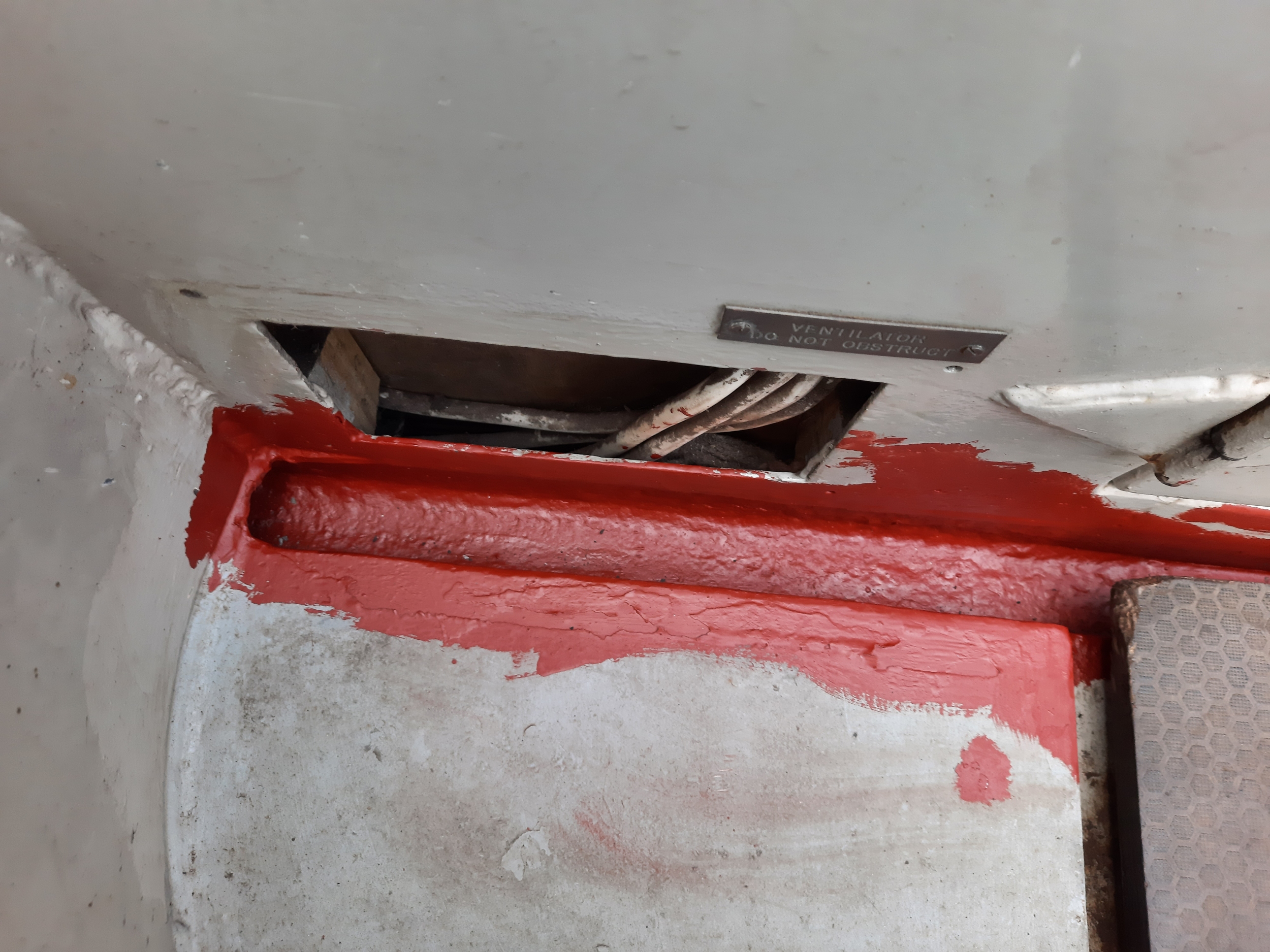

Extra low level ventilation added to front.

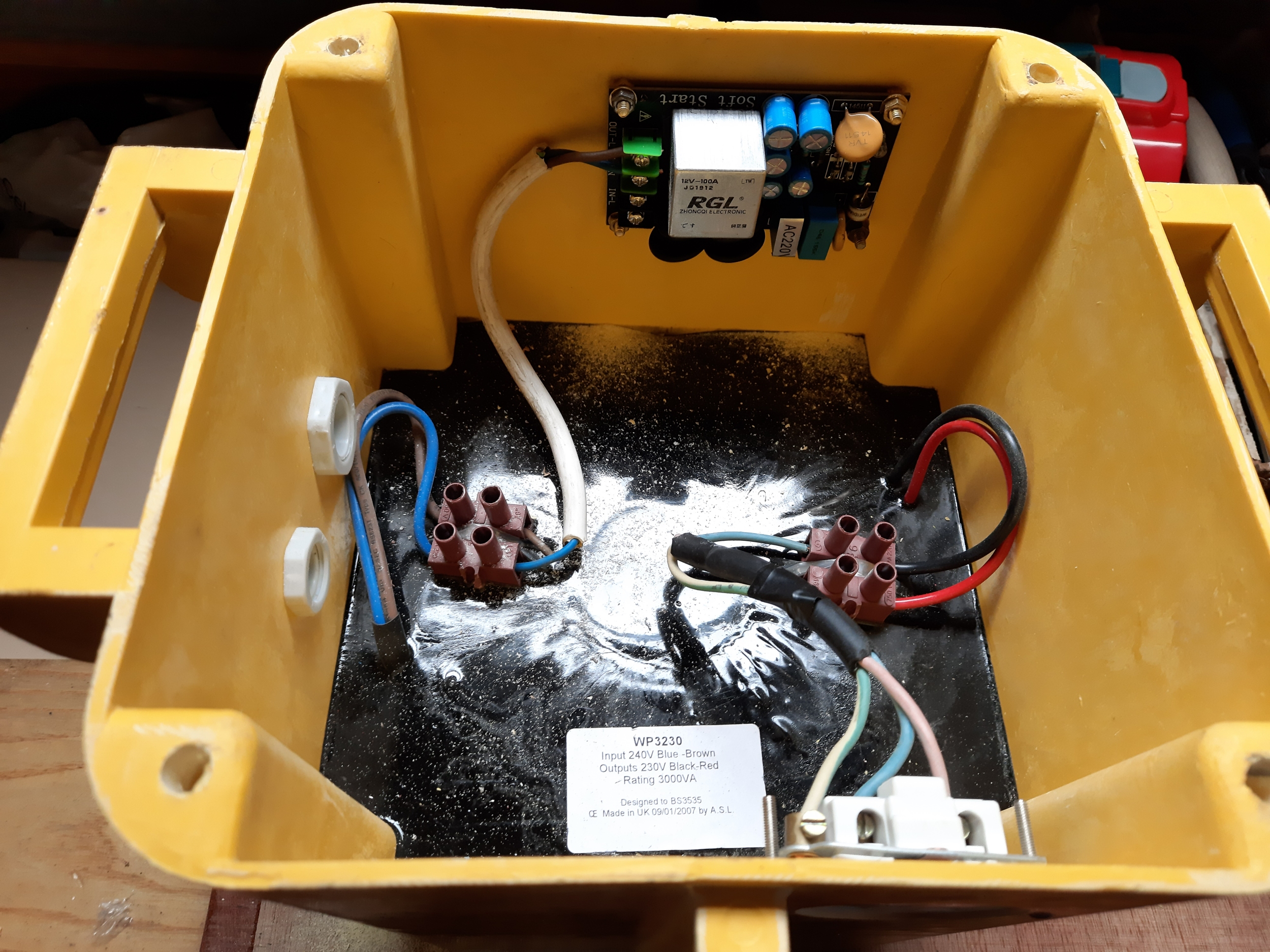

Electronic soft start added to Airlink isolation transformer - actually sold as
soft start for large audio power amplifier.

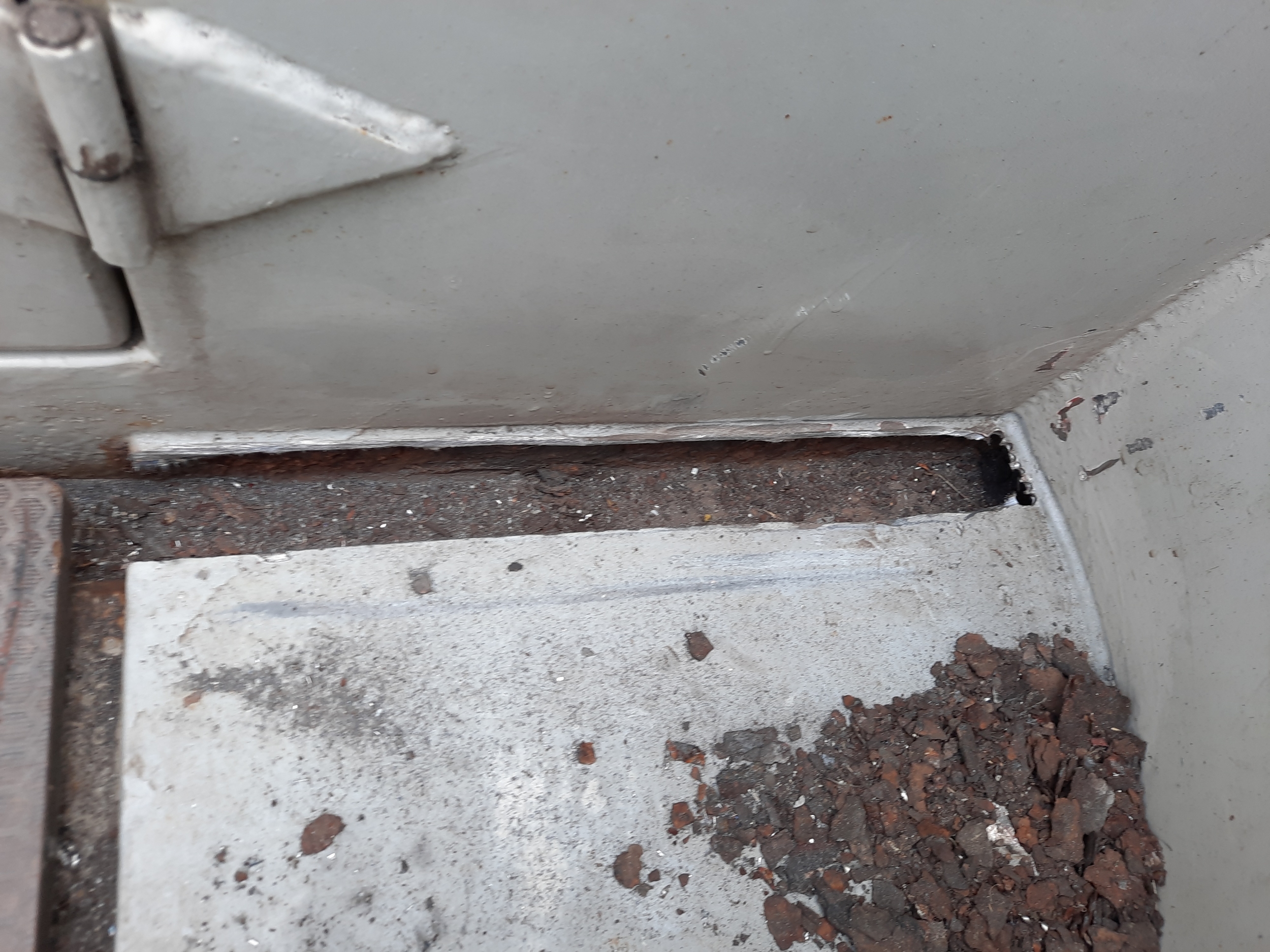

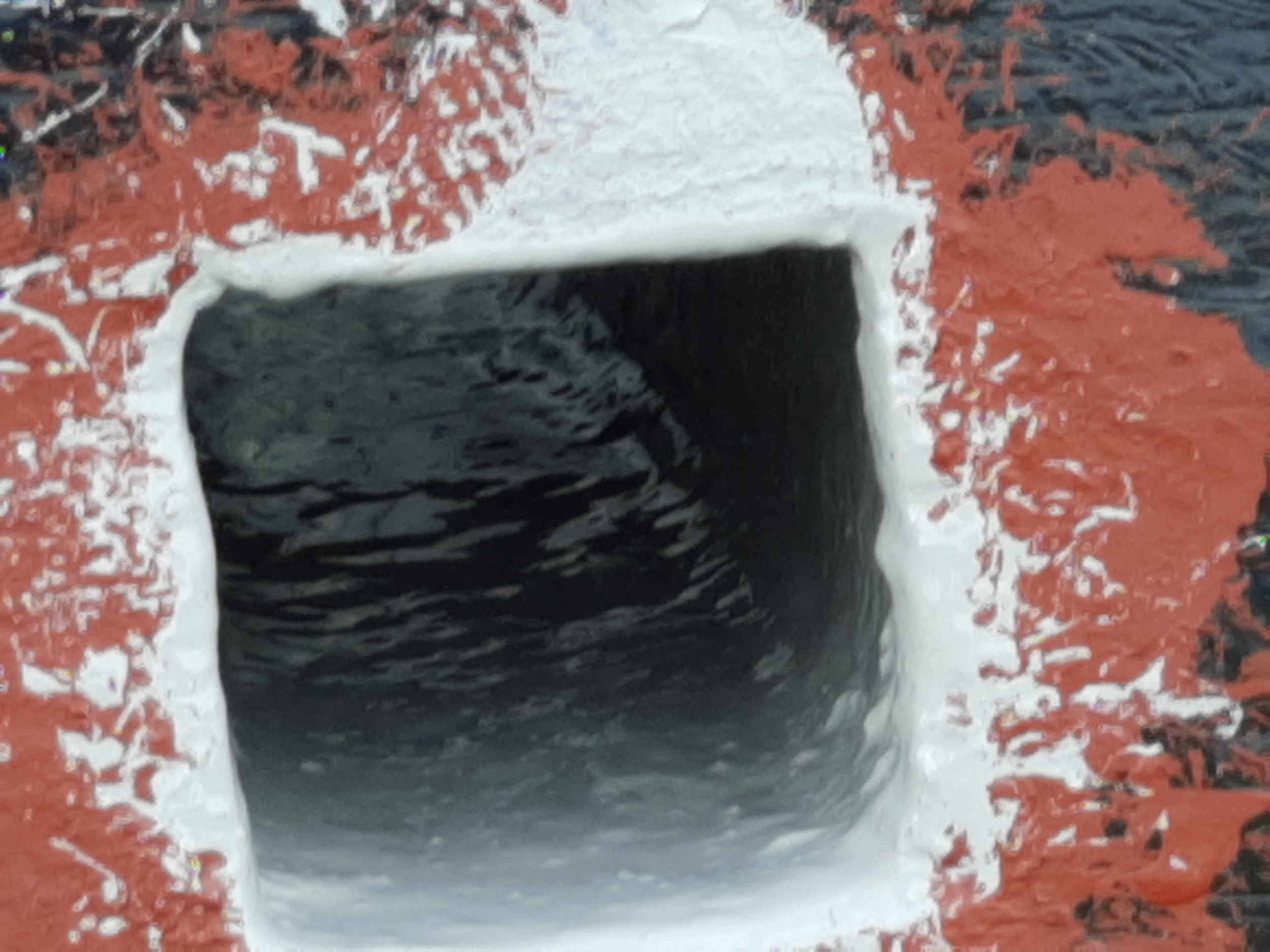

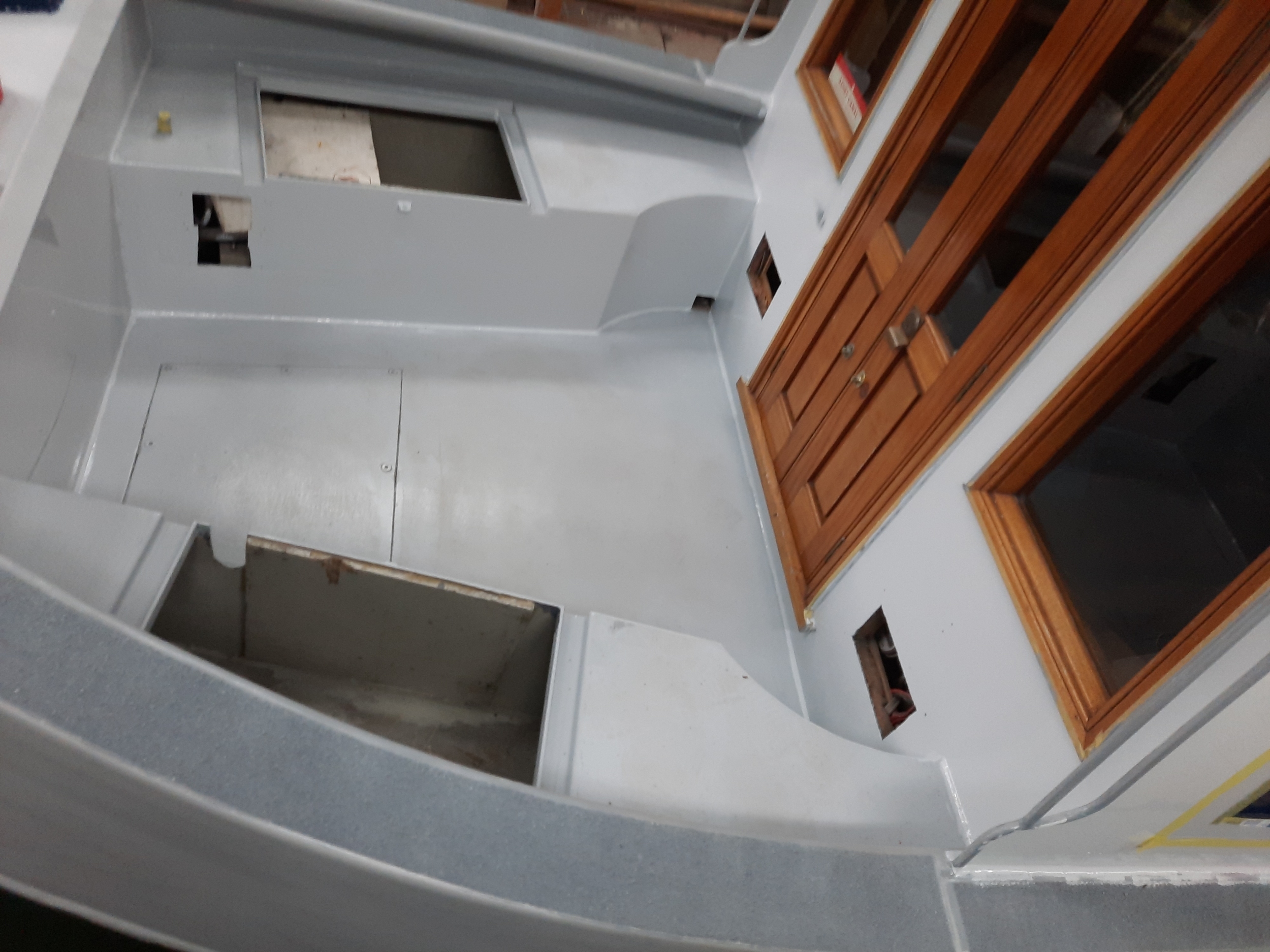

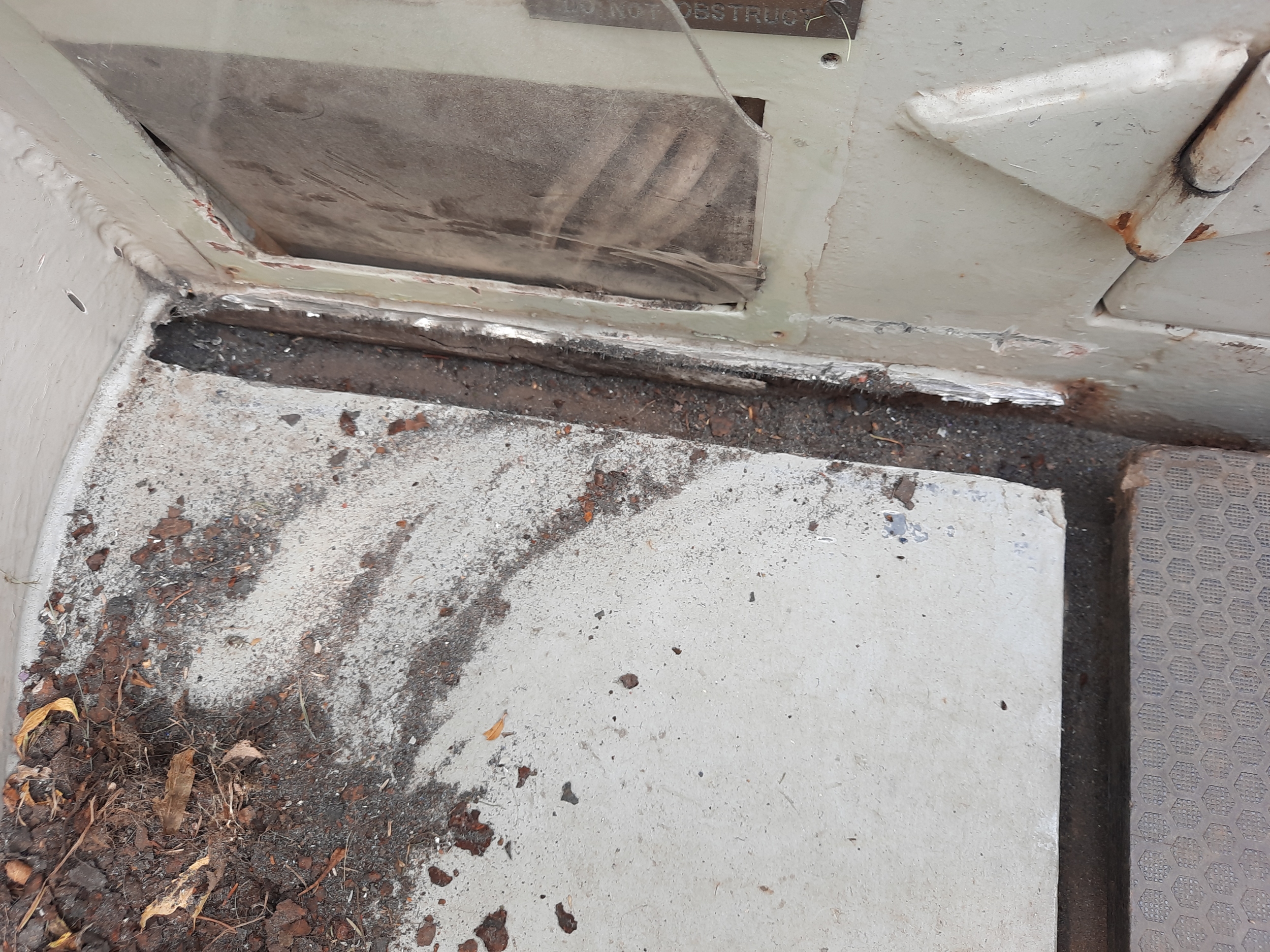

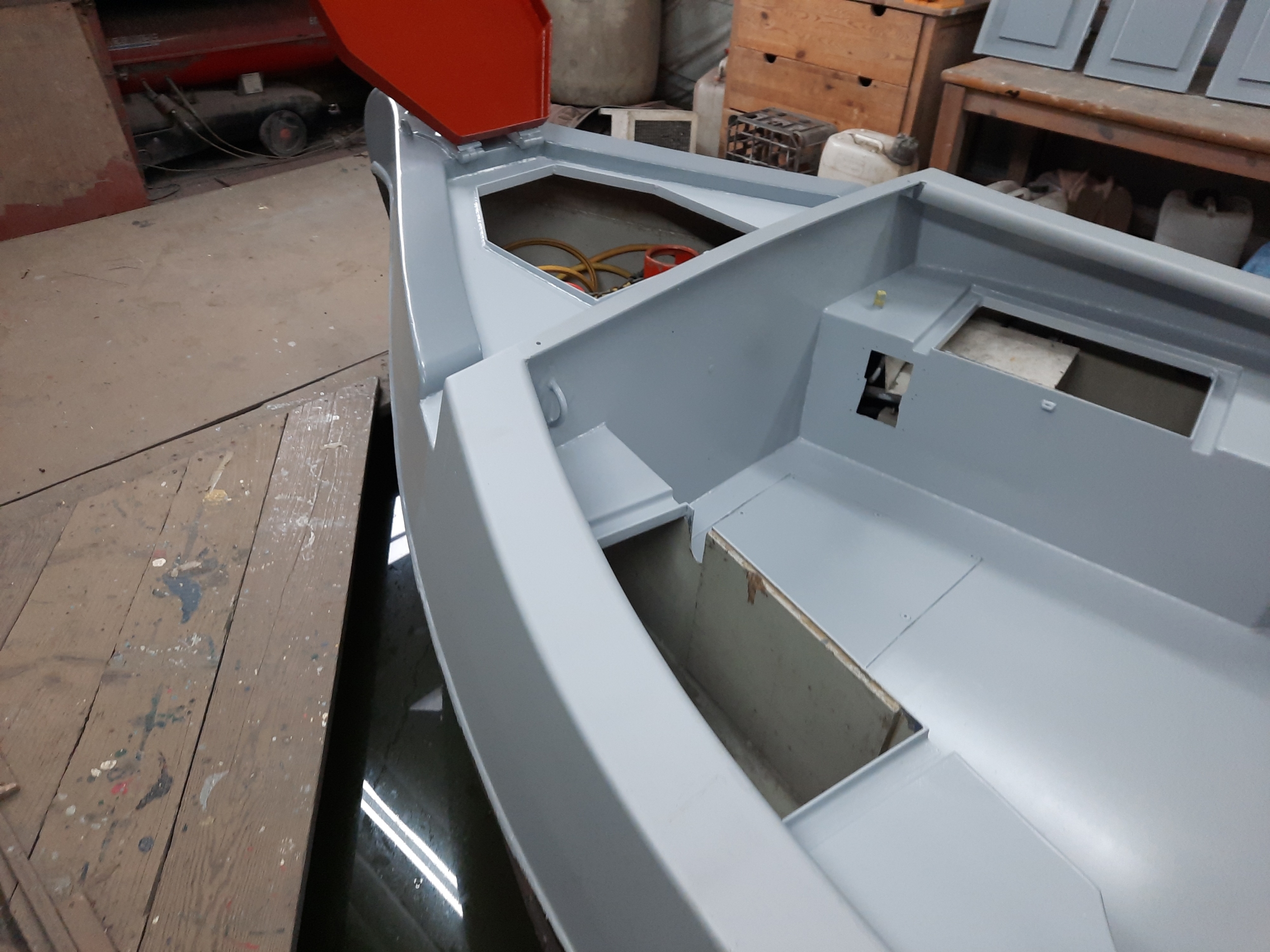

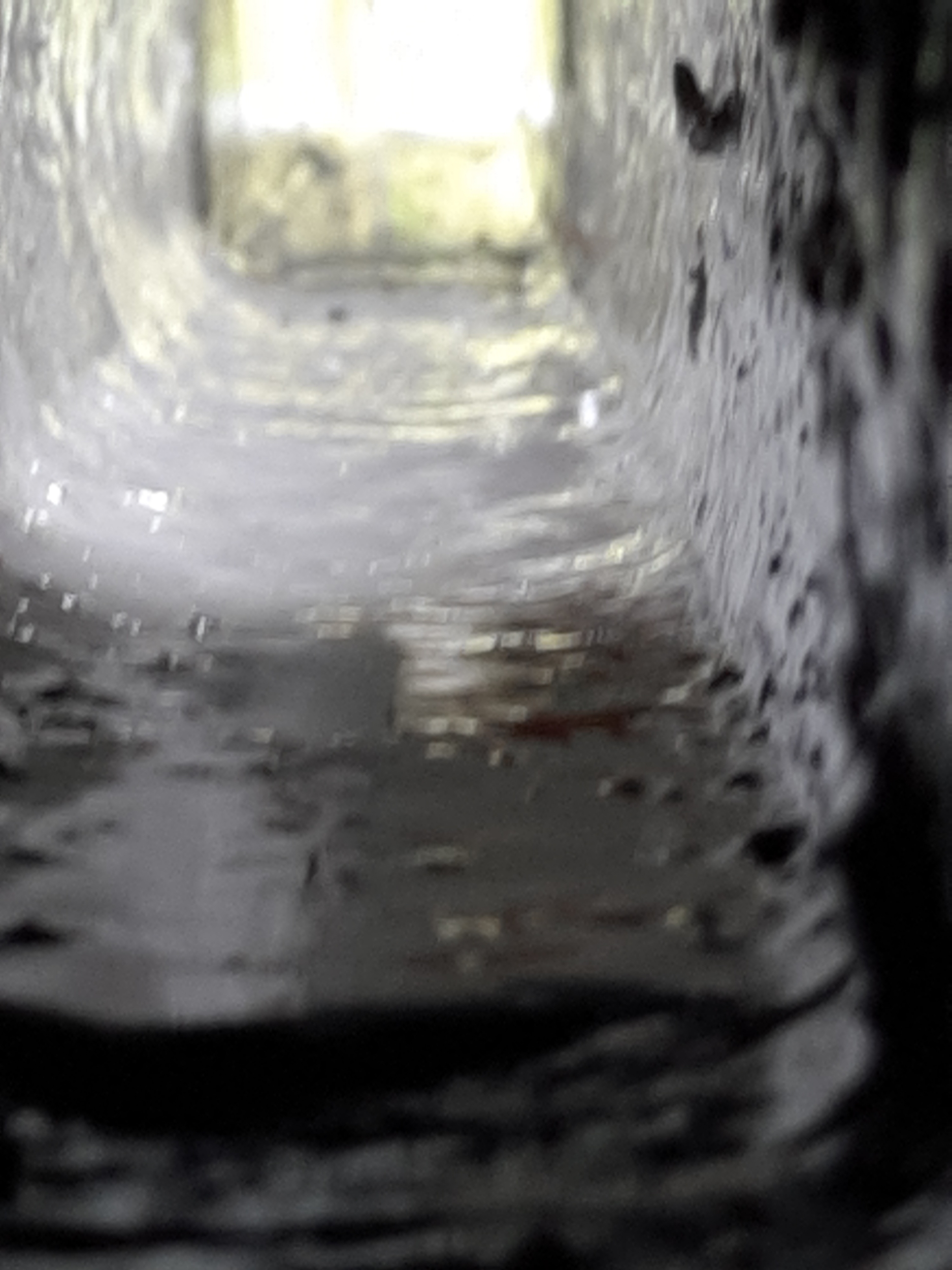

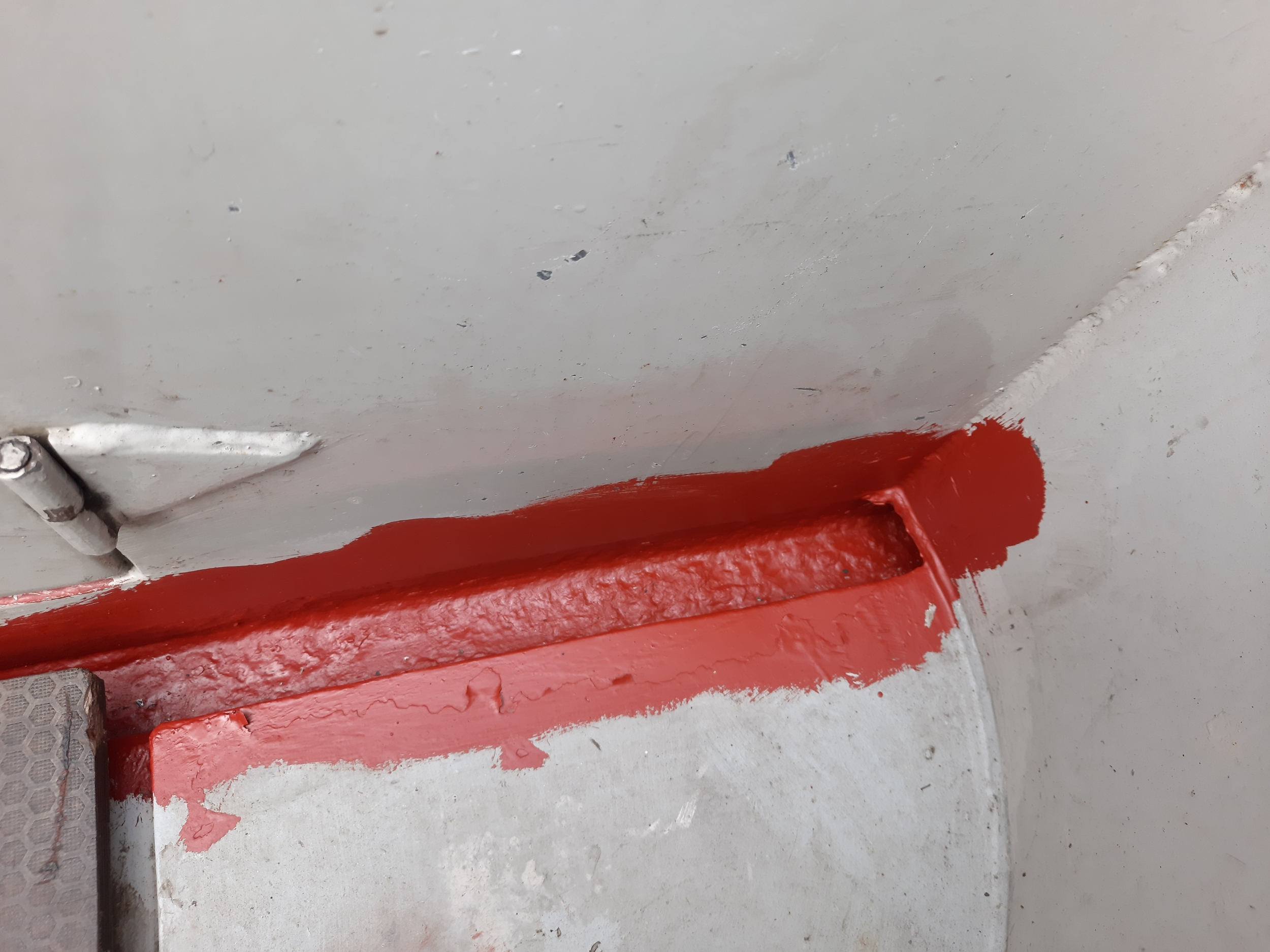

Rear deck drains opened out, so rust scale could be dealt with and kept under
control.
Rear deck drains opened out, so rust scale could be dealt with.
Rear deck drains opened out, so rust scale could be dealt with.
Rear deck drains opened out, so rust scale could be dealt with.
Rear deck drains opened out, so rust scale could be dealt with.
Rear deck drains opened out, so rust scale could be dealt with.

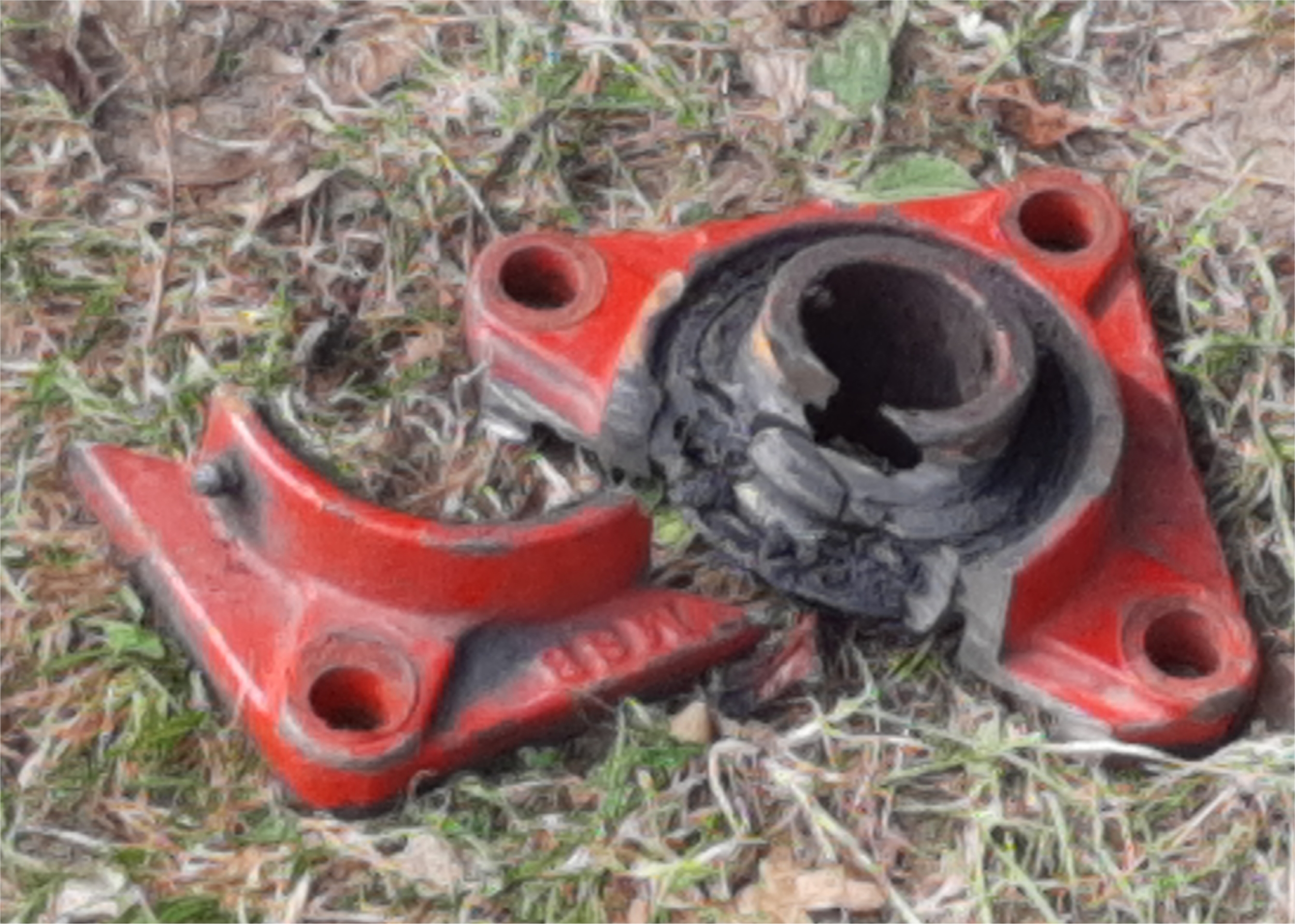

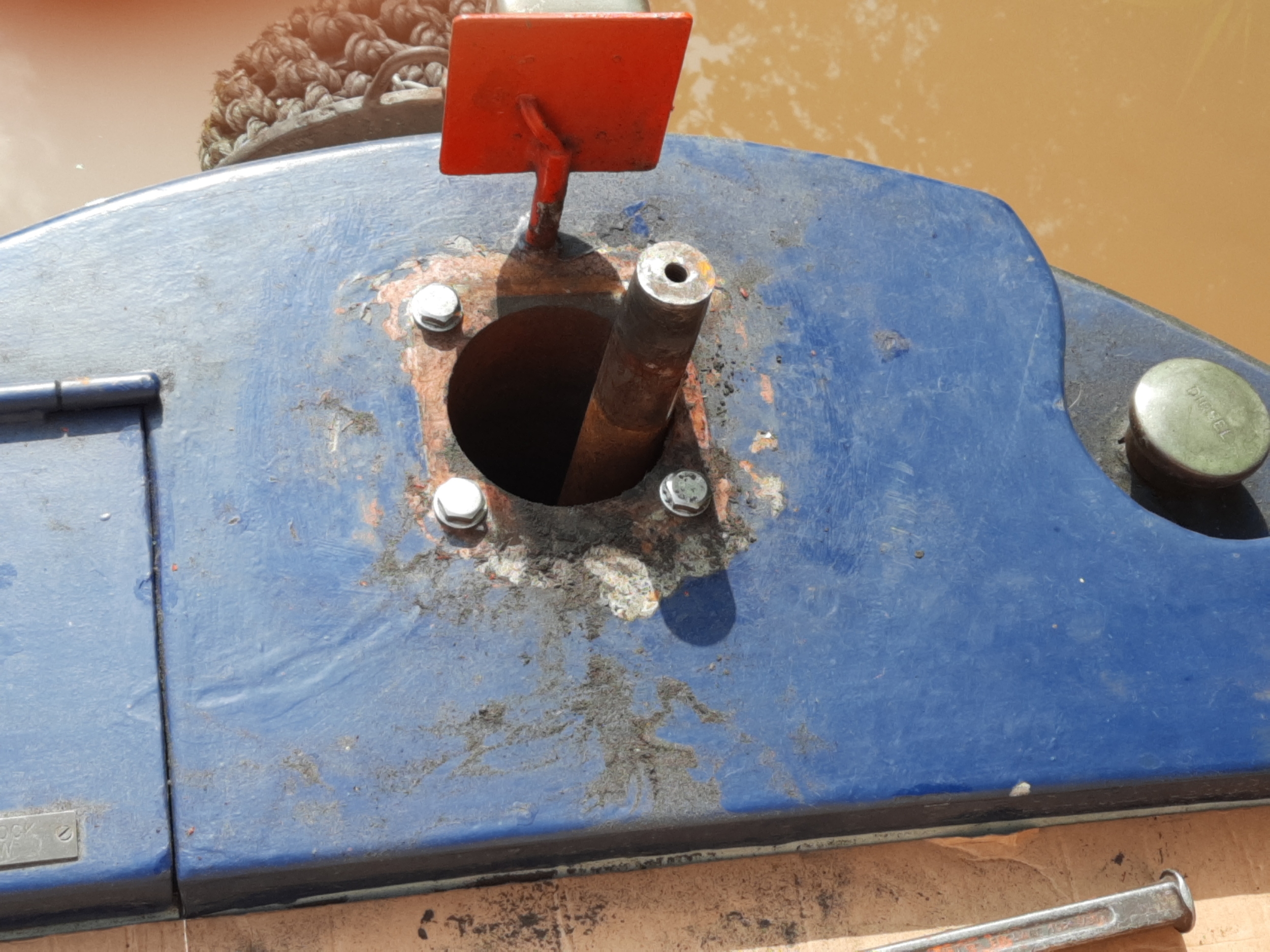

The last top rudder bearing proved a bugger to remove!

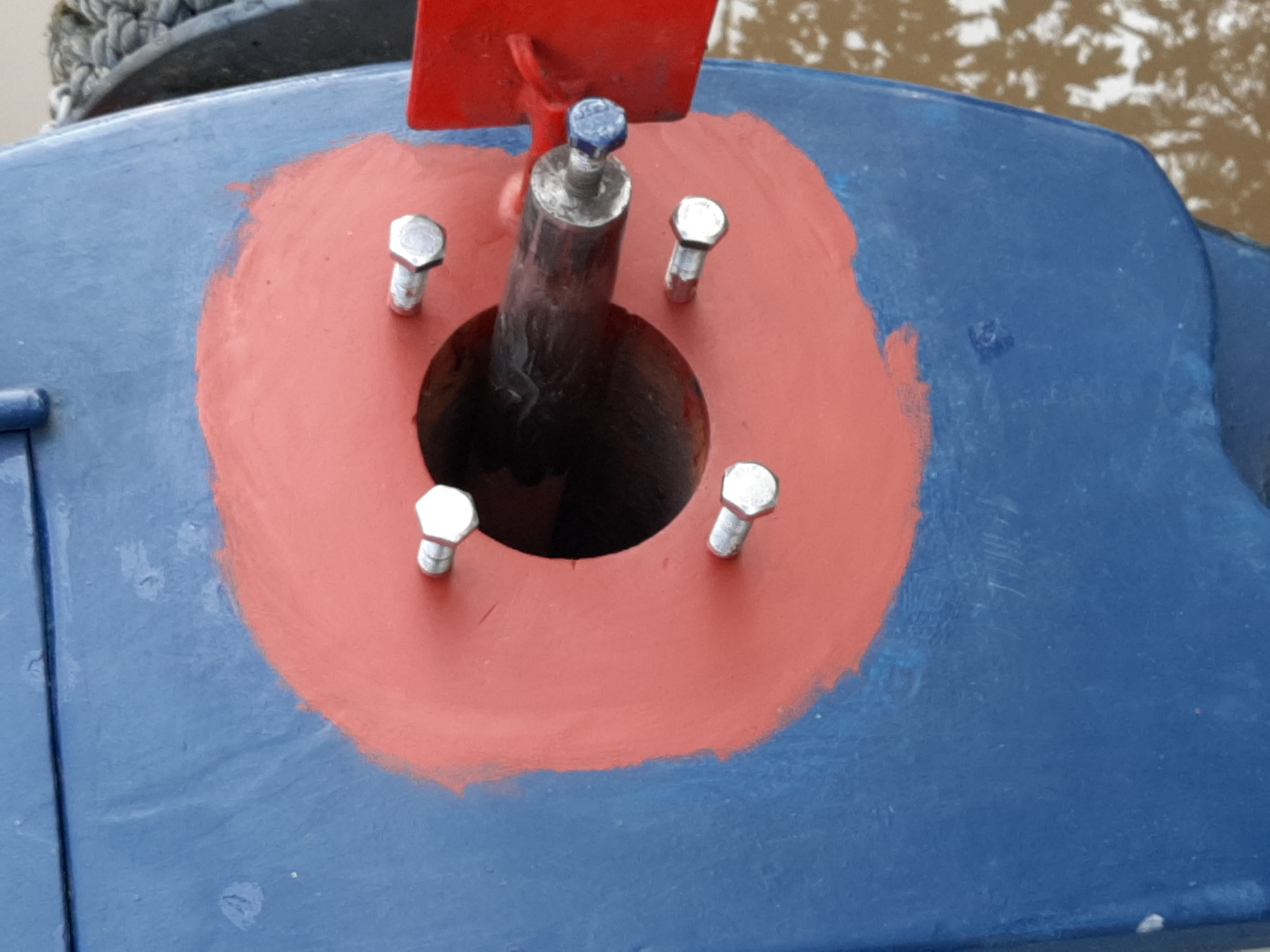

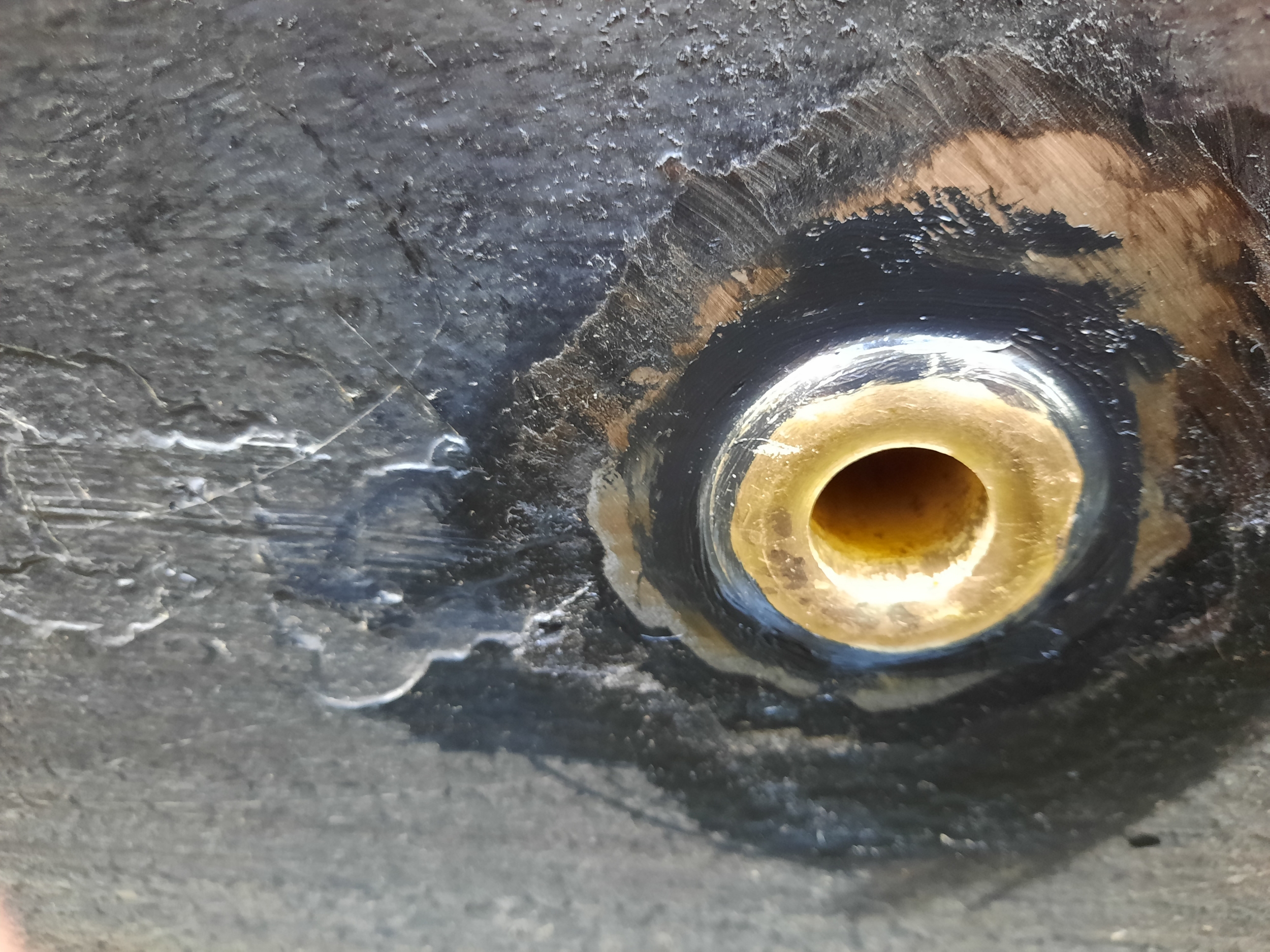

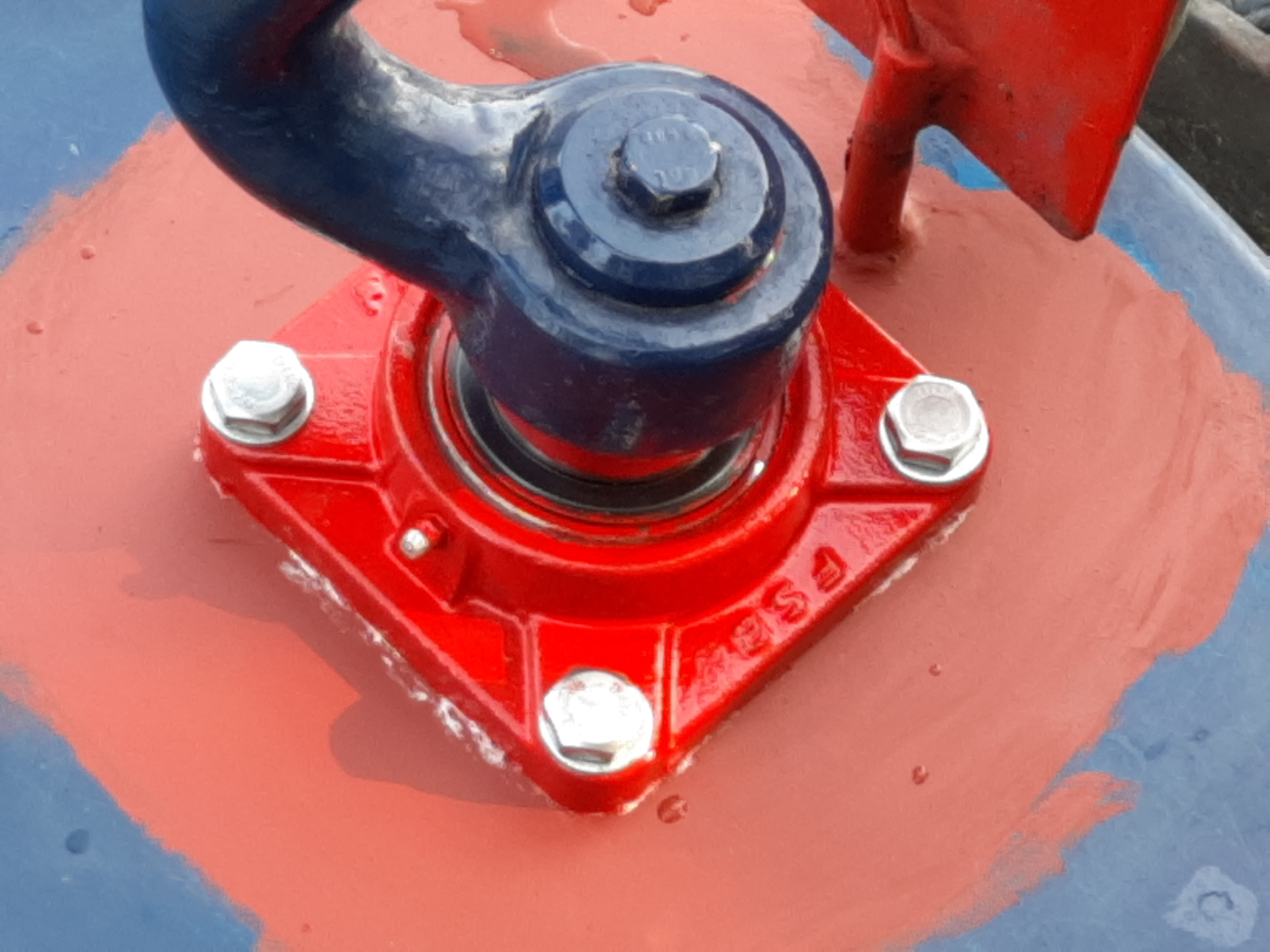

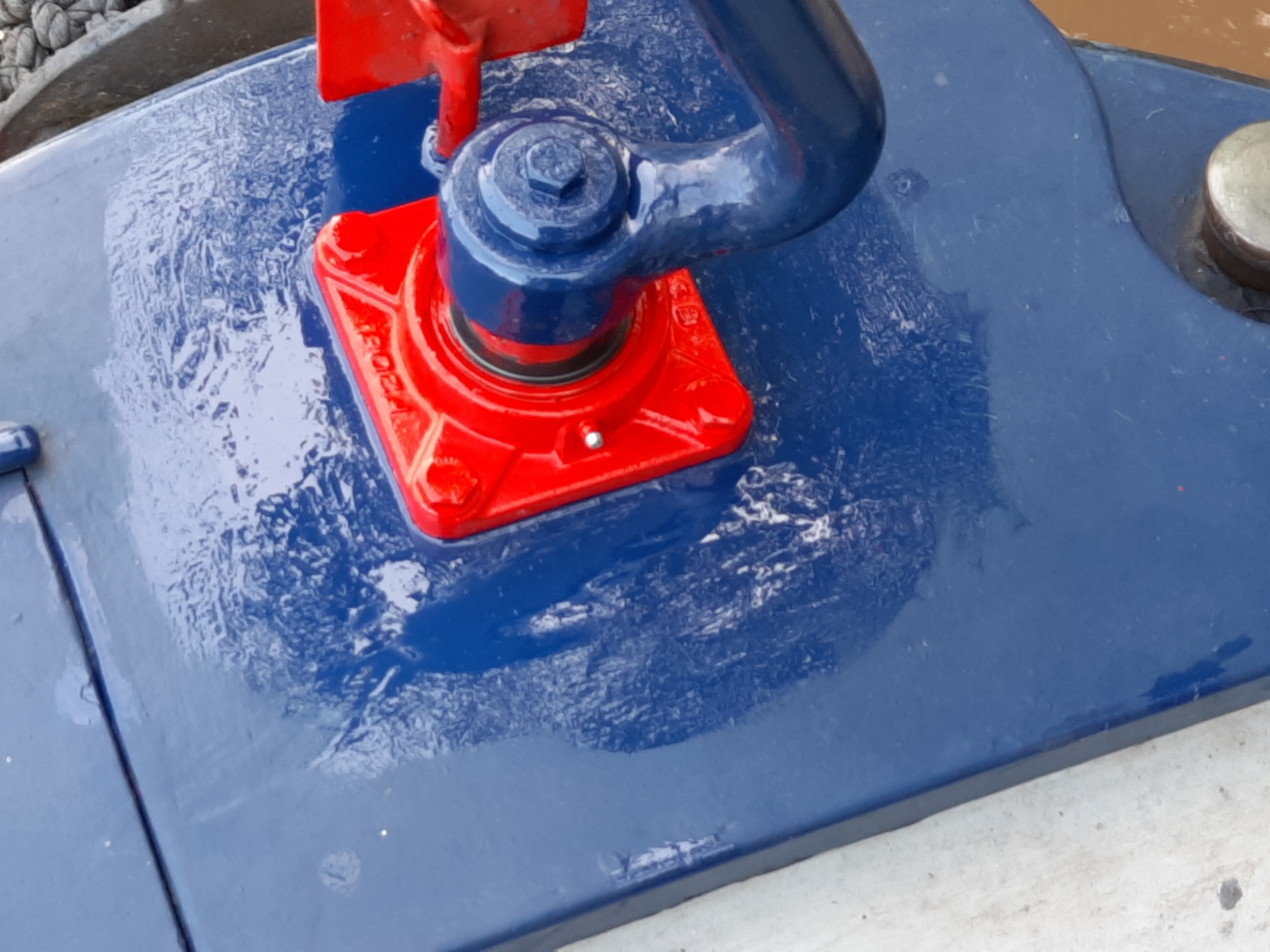

Top rudder bearing replacement. The shaft has now been sanded down and kept
greased, so it does not rust onto bearing cup.
Top rudder bearing replacement. Bolt size increased, as one thread was stripped.
Top rudder bearing replacement.
Top rudder bearing replacement.

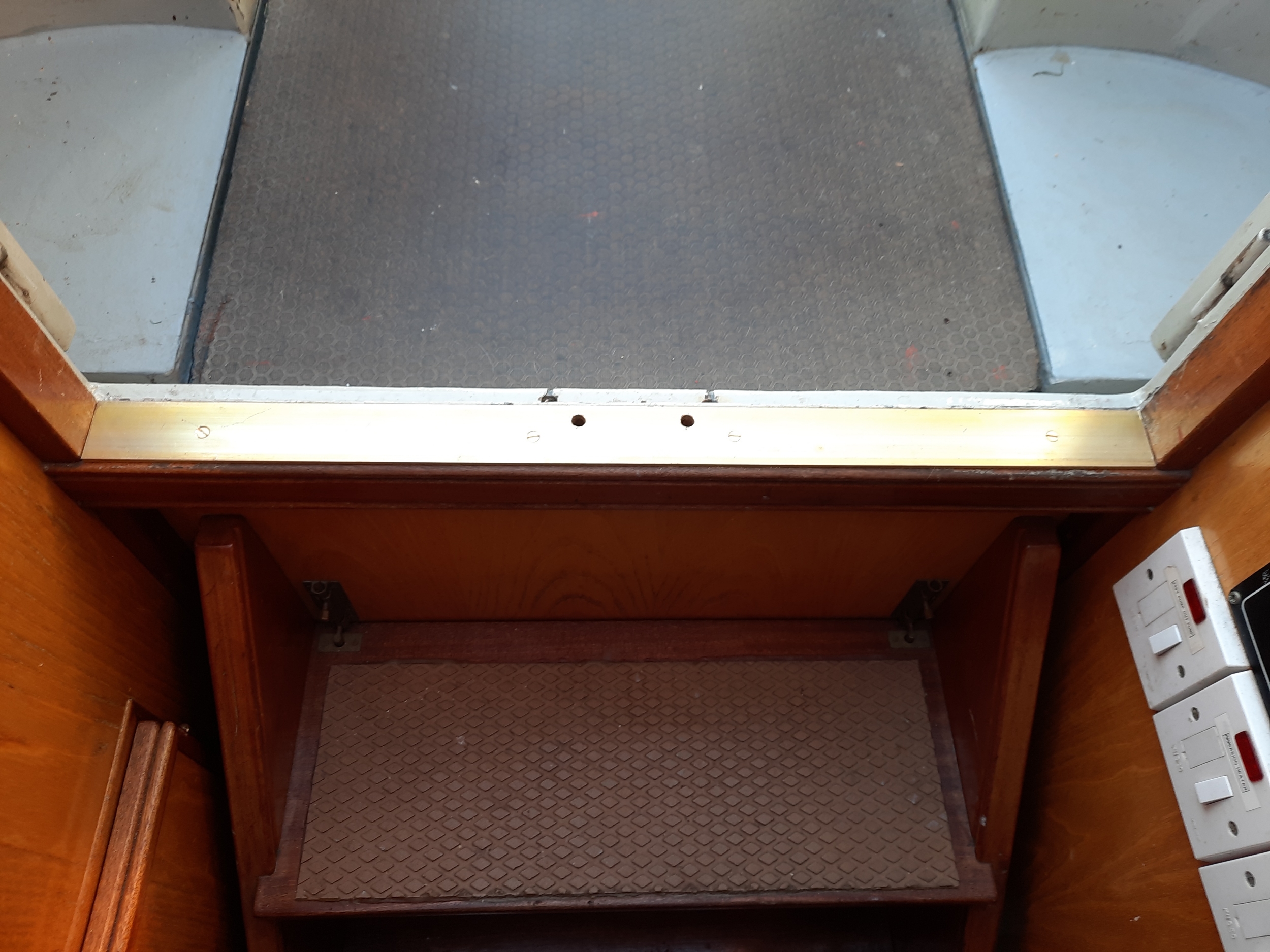

Rear doors threshold brass plate, with bolt holes. Similar added to front doors
threshold.

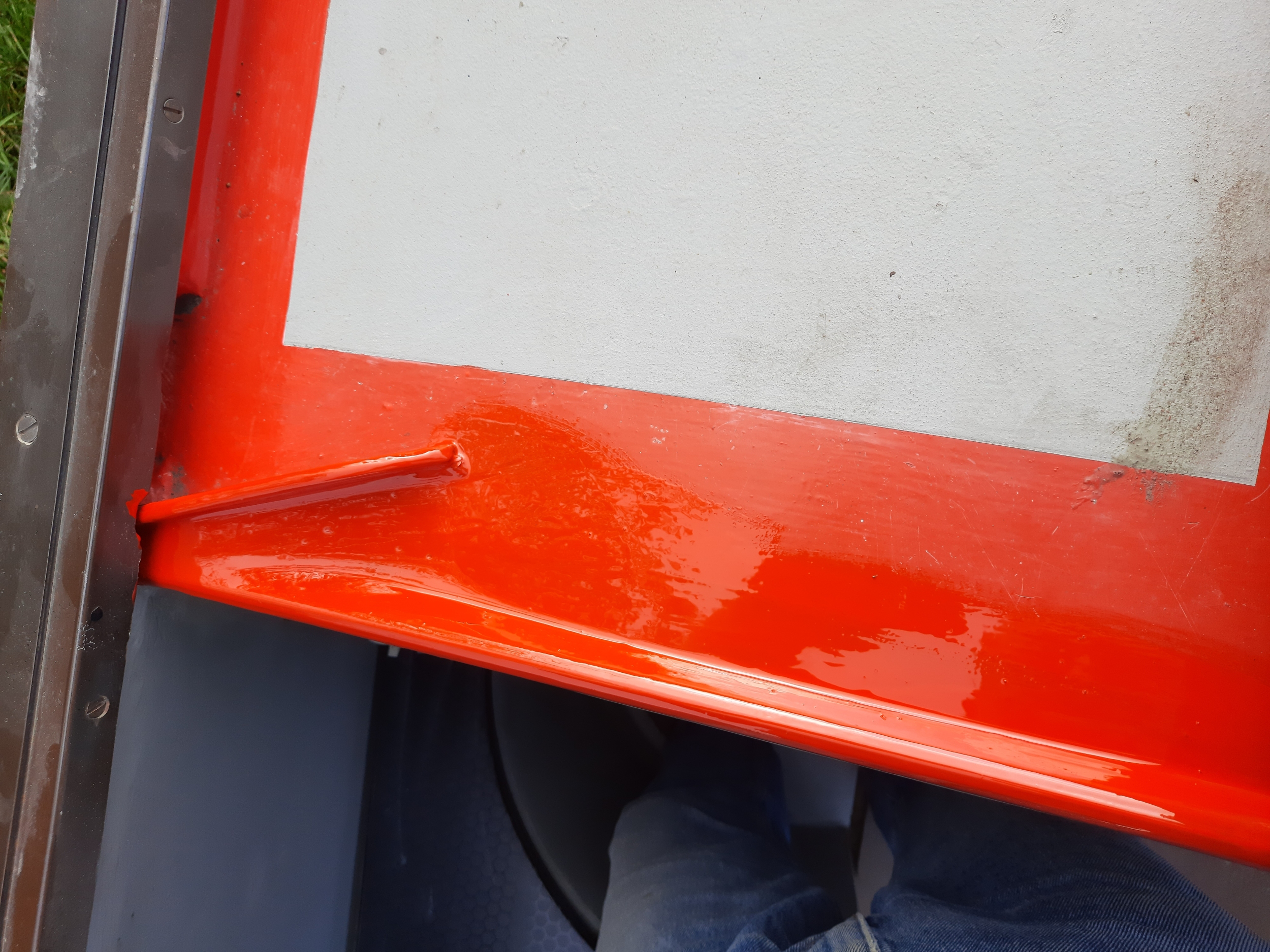

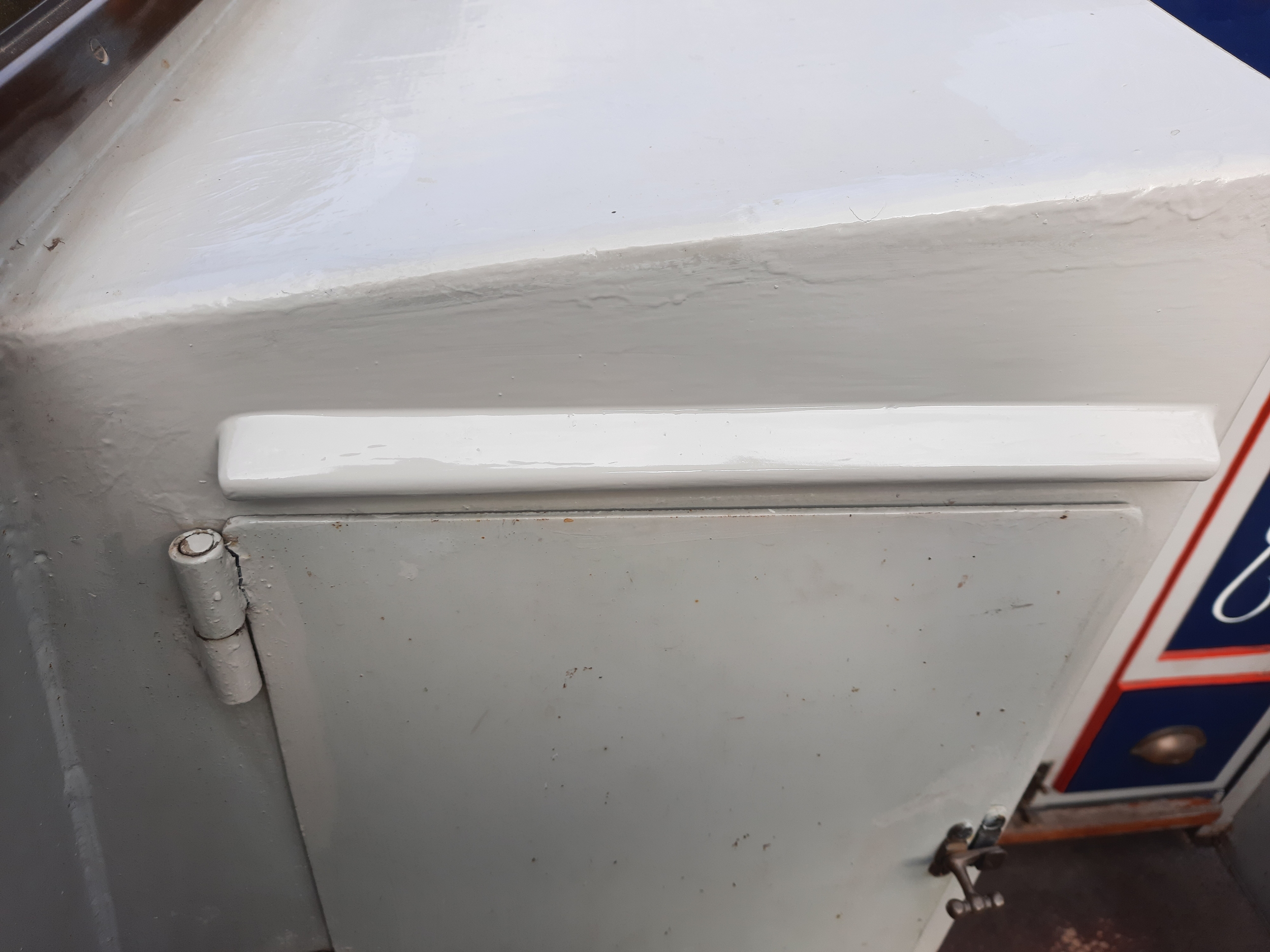

Metal filler to stop water ponding behind water deflector.
Metal filler water deflector. End removed, so doors can now be removed.

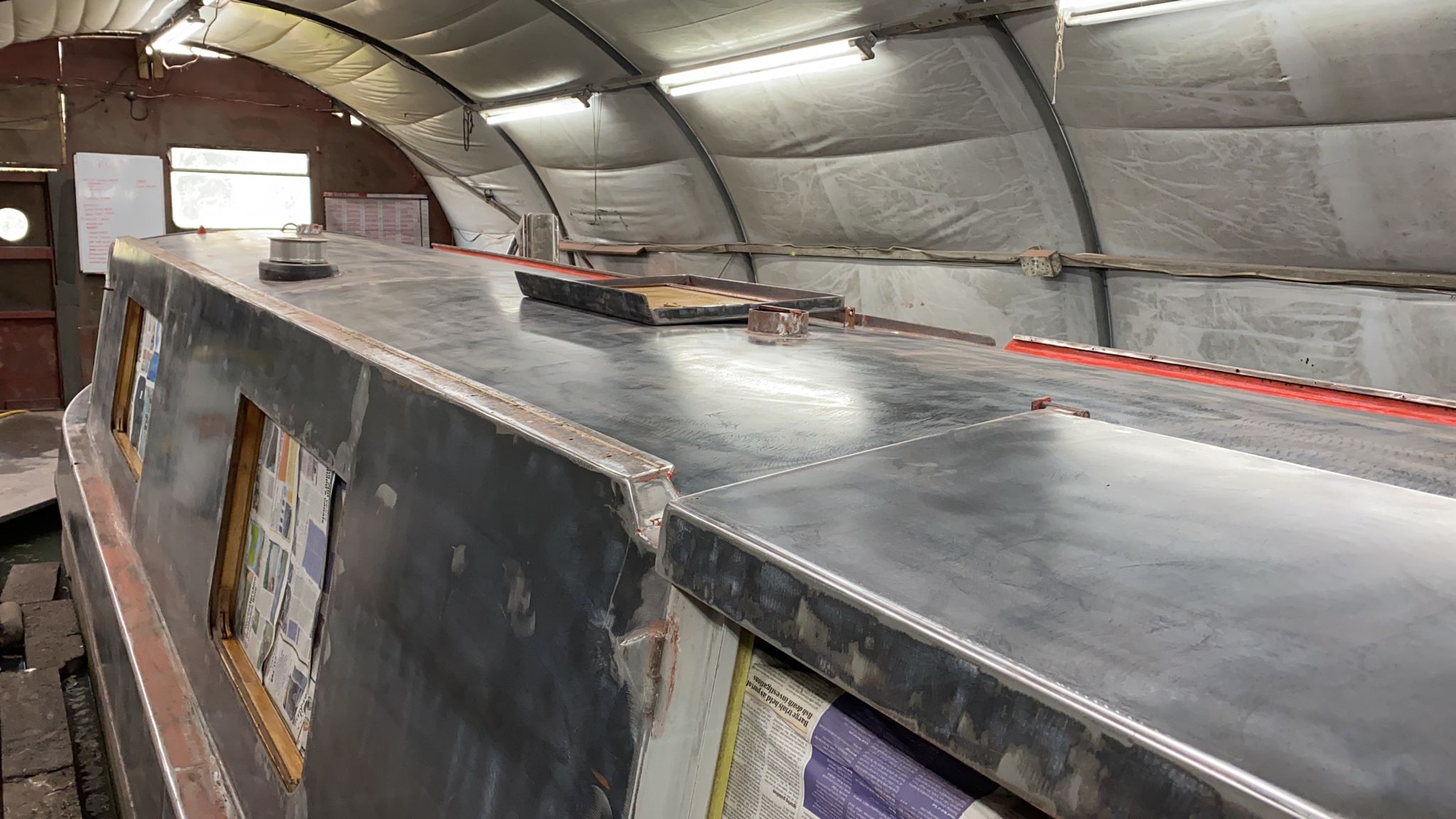

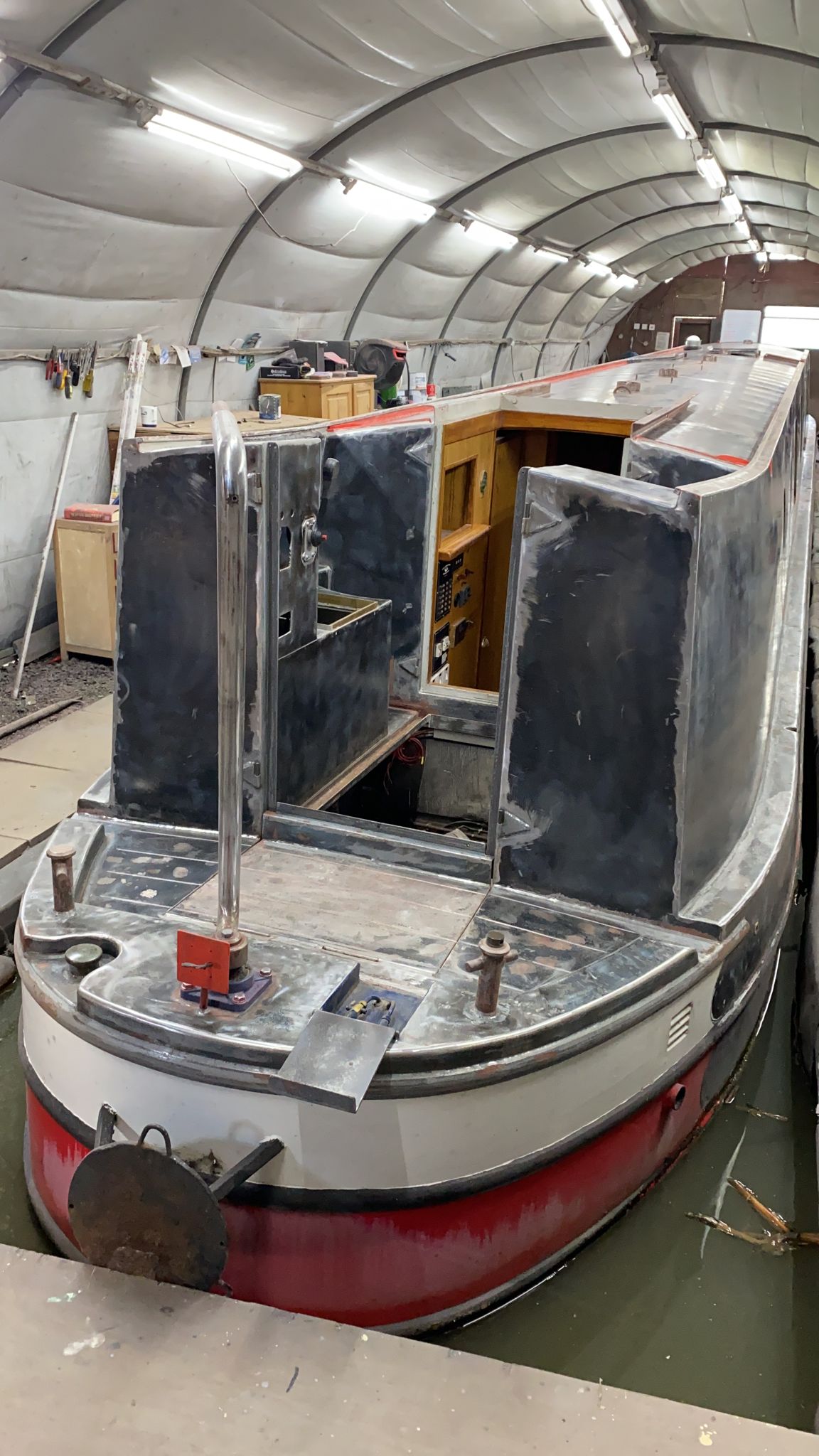

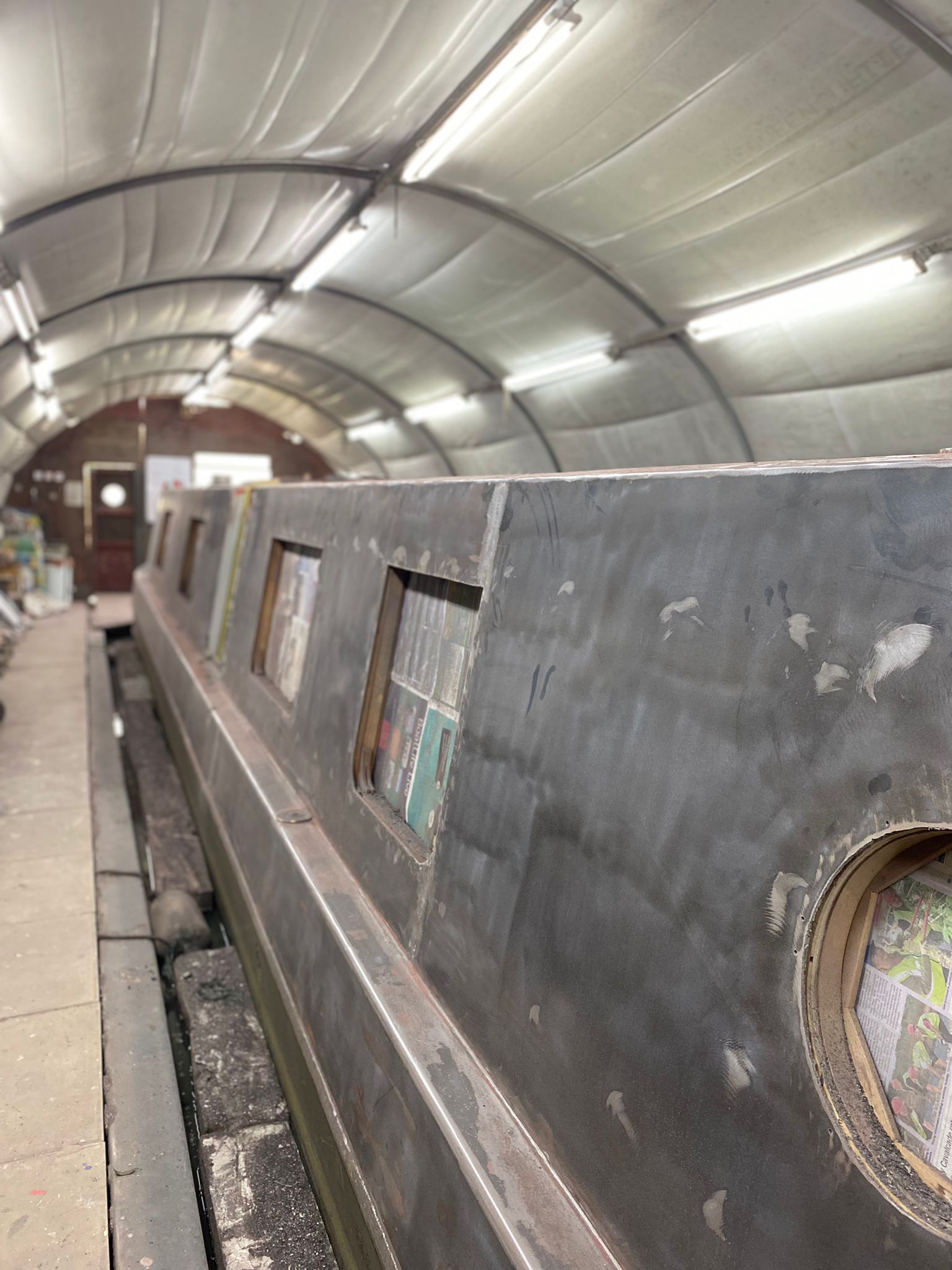

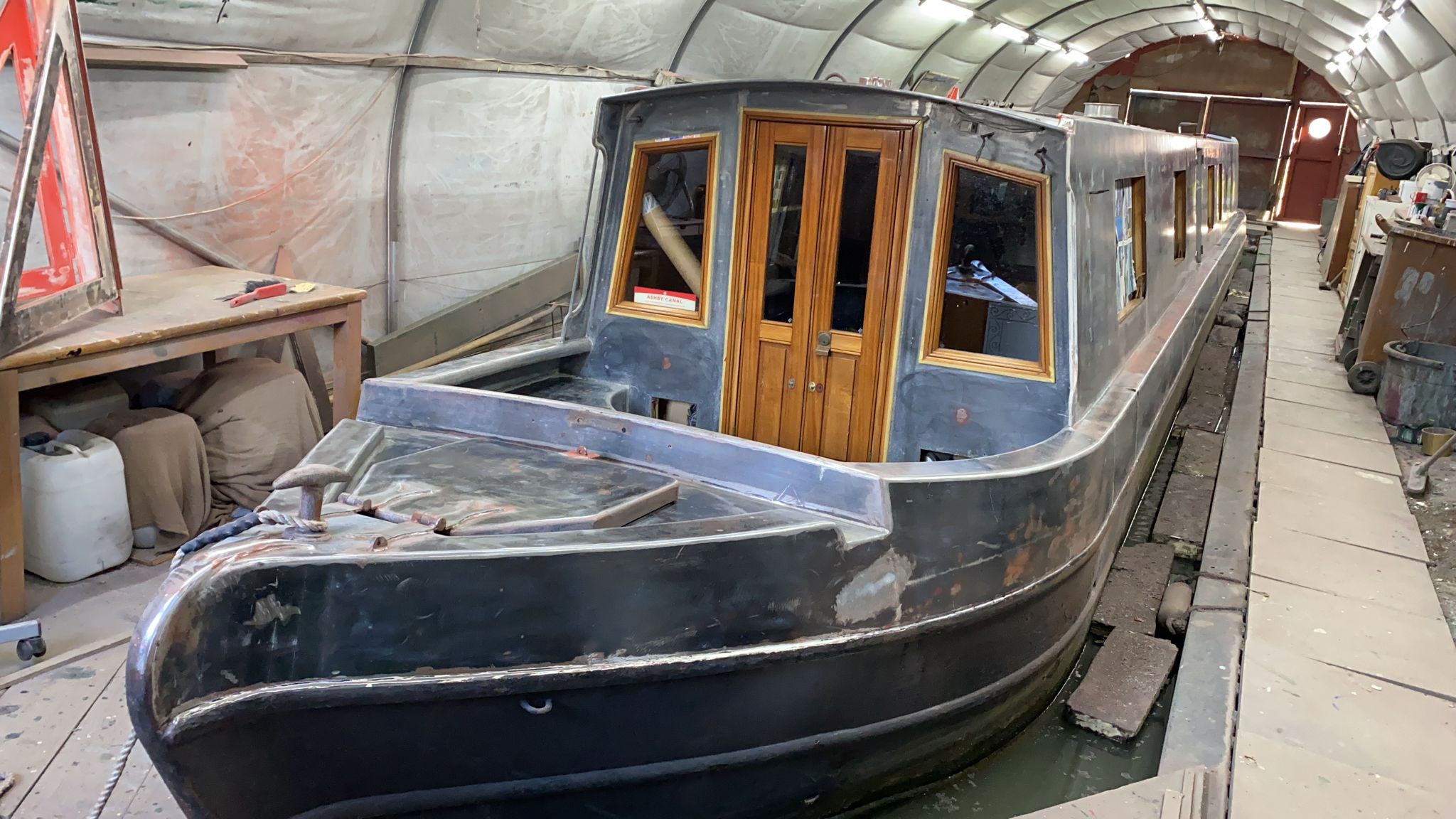

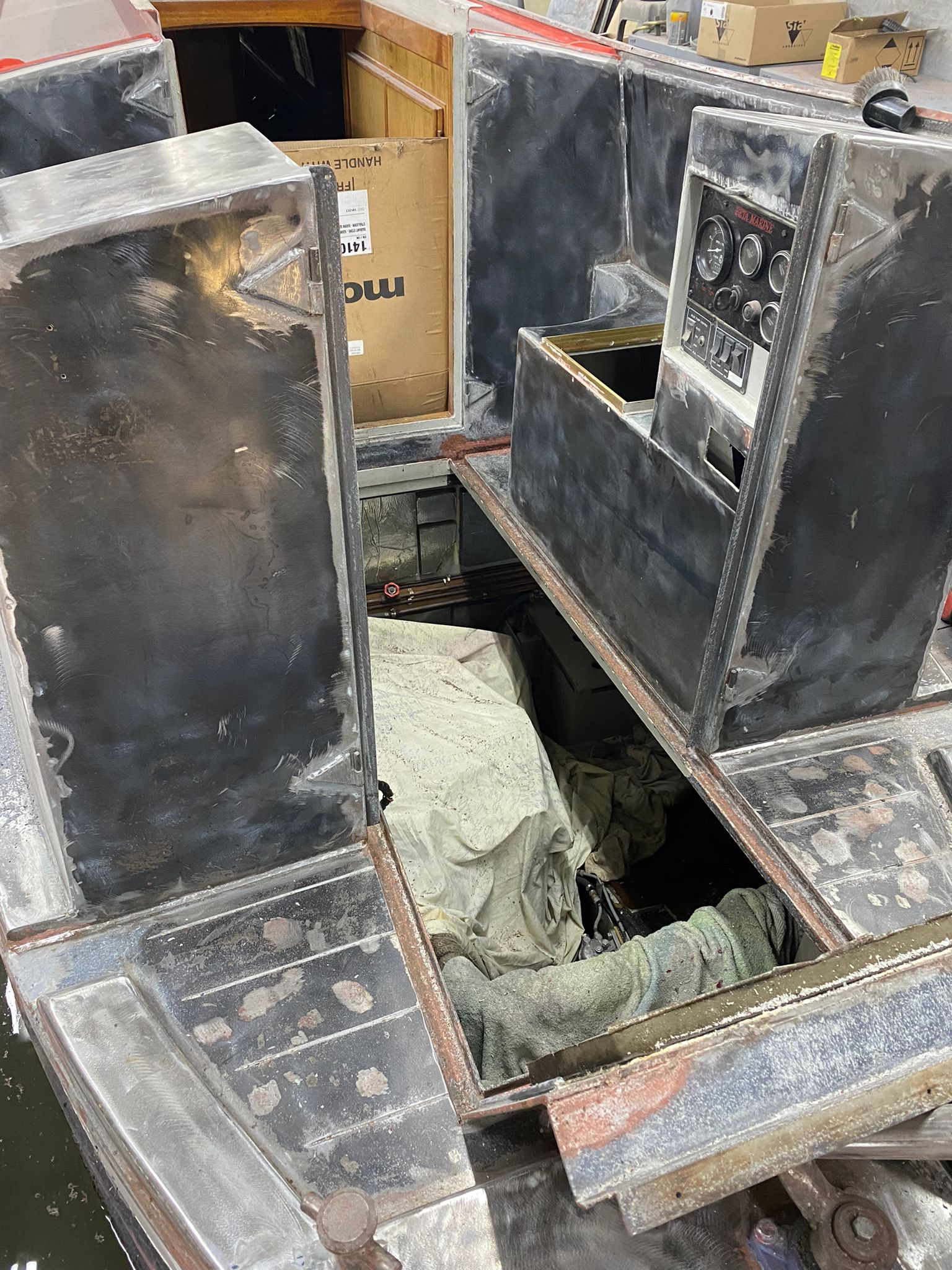

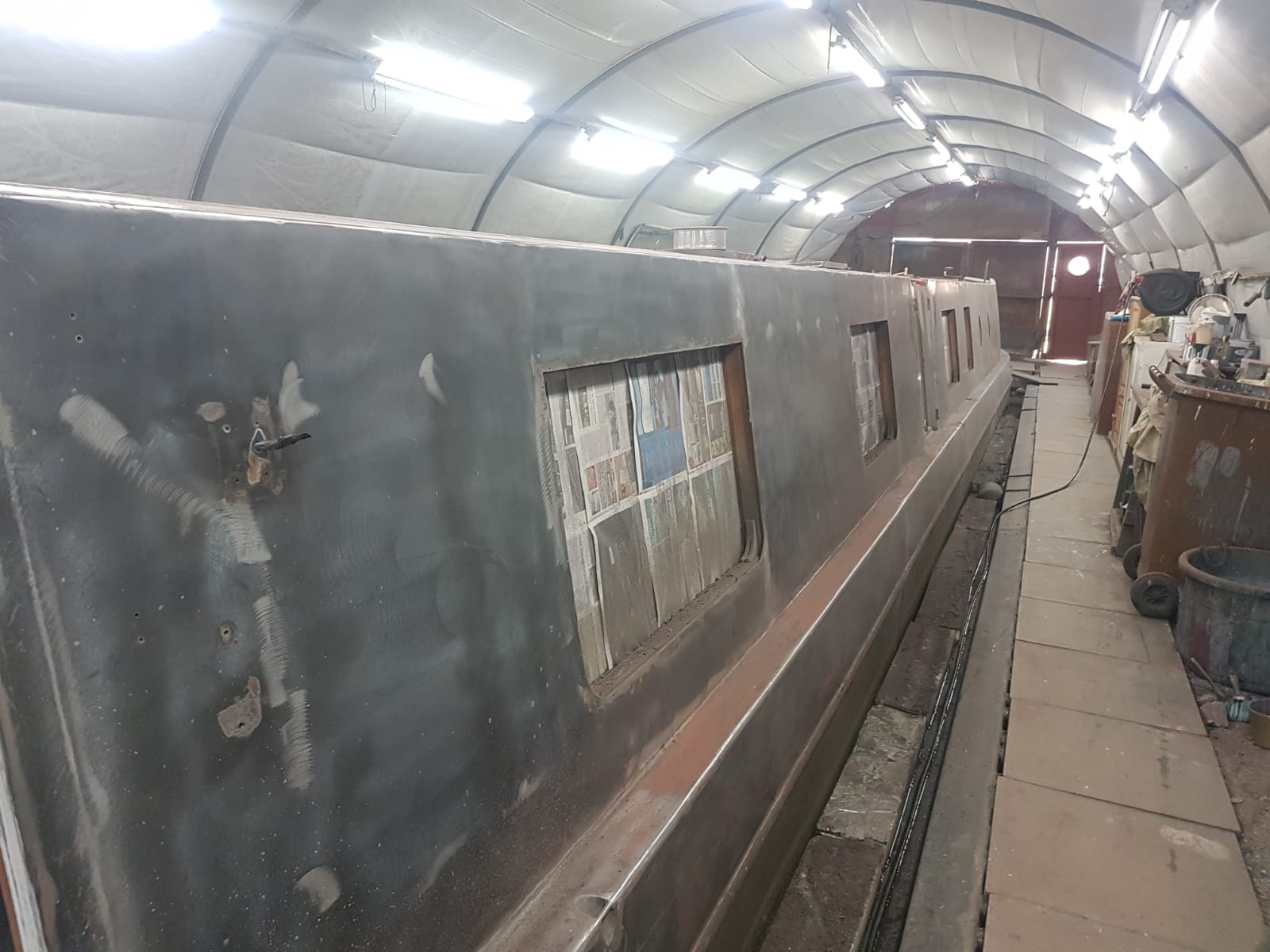

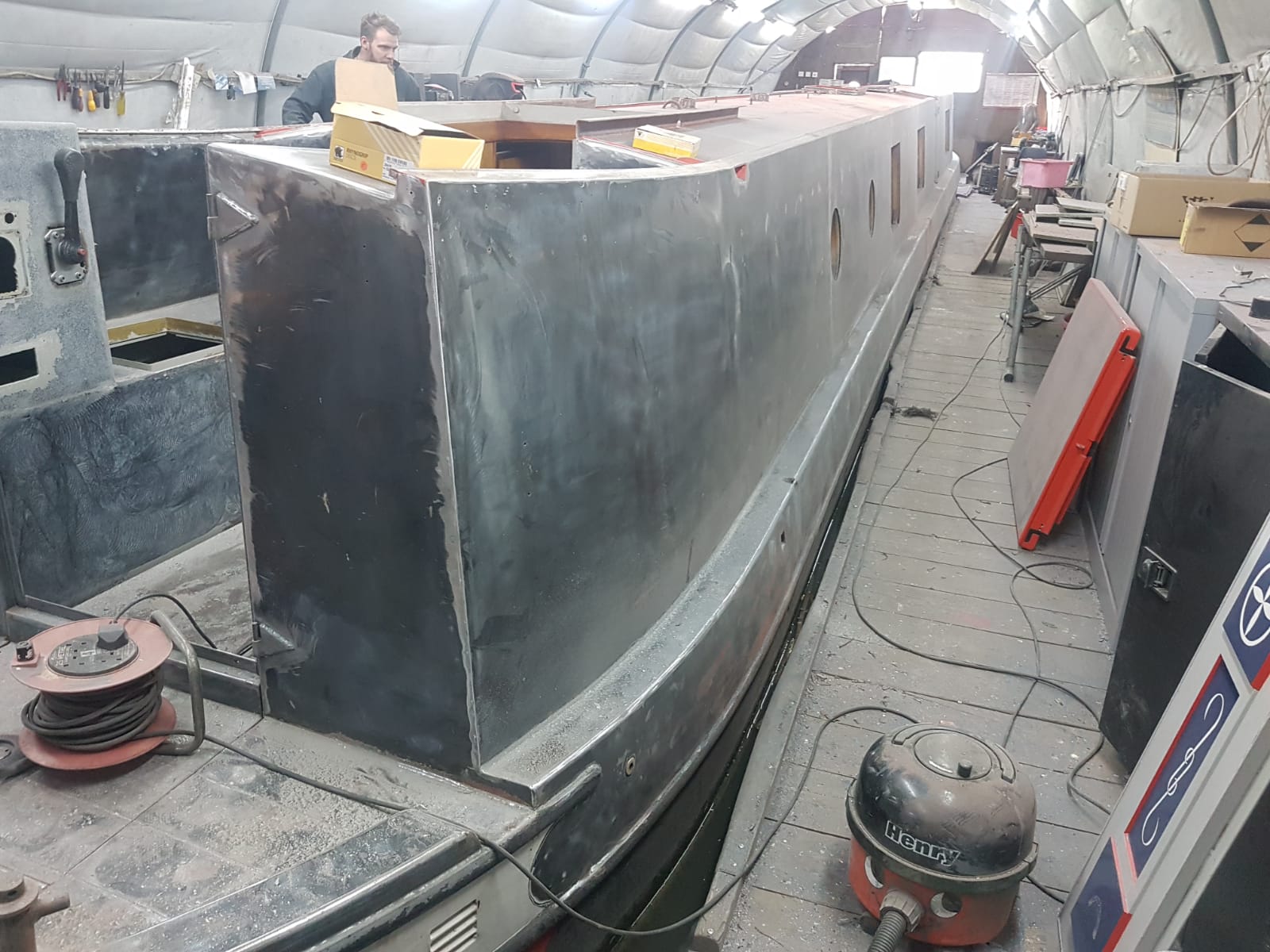

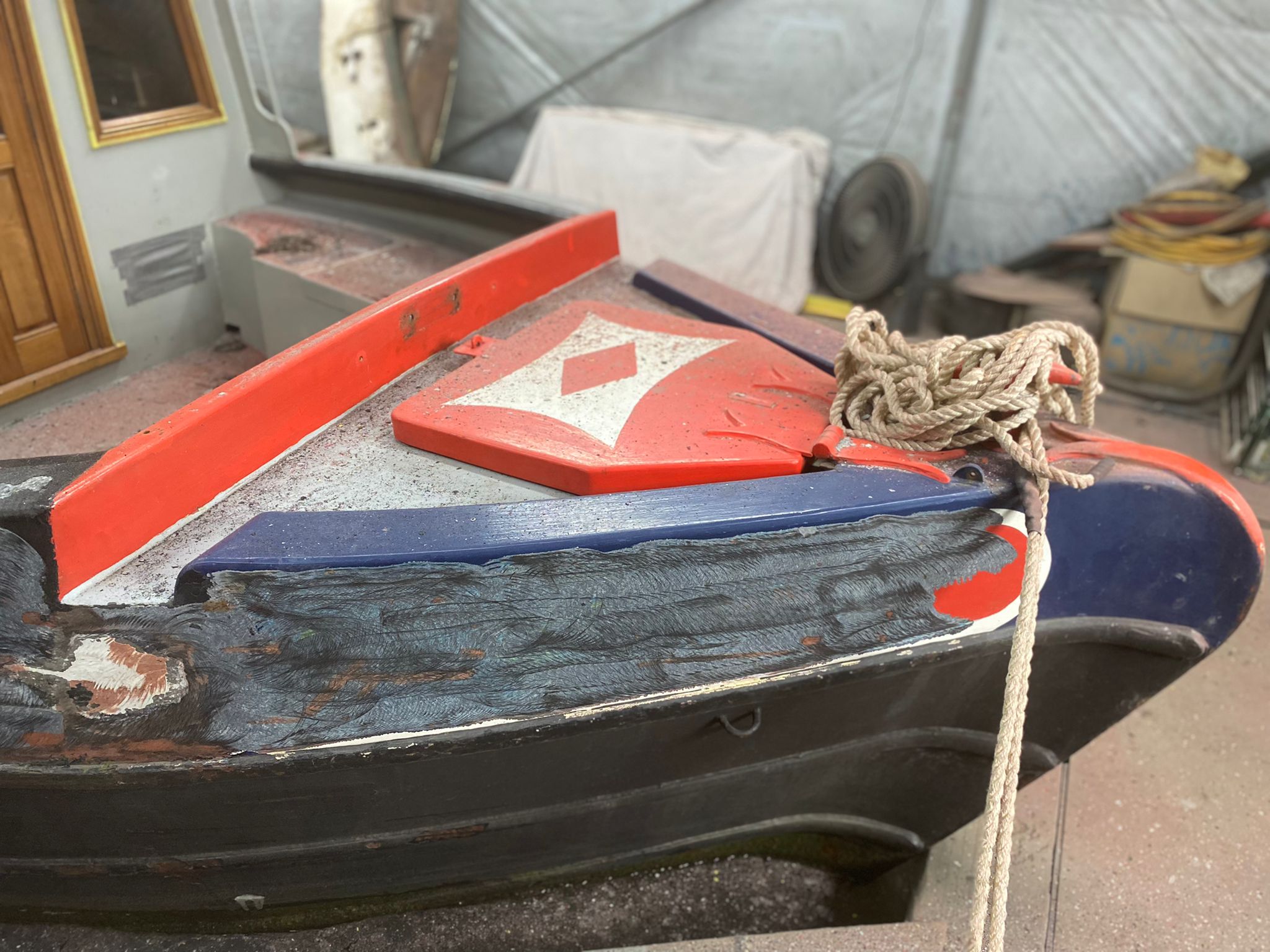

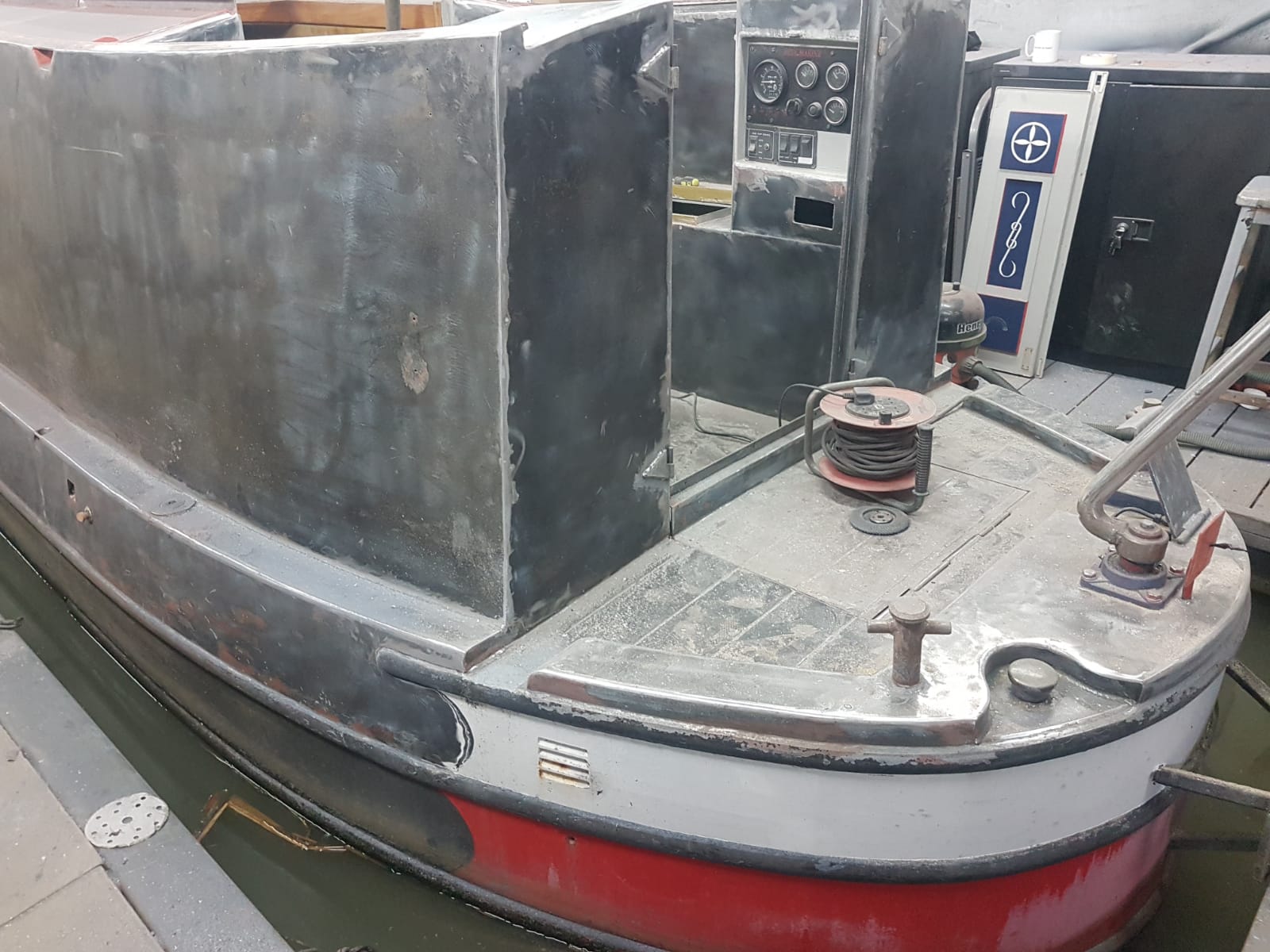

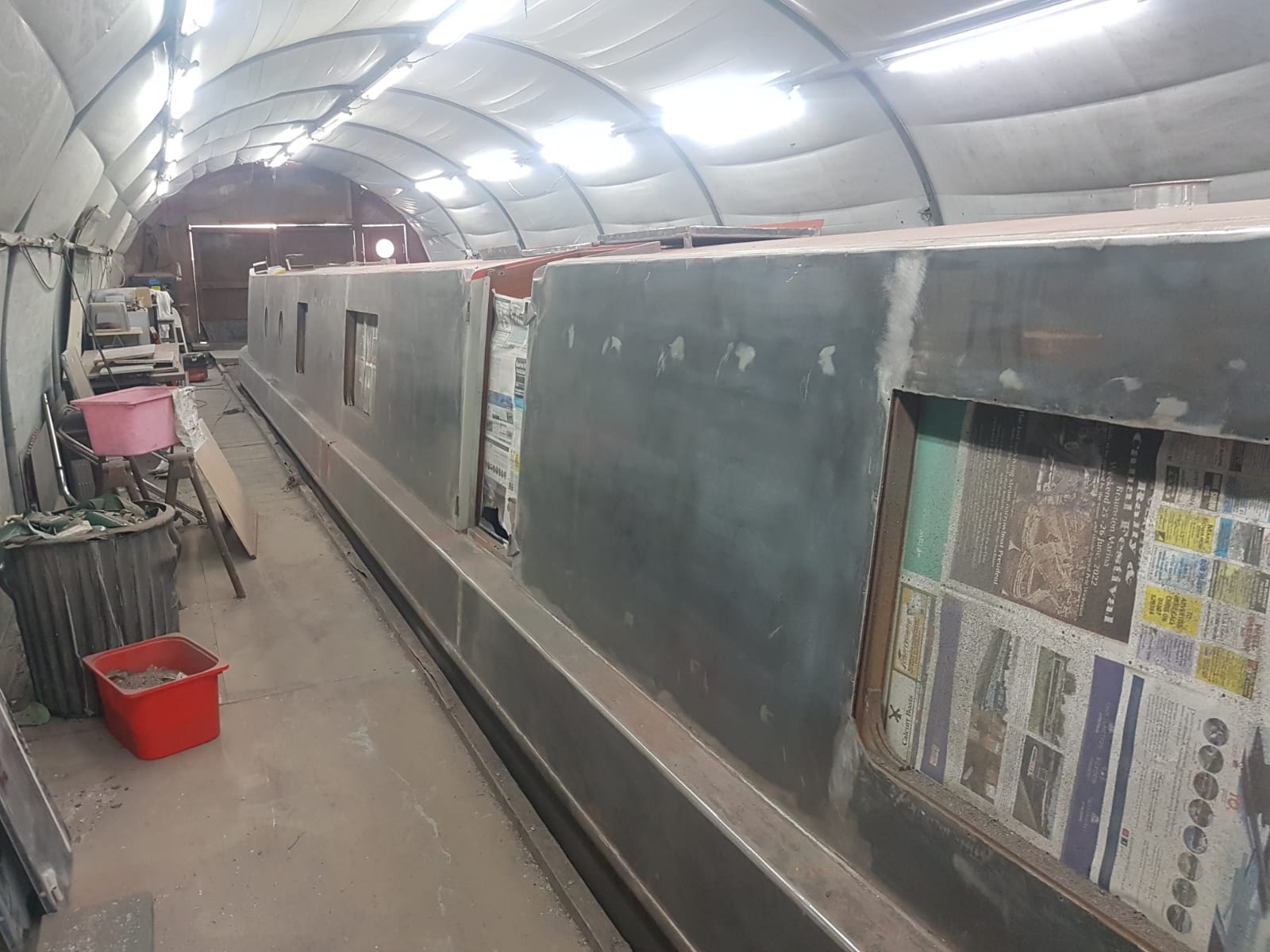

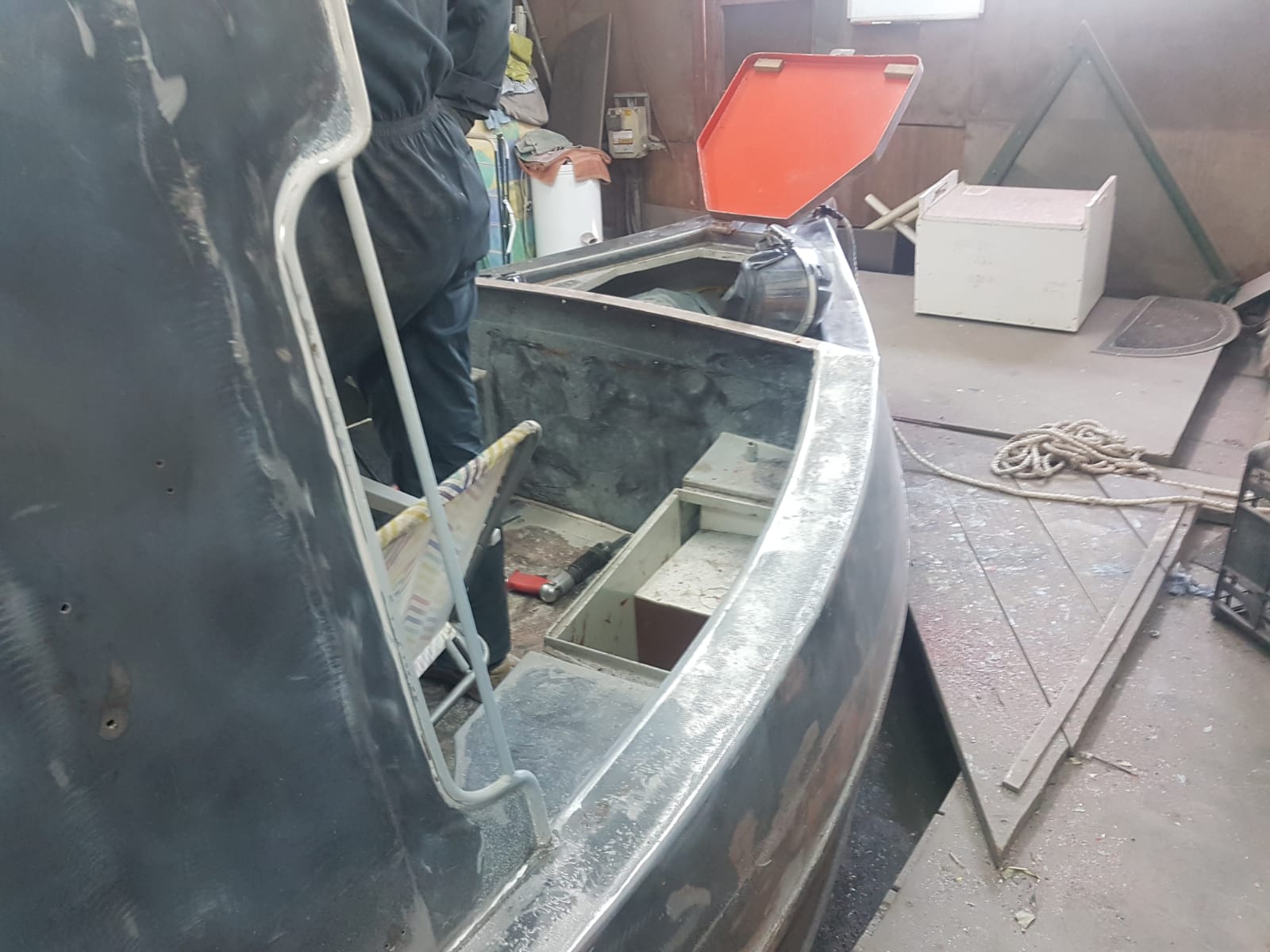

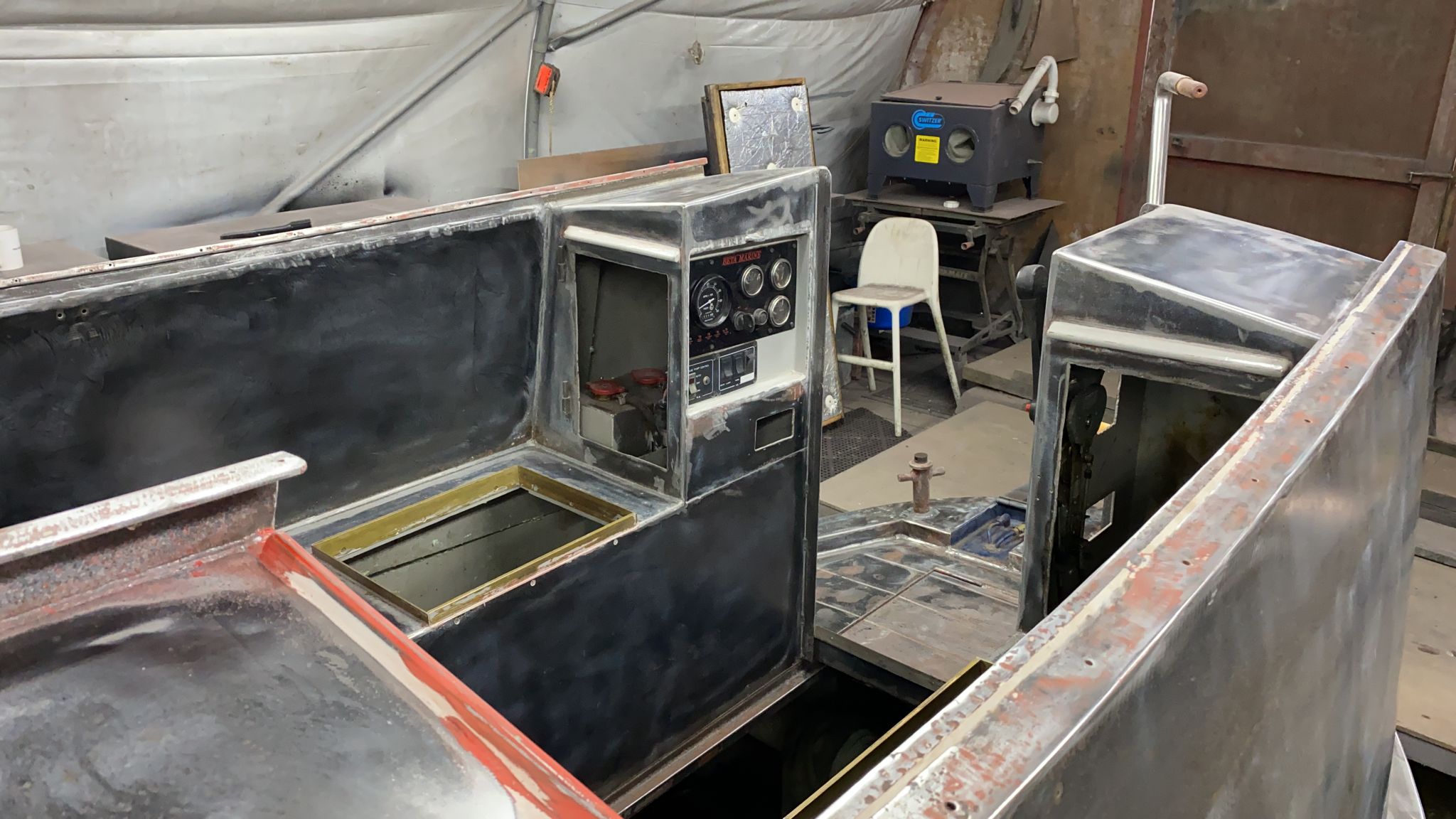

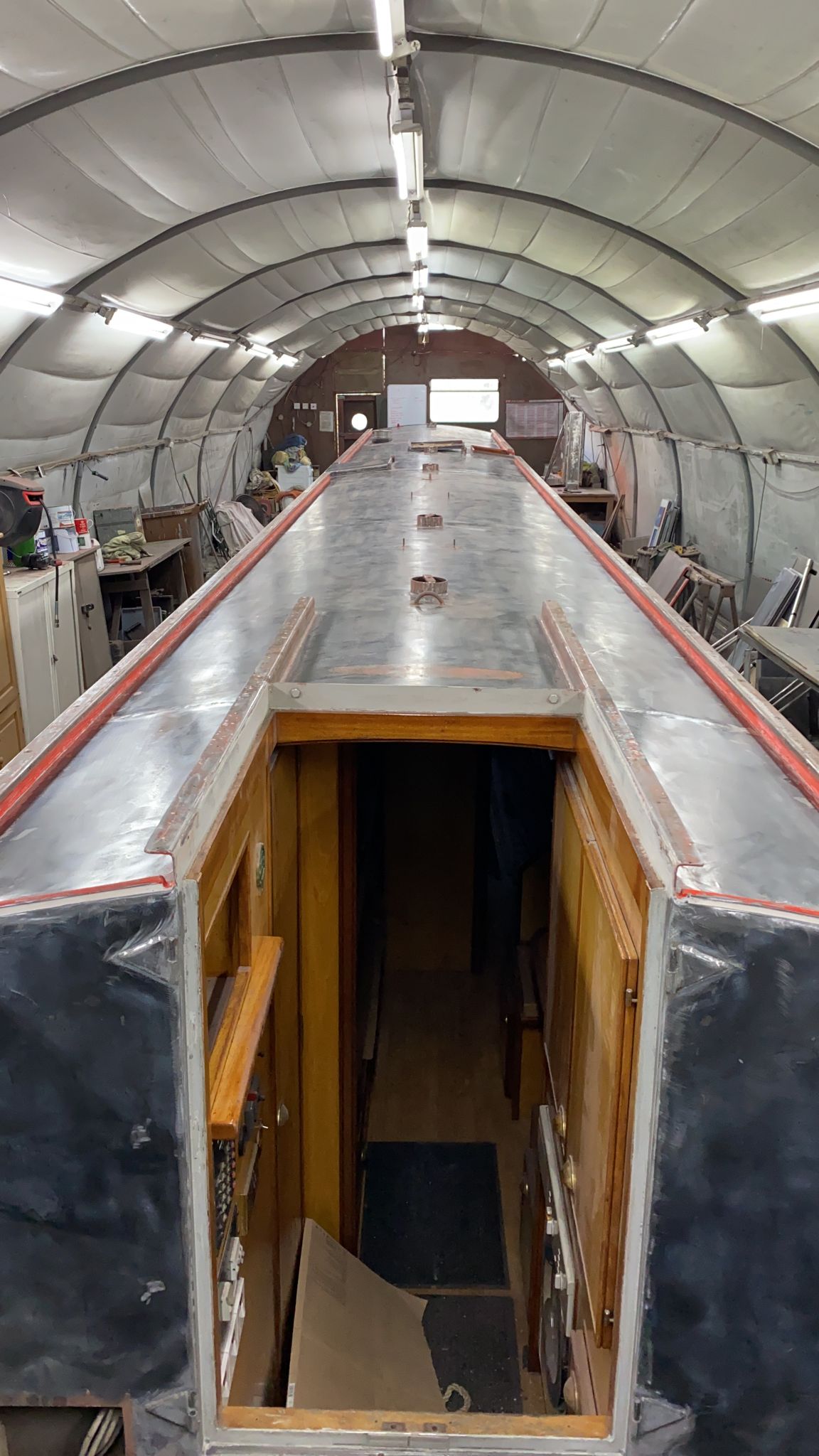

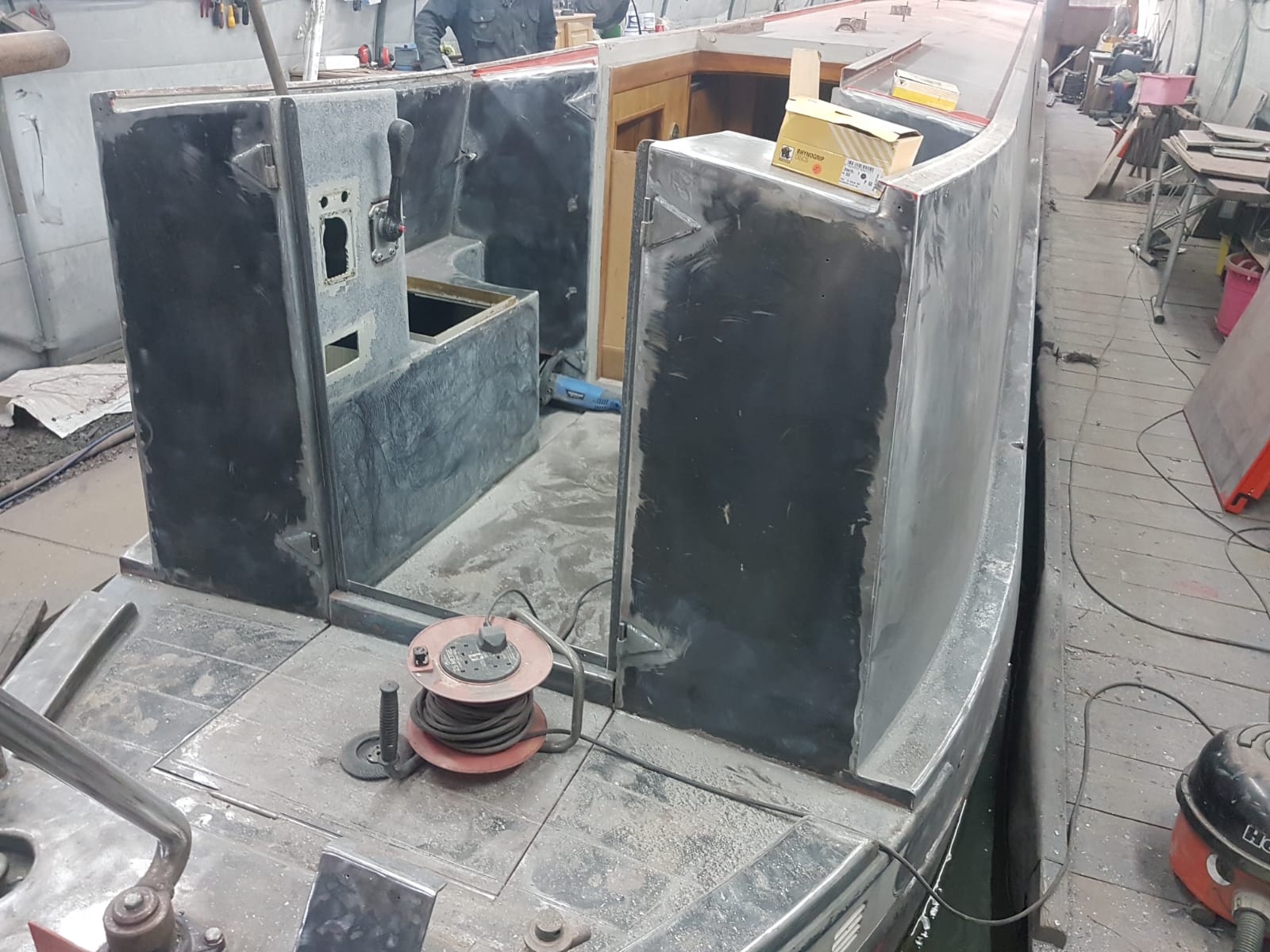

Earnest stripped of hardware, ready for windows to be removed and paint
stripping.
.jpg)

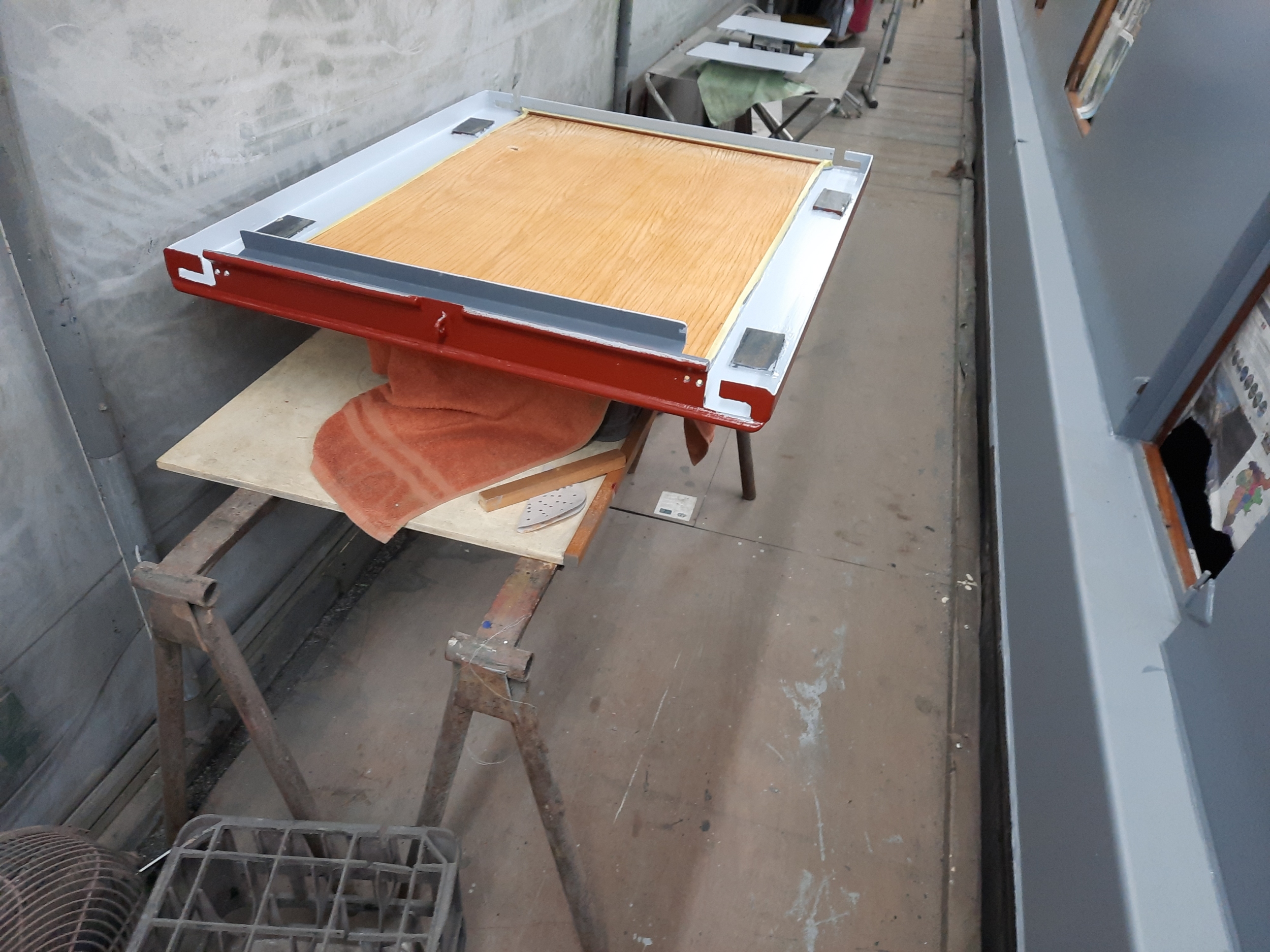

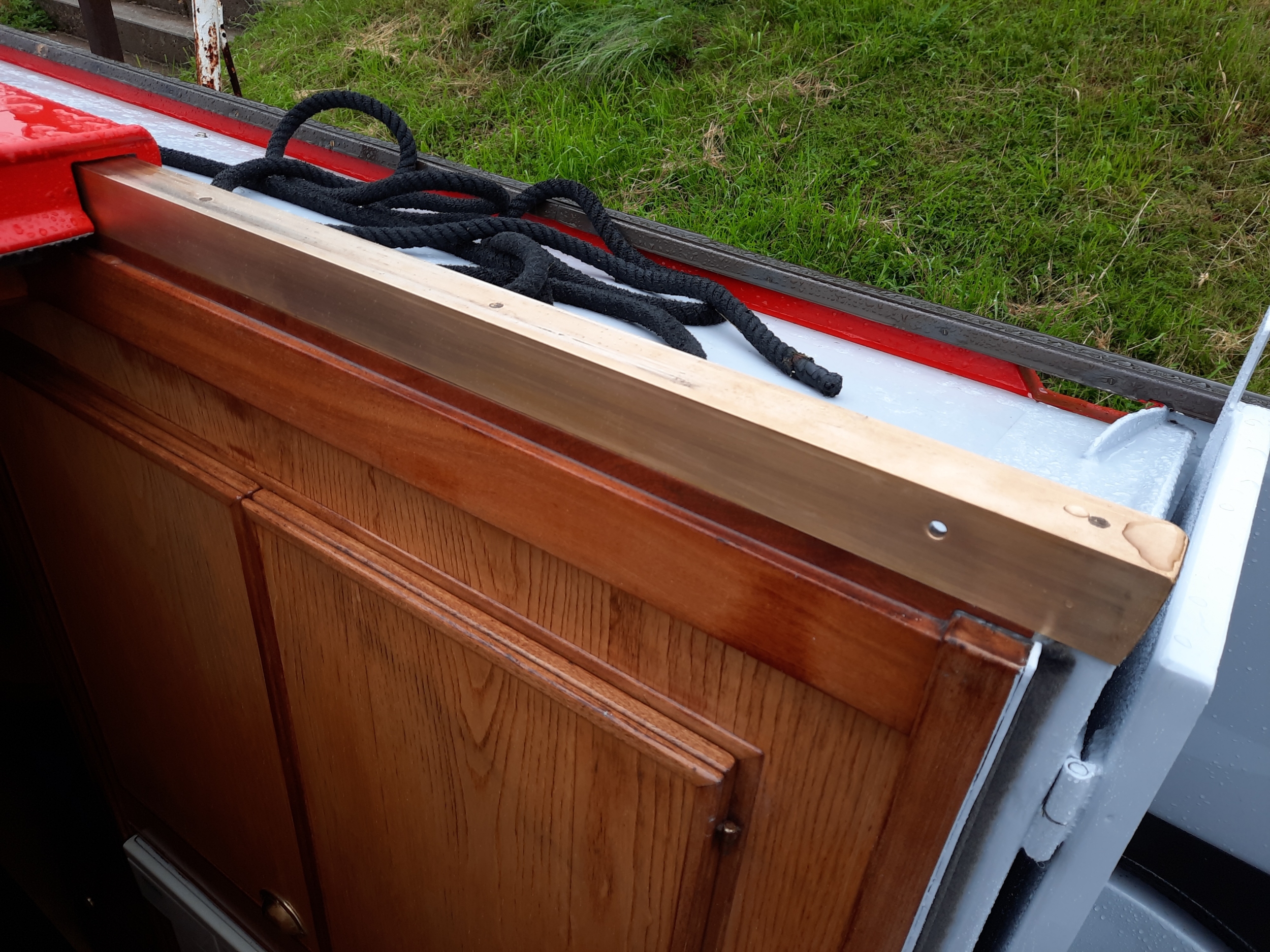

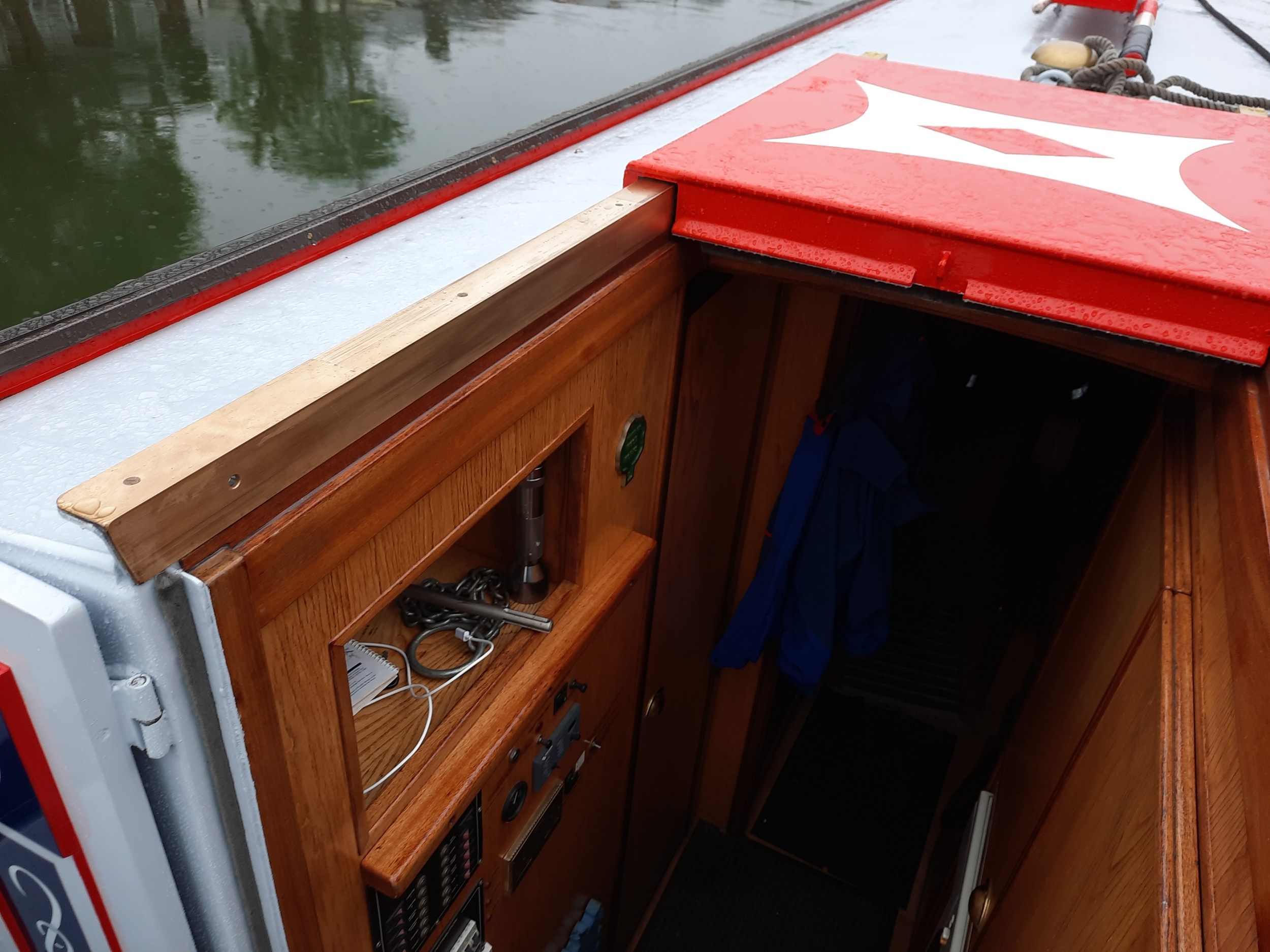

New brass angle rear slide runners. The slide now has polypropylene side
runners.
Writing done by Signey Steve

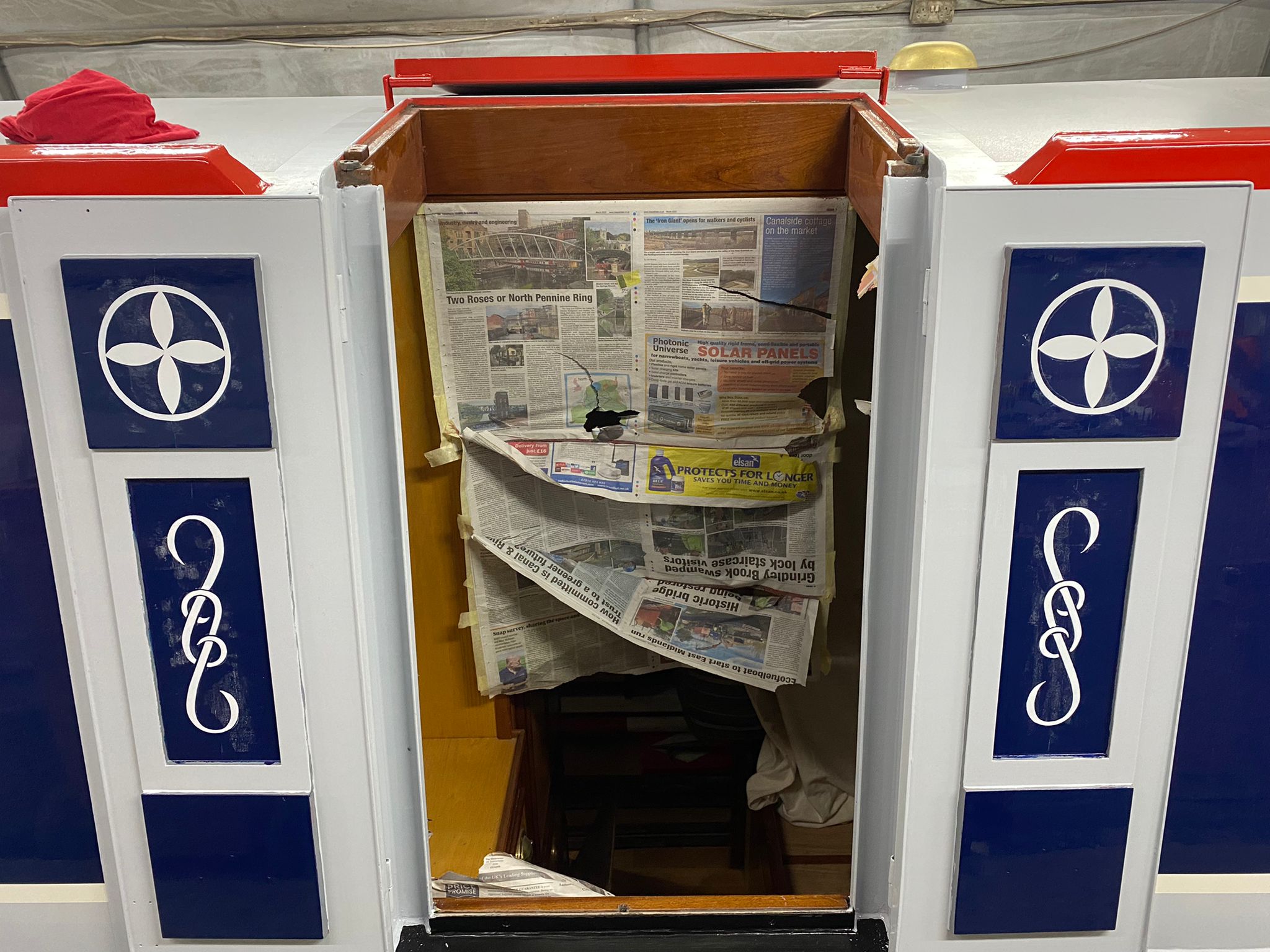

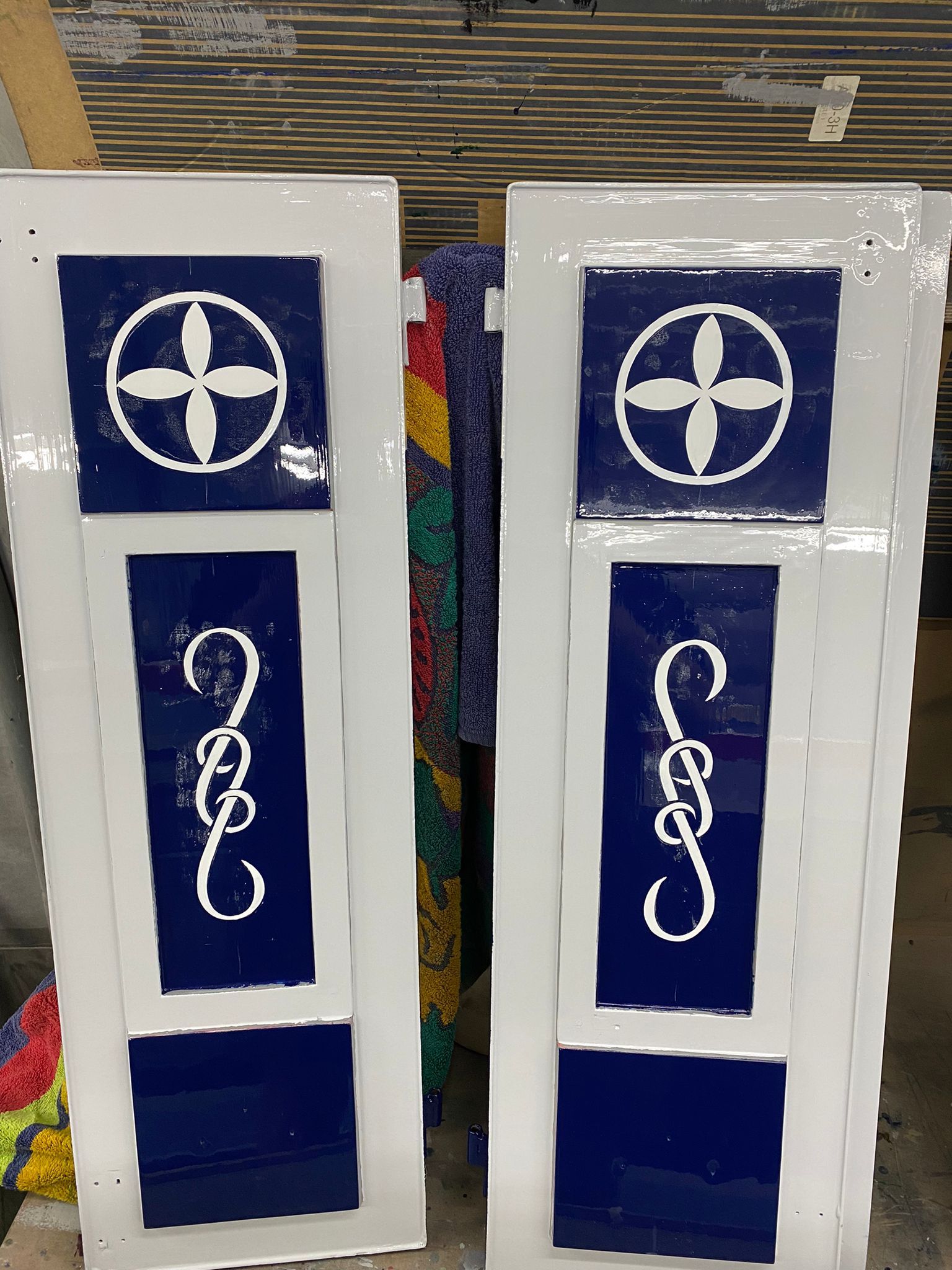

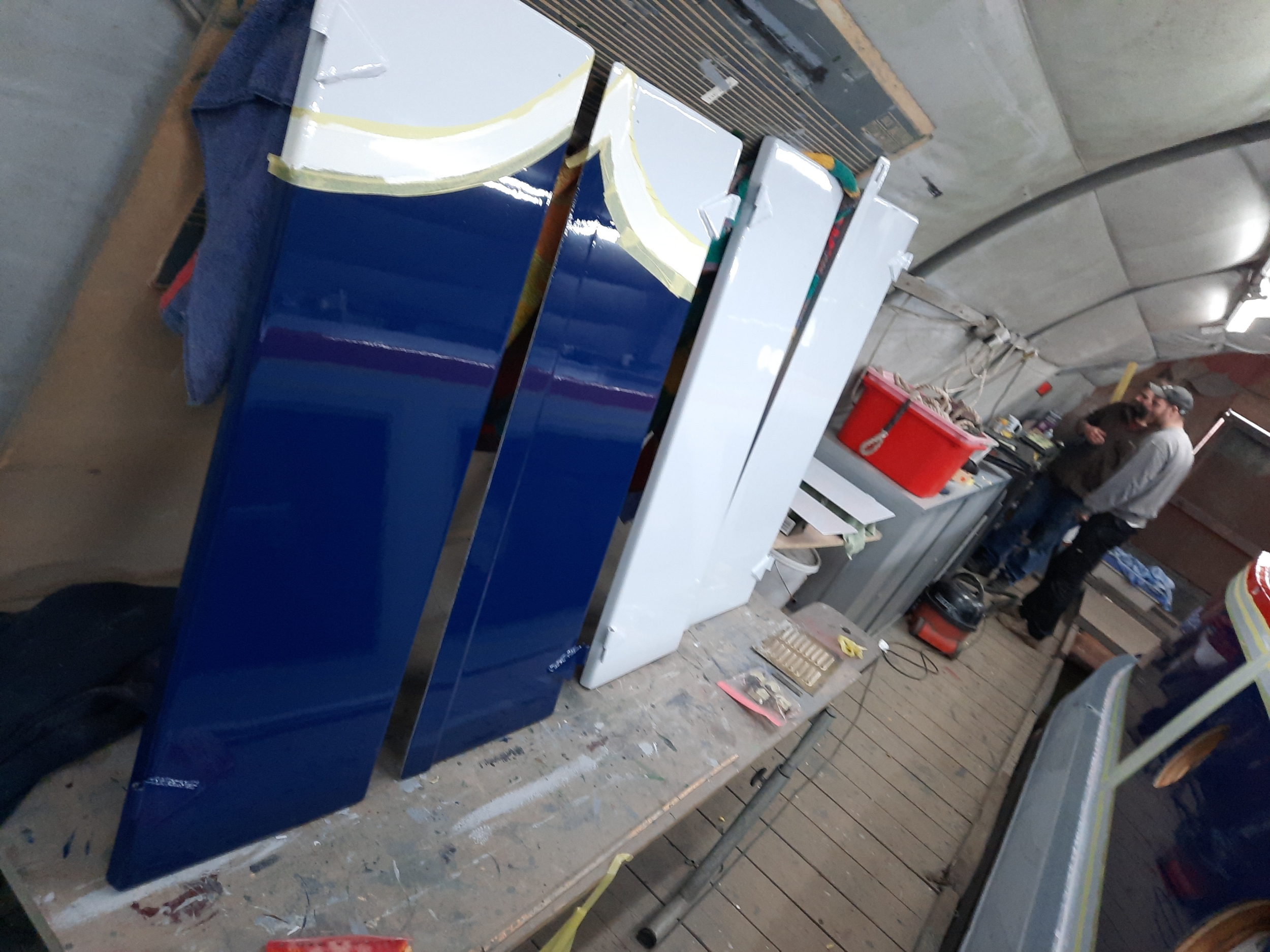

The very similar door detailing.

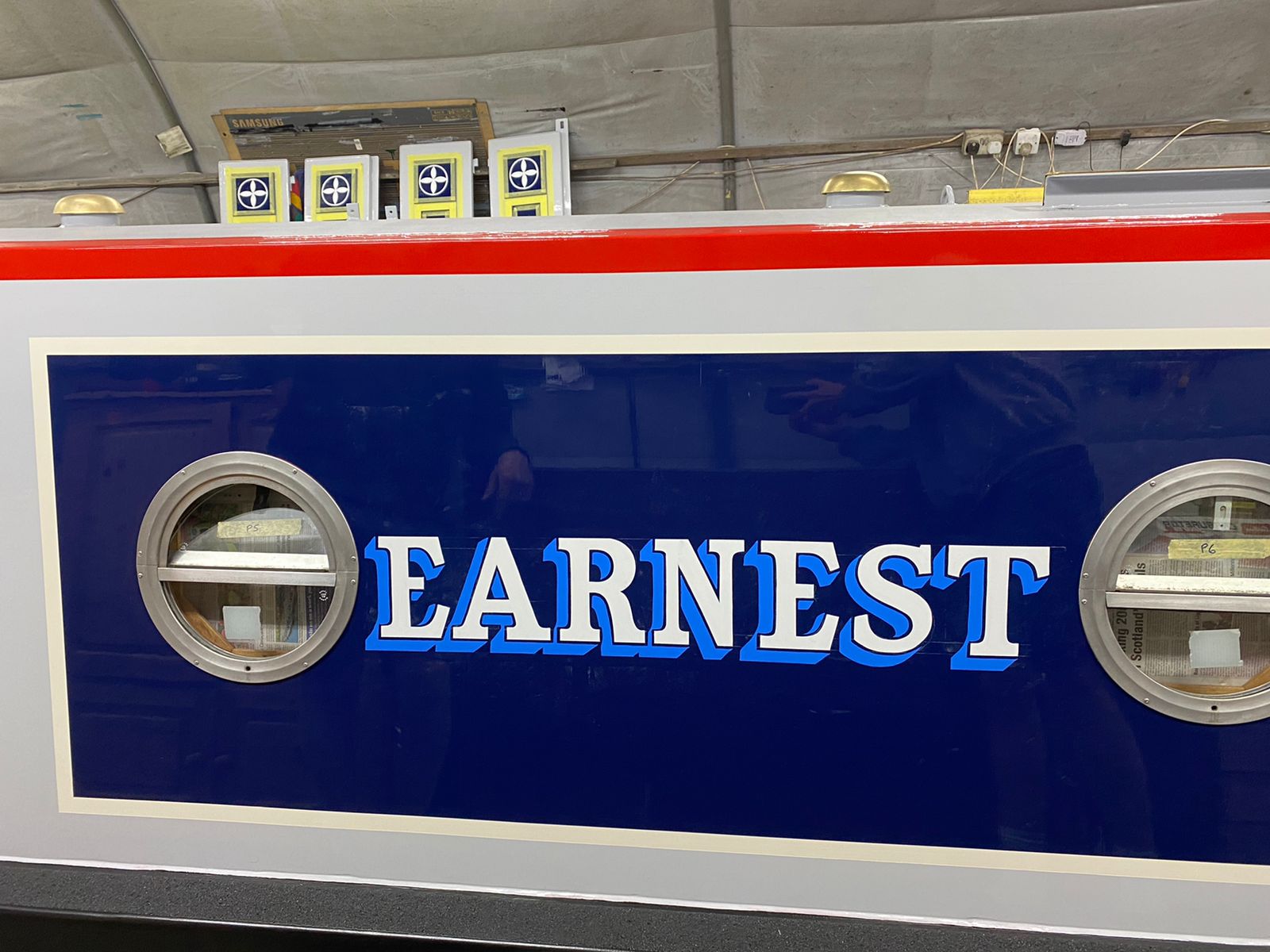

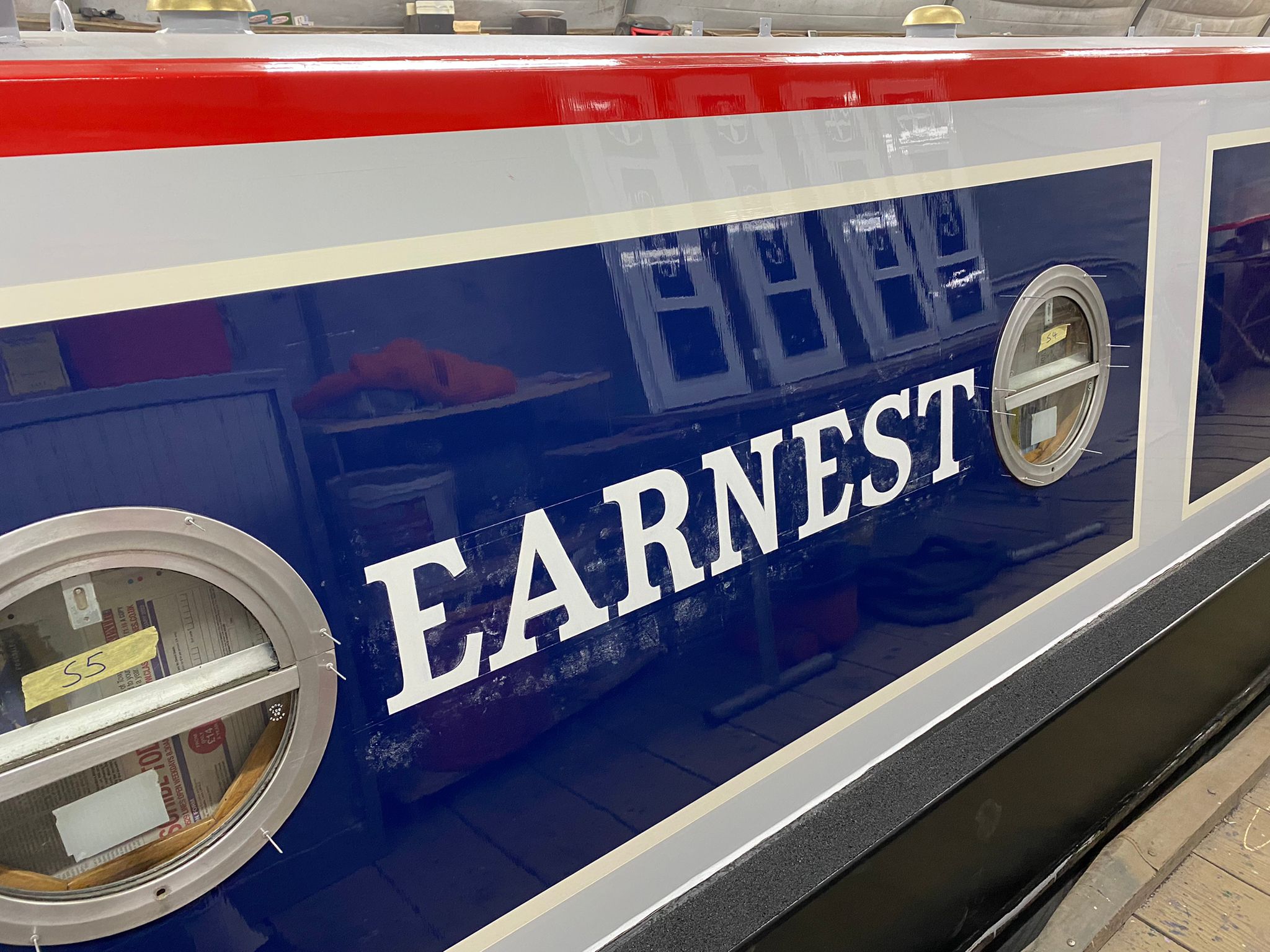

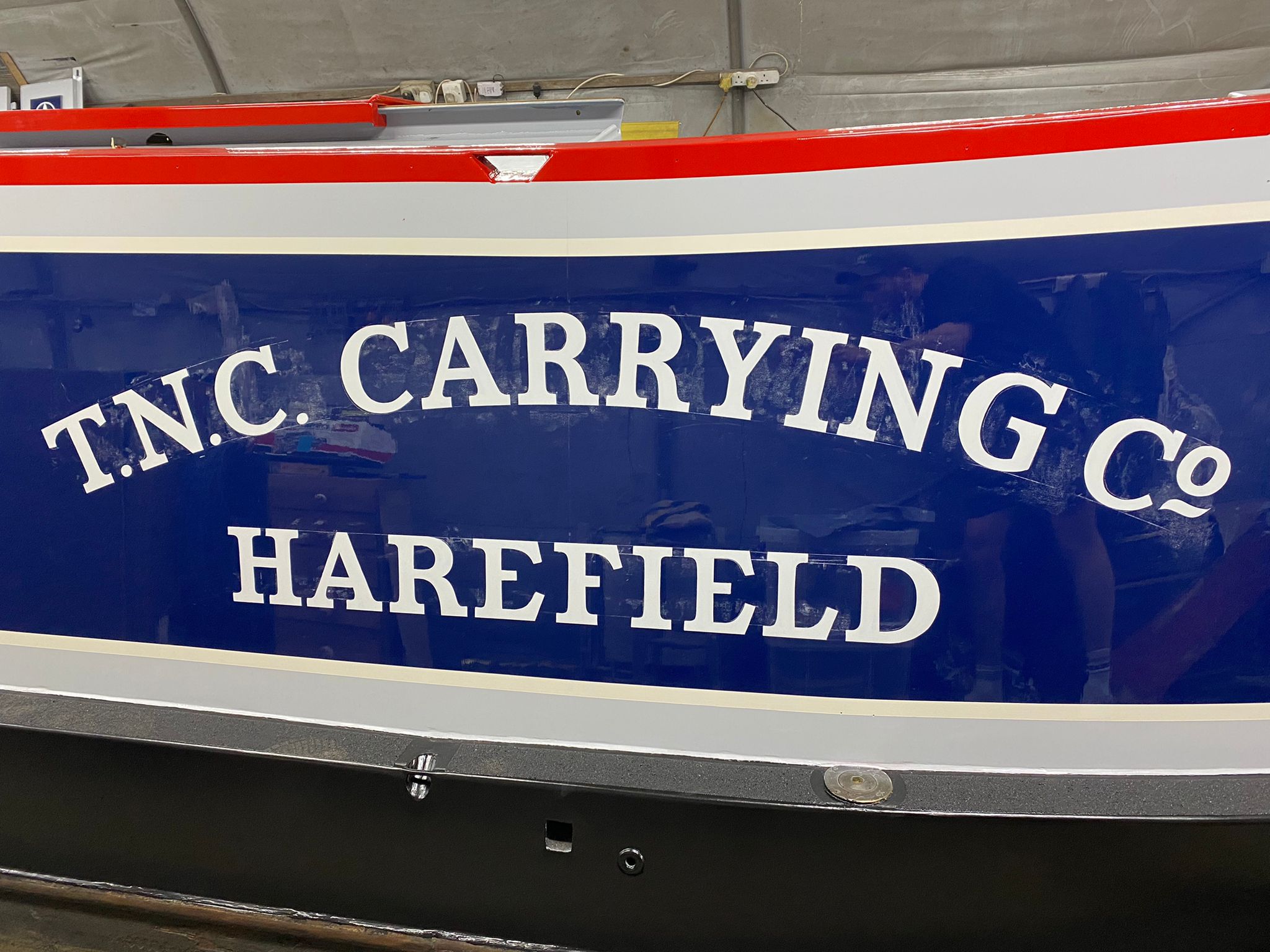

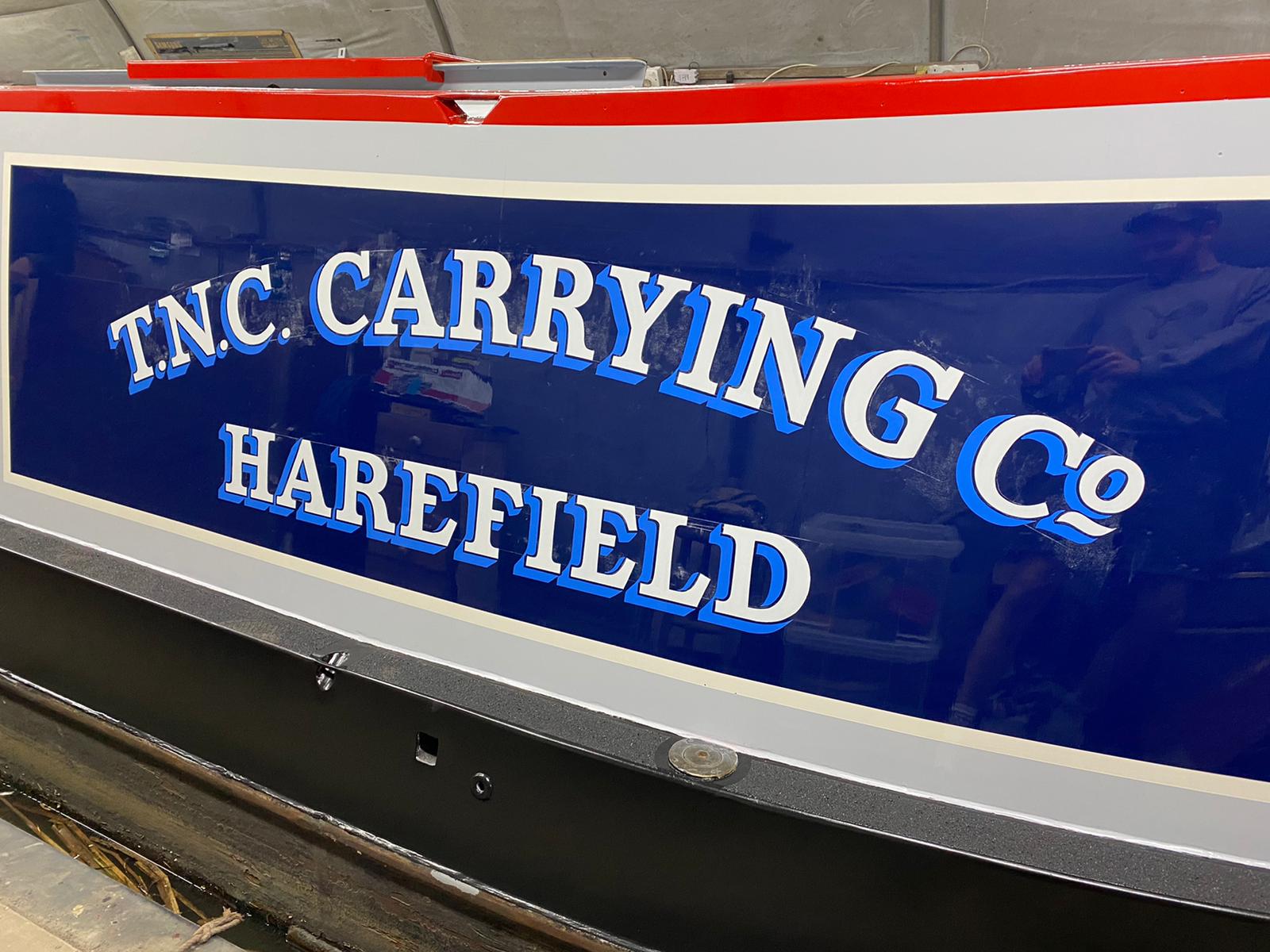

New writing, subtle difference, "Harefield" in same script, before it was in
smaller simple script.

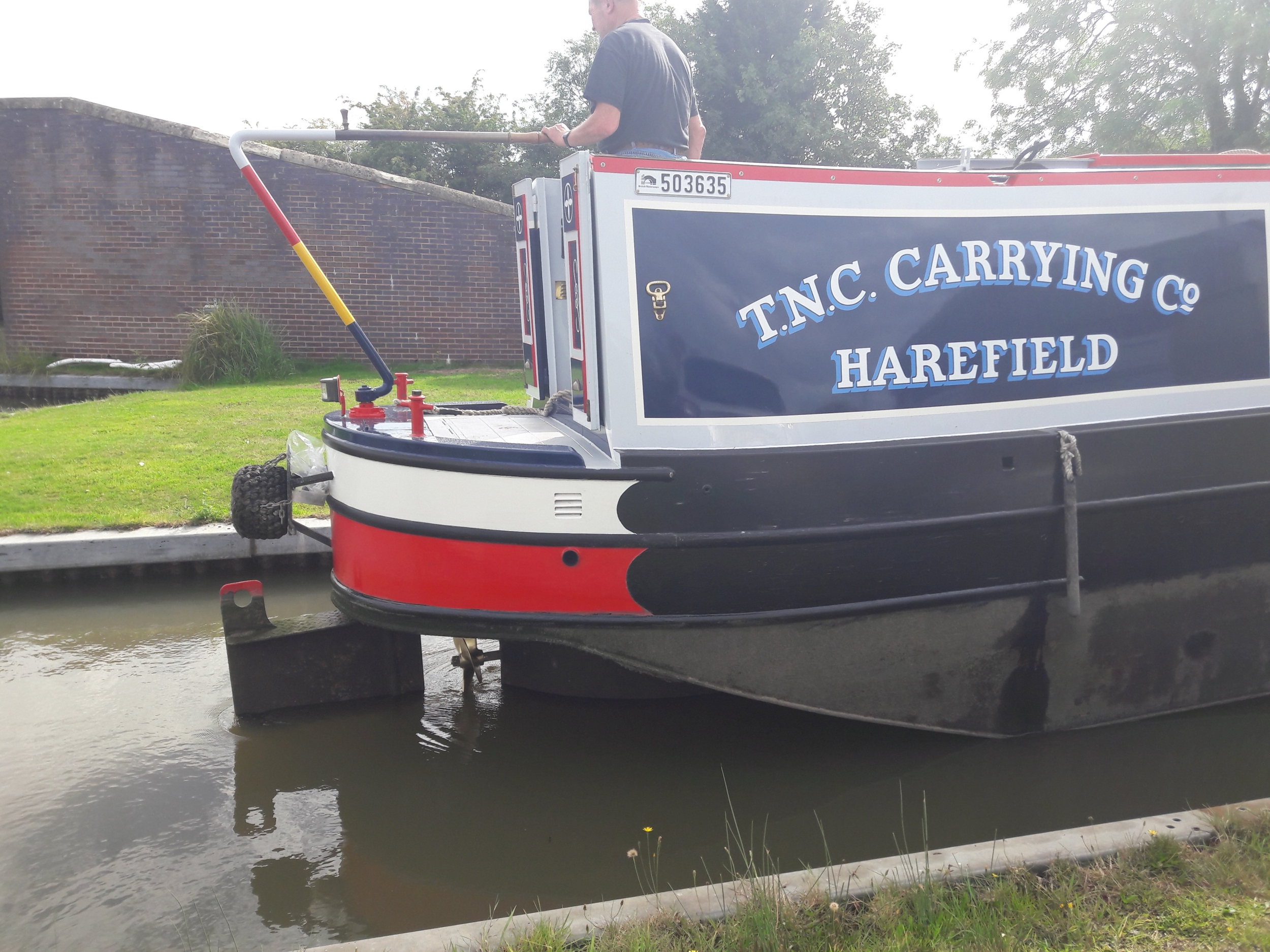

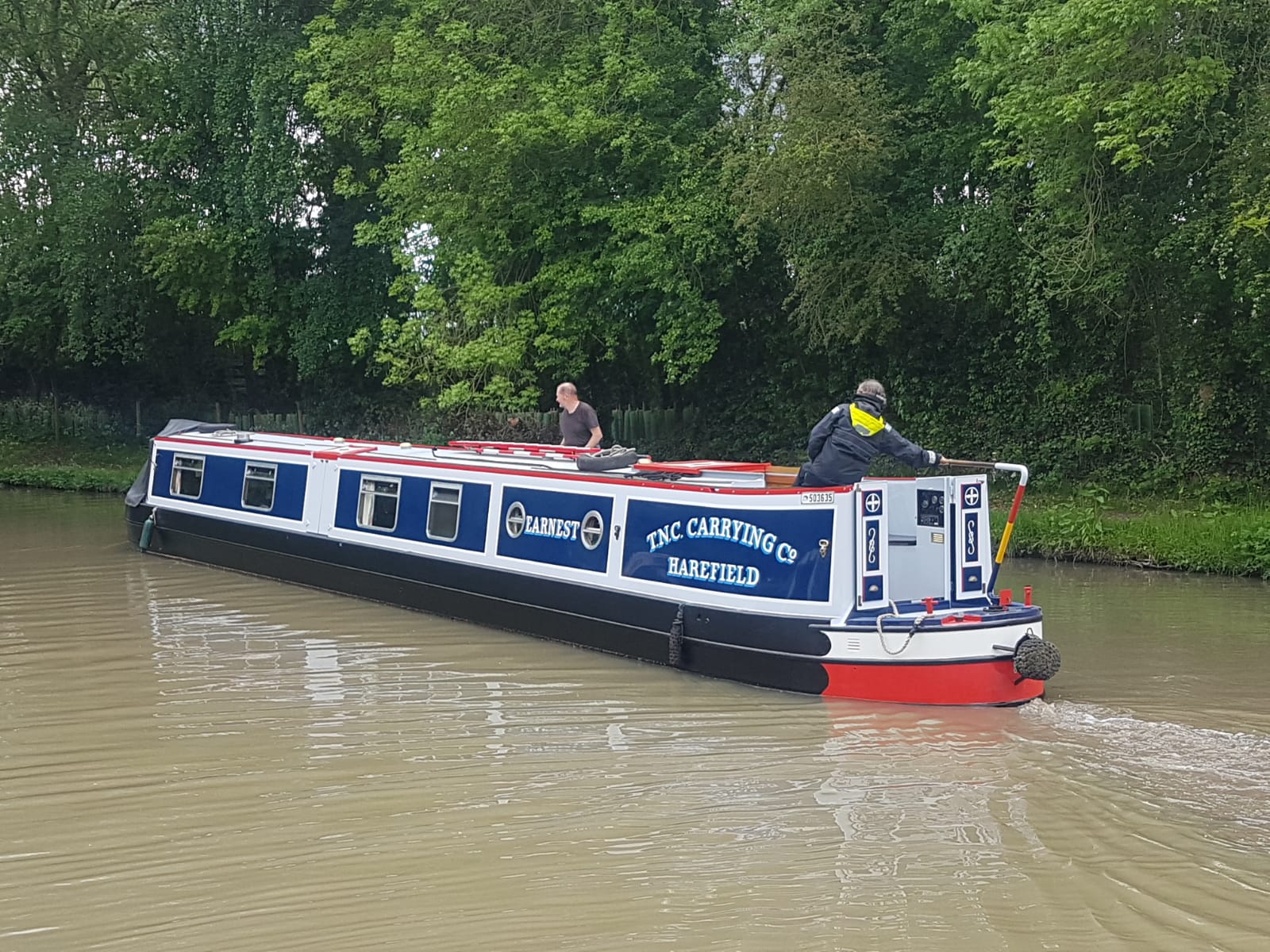

Leaving Wykin Bridge, start of 2022 Tour.

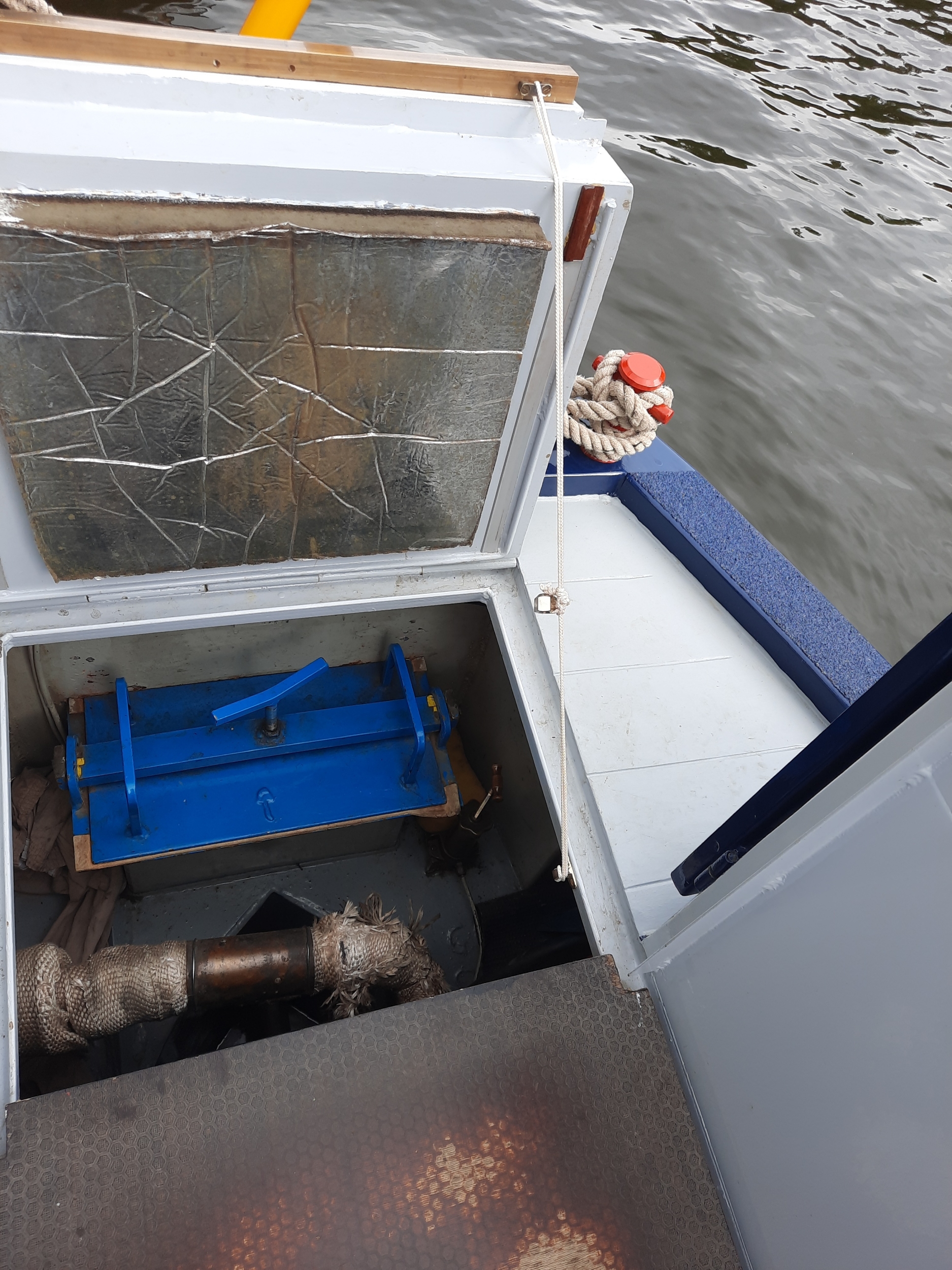

New outer weed hatch check strap.

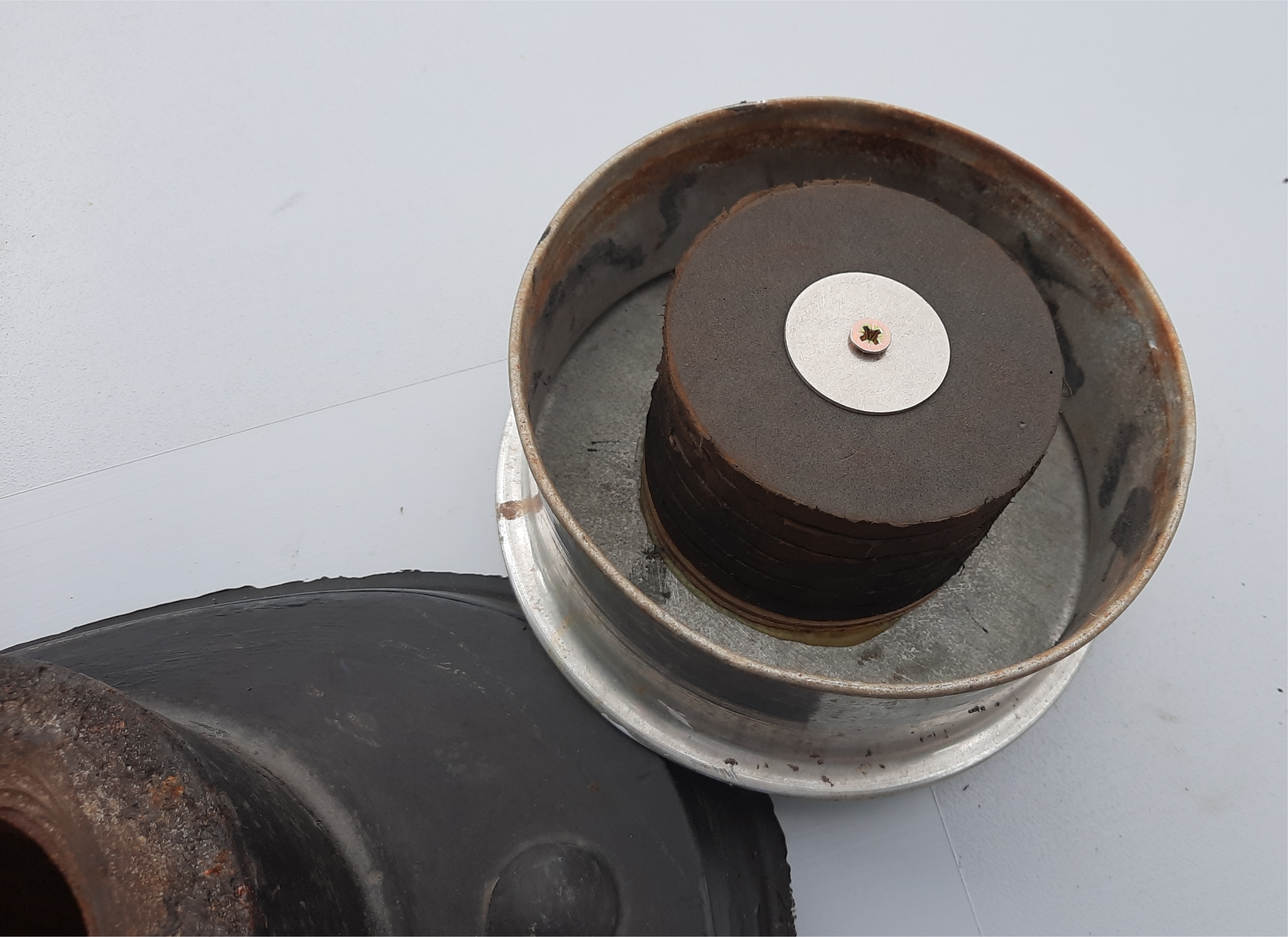

Insulated stove boss bung / cap, to stop condensation in flue.
New shower pump outlet, the welded one dropped off!

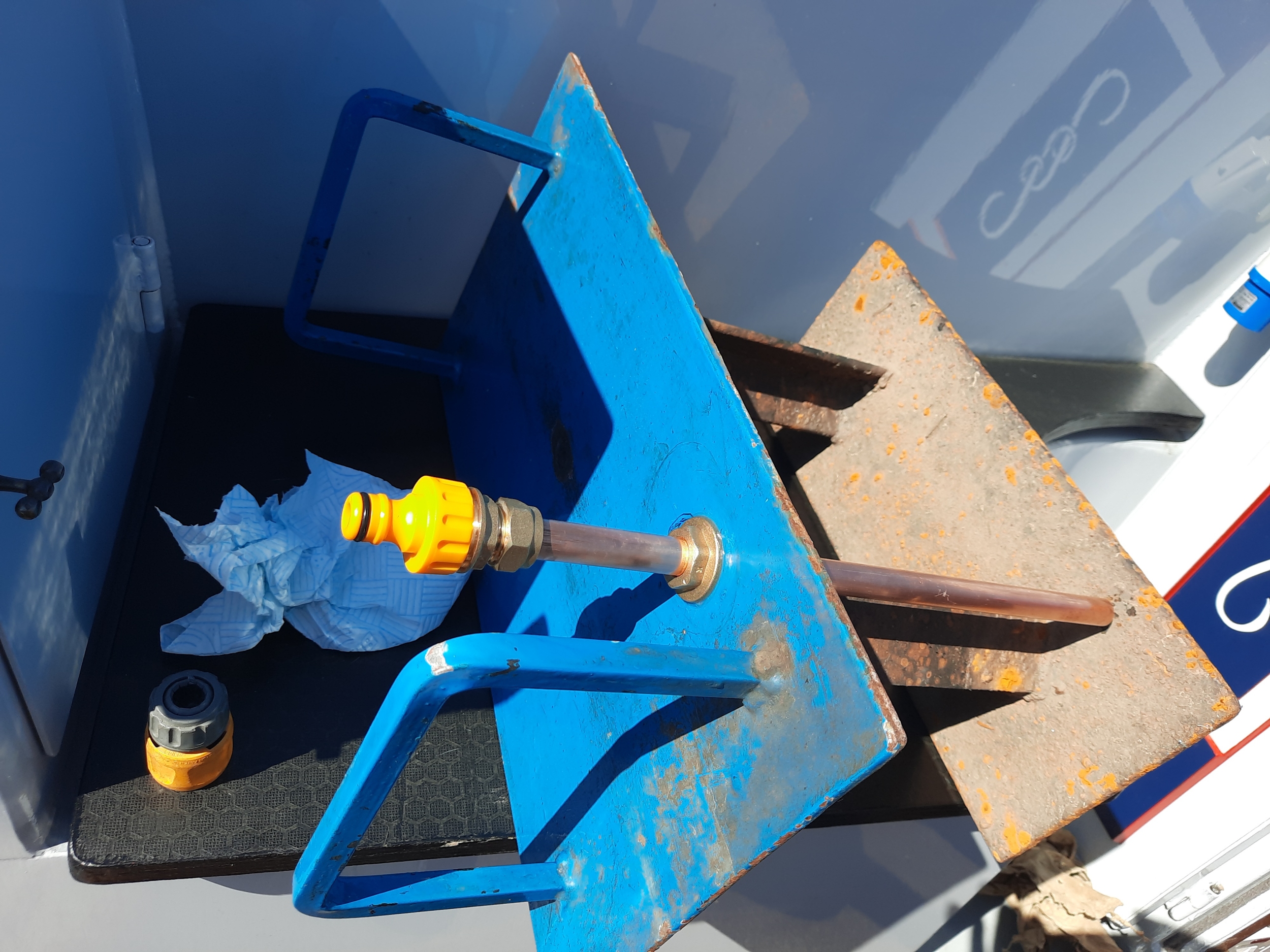

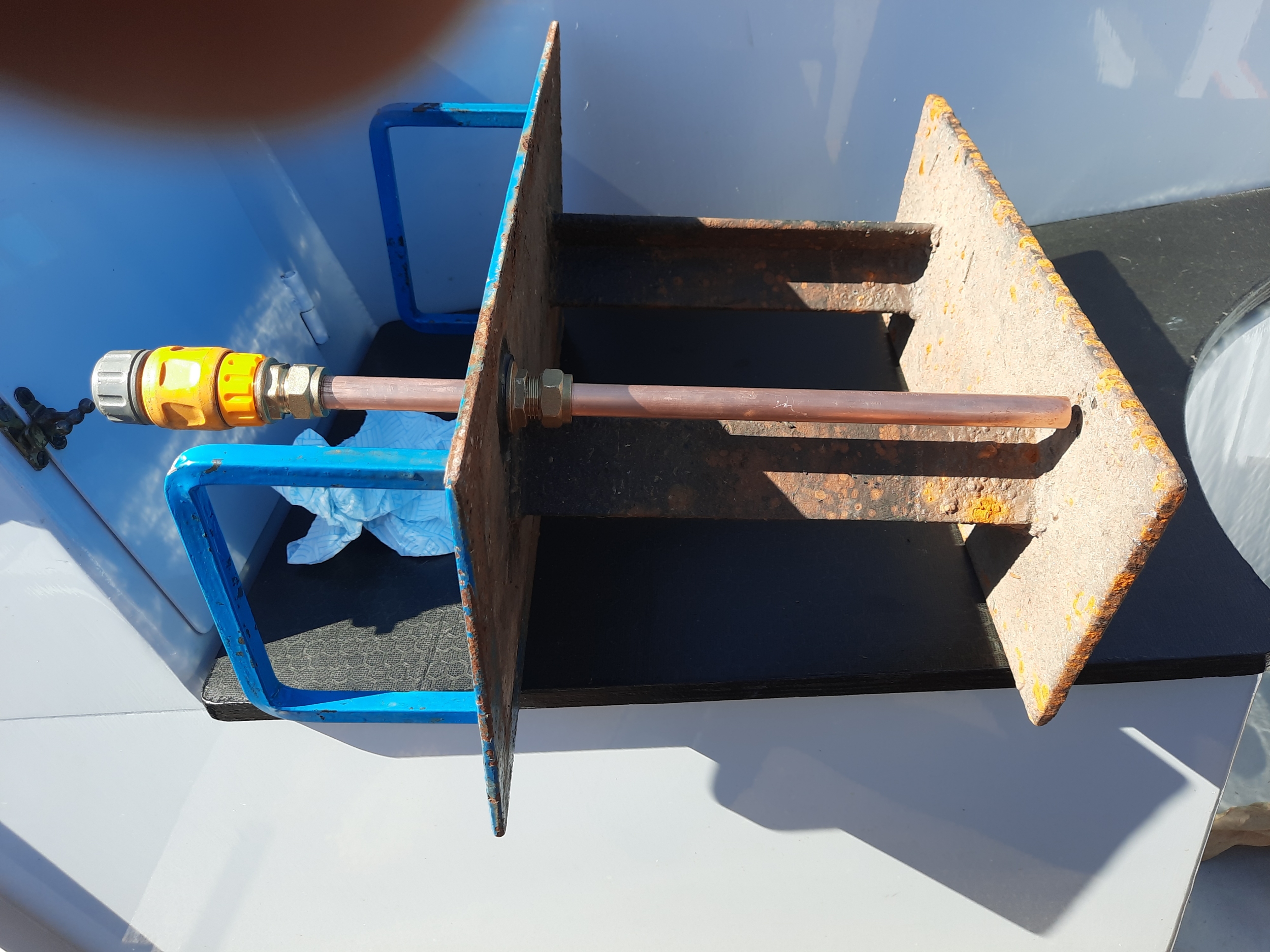

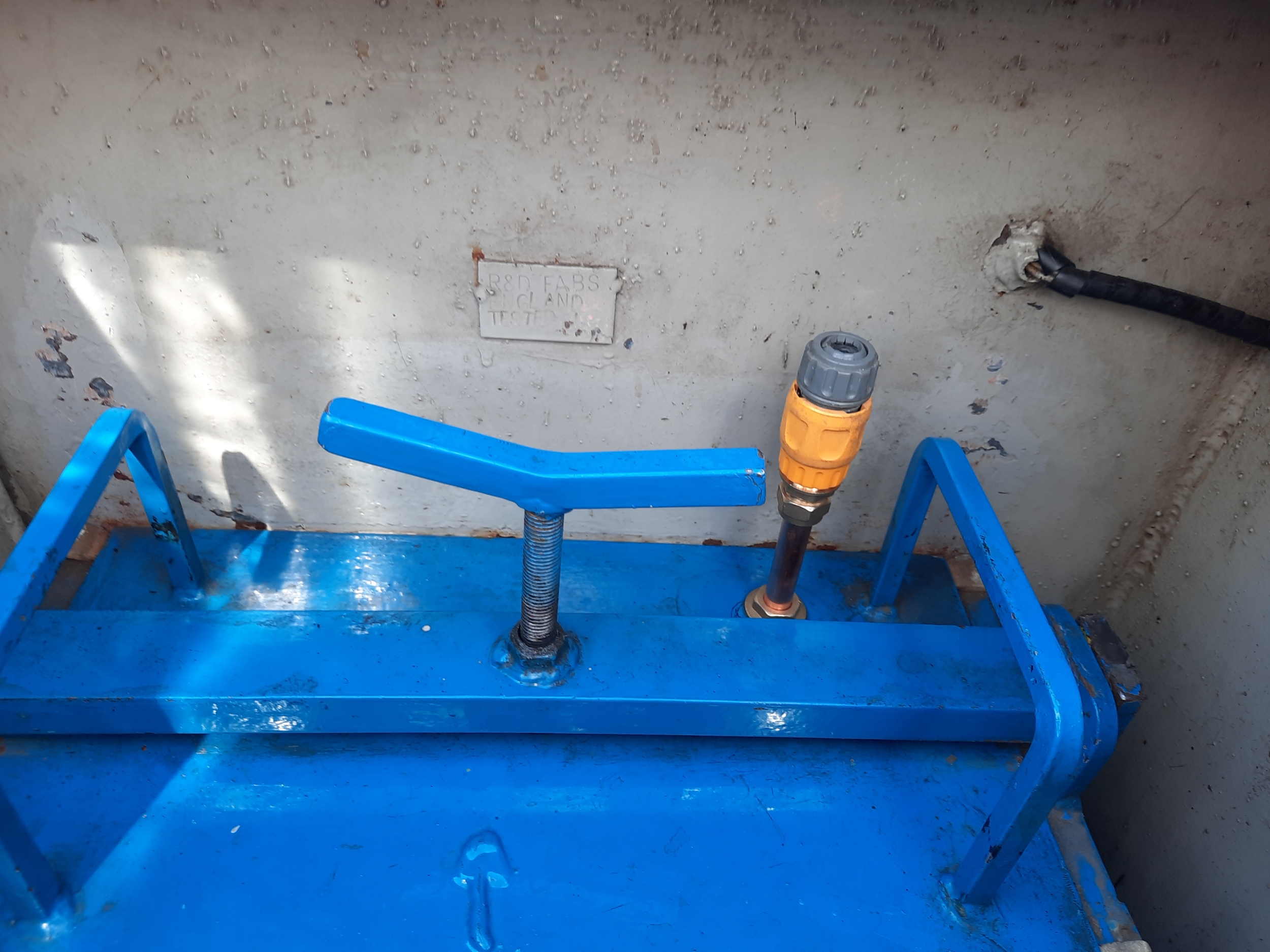

New raw water pick up for toilet flush, added after below water standpipe inlet
was welded up, picks up water from weed hatch box.
Quick release Hozelock connector for raw water pipe.

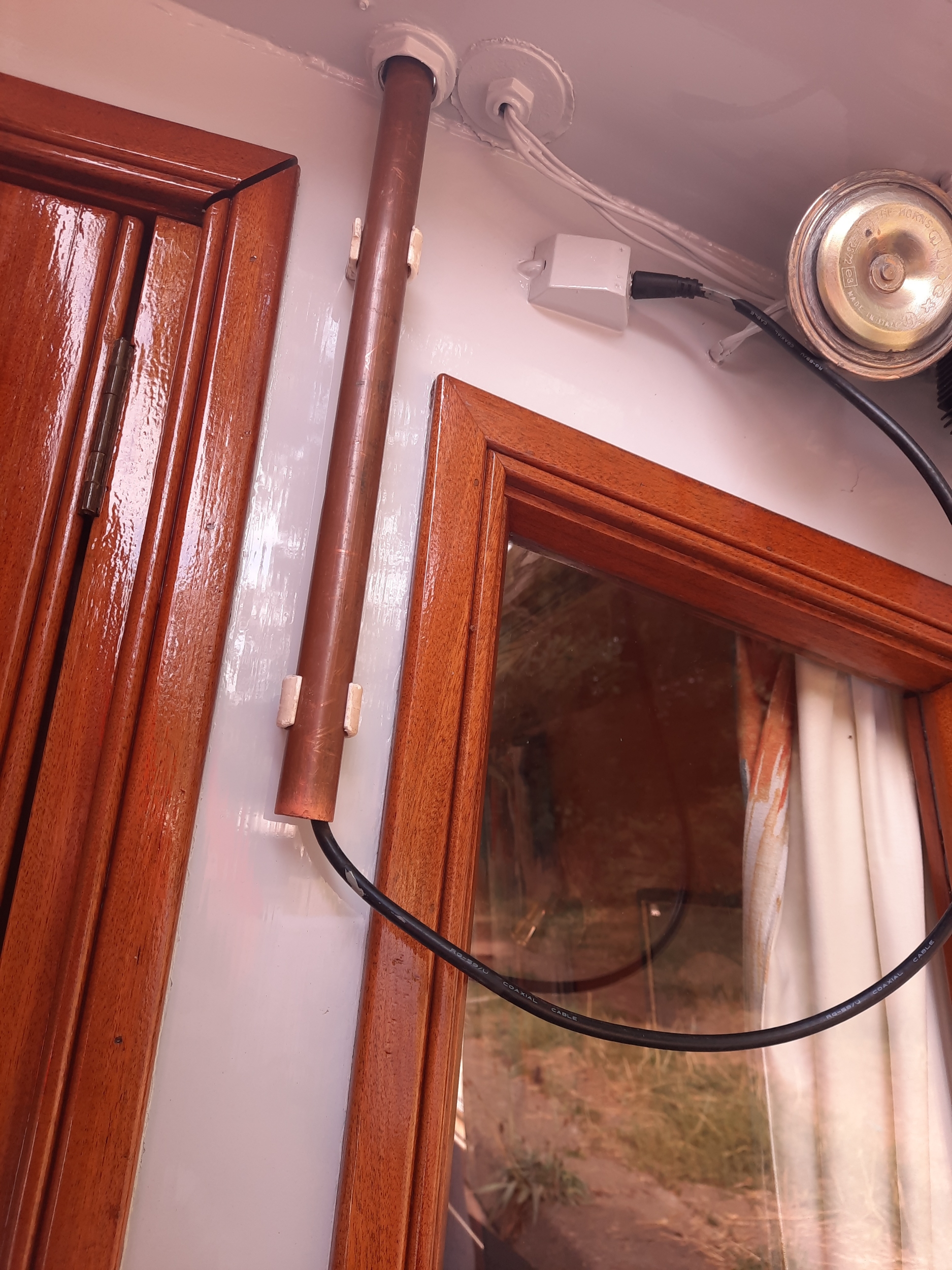

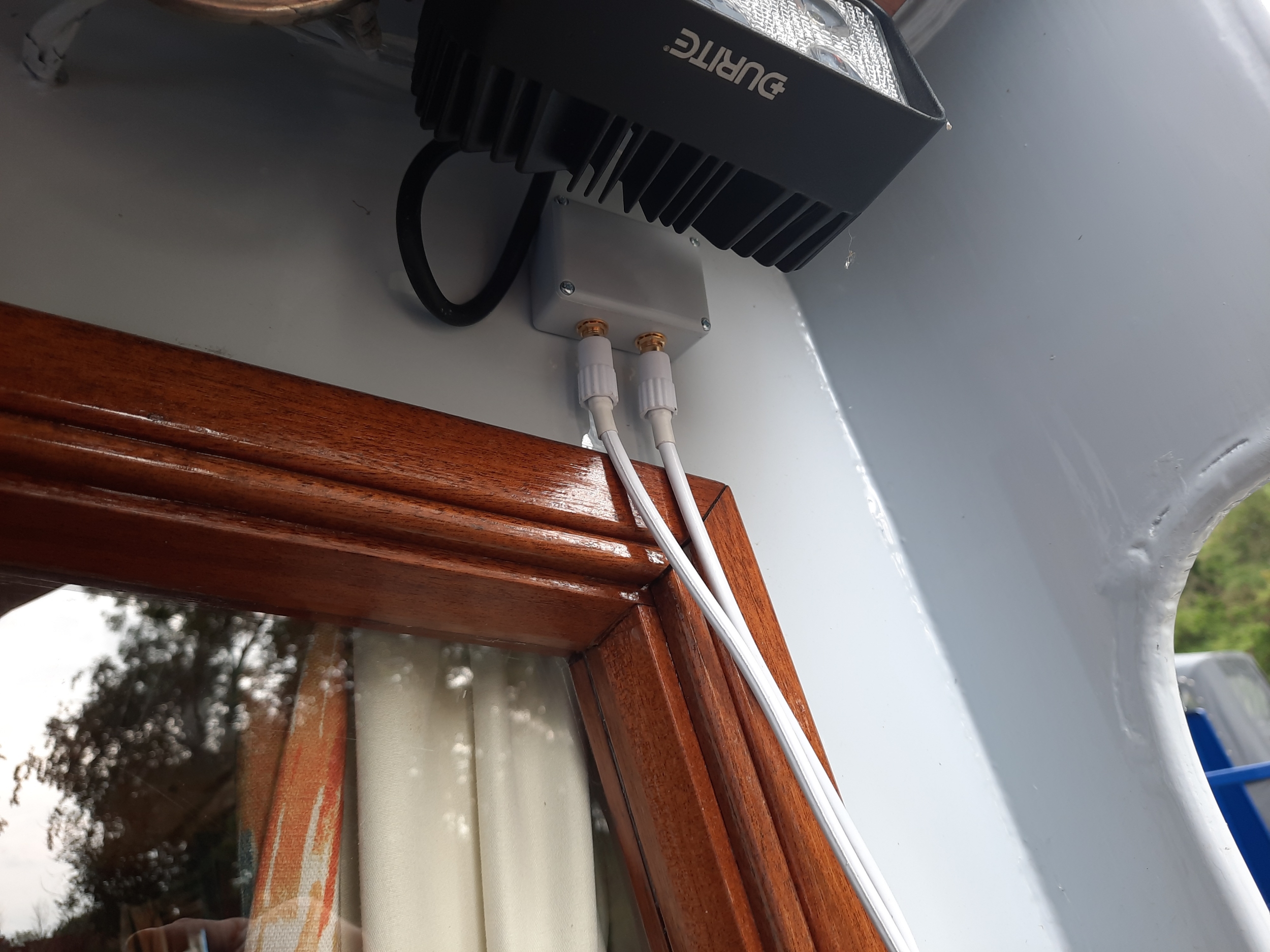

Moonraker TV aerial adaption, to fit 22mm copper pipe mast.
Moonraker TV aerial adaption, to fit 22mm copper pipe mast.

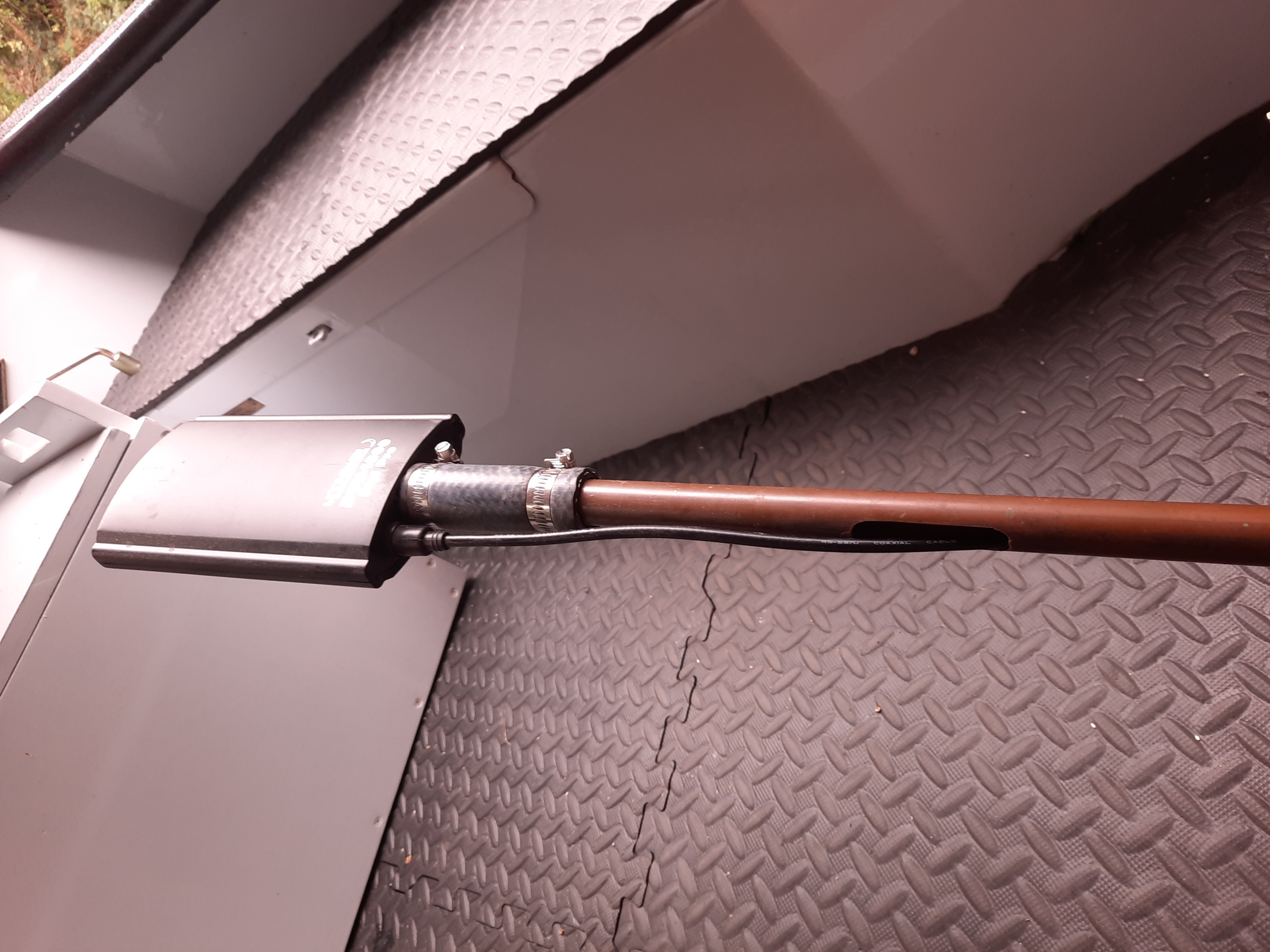

Similar aerial adaption for Poynting mobile aerial.

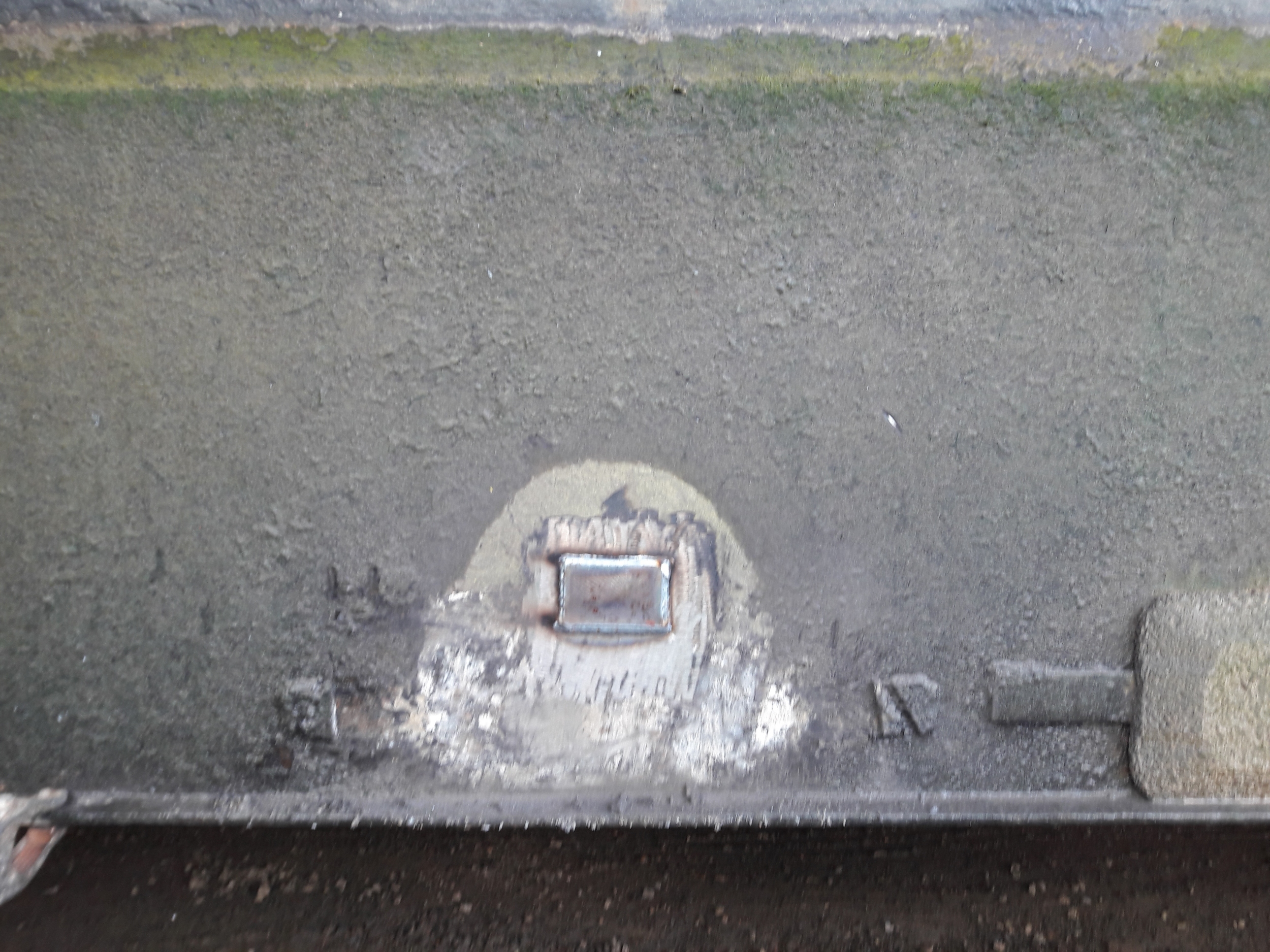

Old raw water intake welded up.

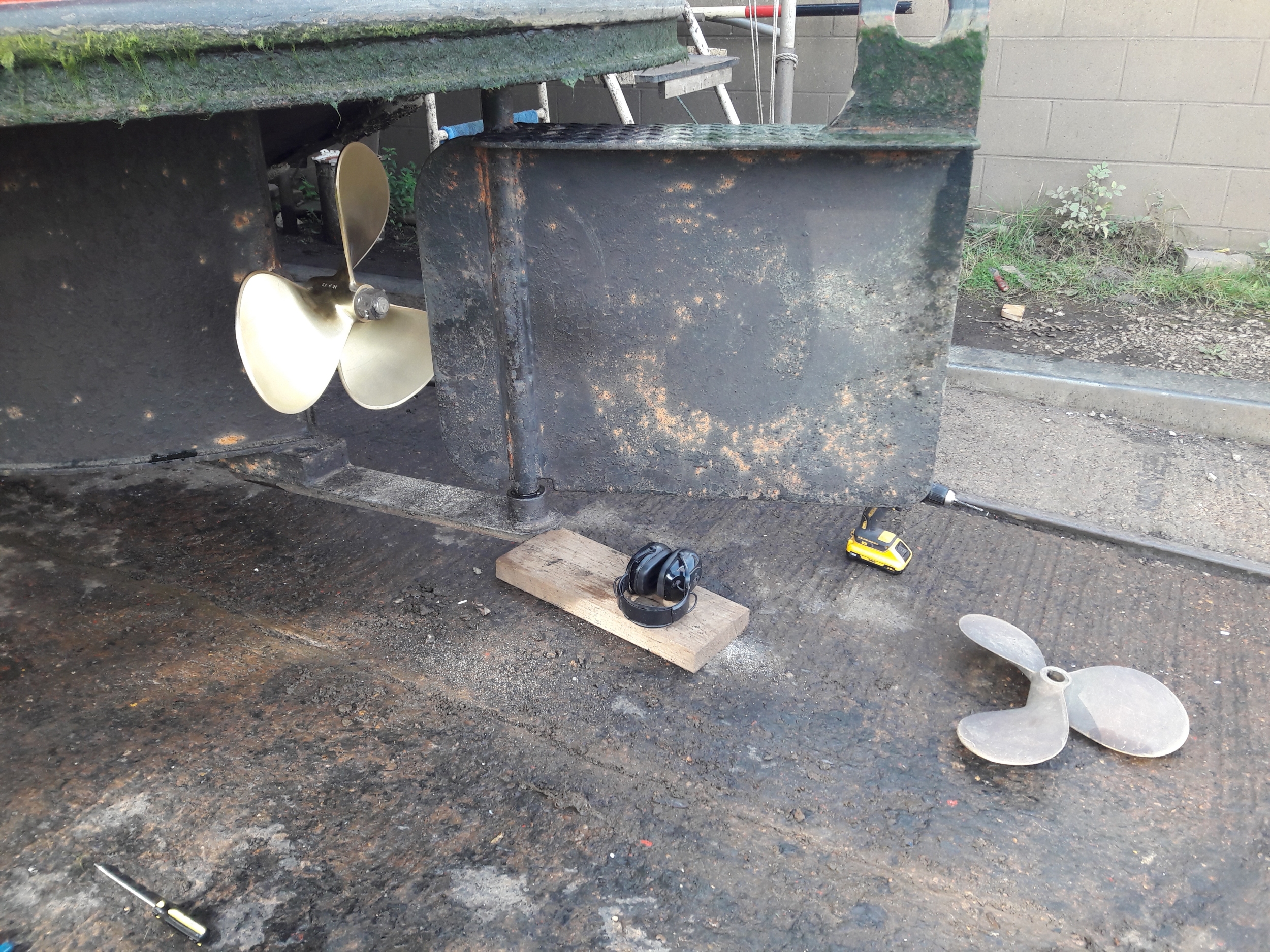

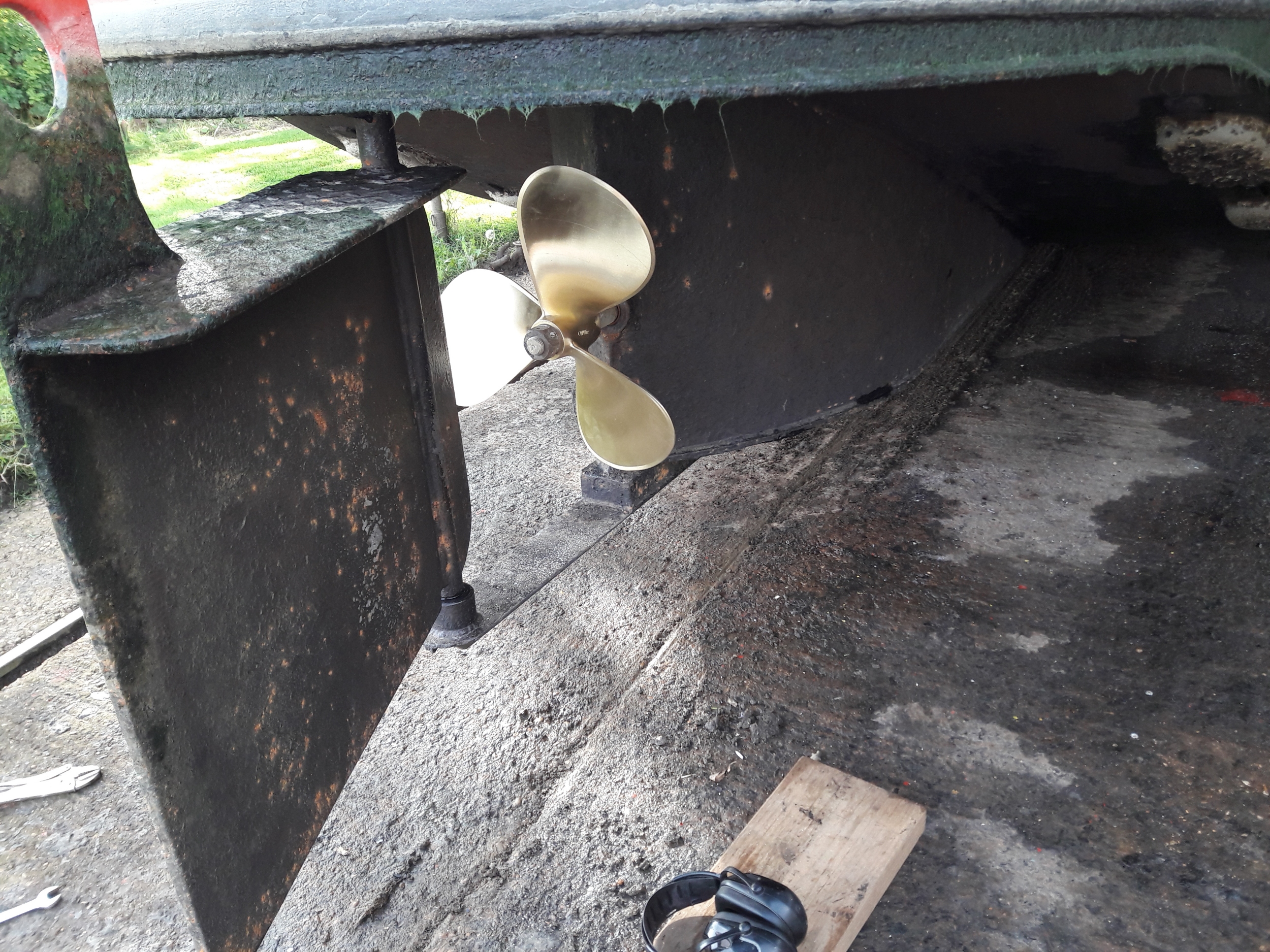

New Michigan Wheel Canal Line 18 x 13 prop.
